25 11 235 Replacing Bearing Bush For Shift Arm

25 11 235 Replacing Bearing Bush for Shift Arm

Remove shift arm.

This operation is described in the work step "Replacing shift arm for shift lever mount, please refer to: 25 11 211 Replacing Shift Arm For Shift-Lever Mount

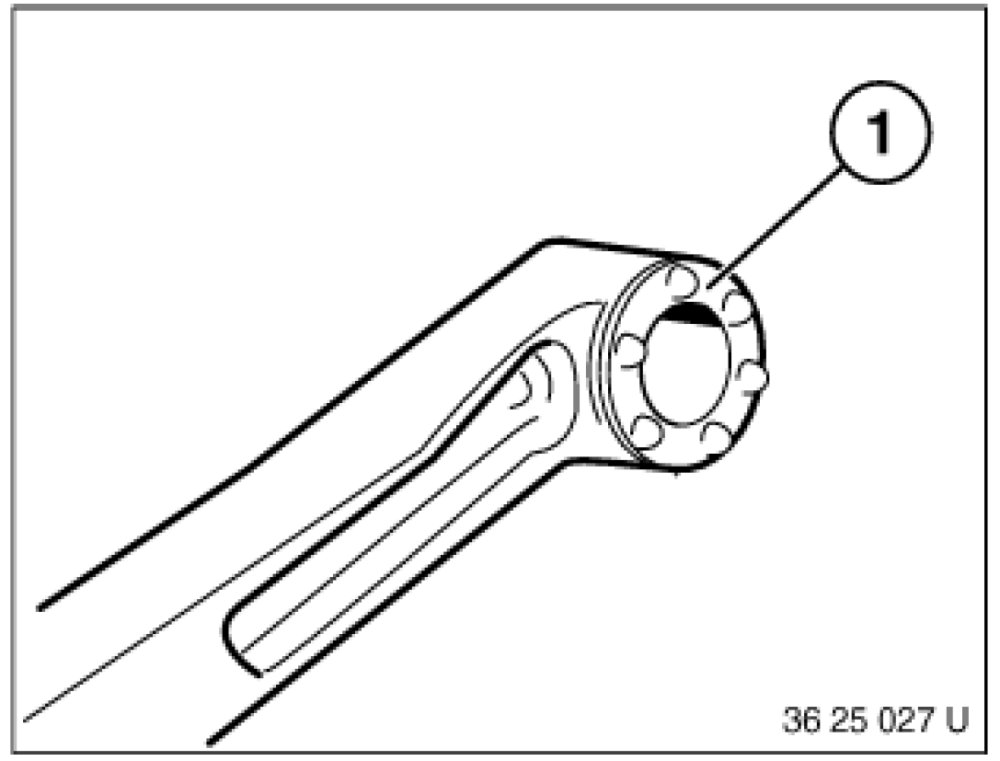

Press out bearing bush.

Coat new bearing bush with Circolight -83 19 9 407 771- and then press into shift arm until side flanges of bearing bush protrude uniformly.
