26 20 000 Removing and Installing Front Propeller Shaft

26 20 000 Removing and installing front propeller shaft

Important! Do not move car by means of engine power once drive shaft has been removed.

Necessary preliminary tasks:
^ Remove reinforcement plate.

Important notes on installation are described in this work step.

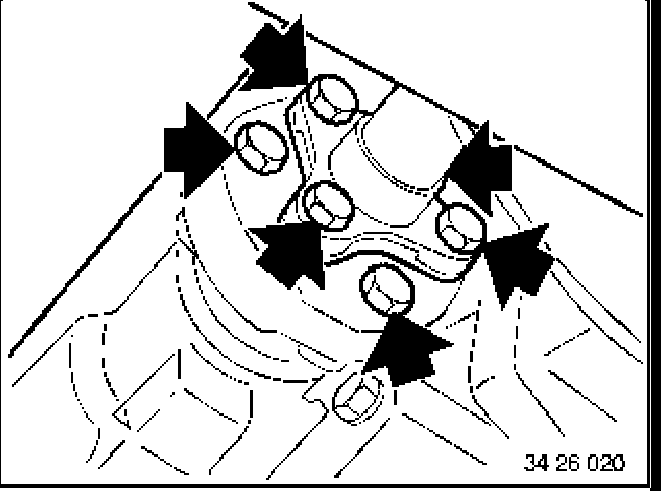

Unfasten screws.

Installation:
Replace self-locking nuts.

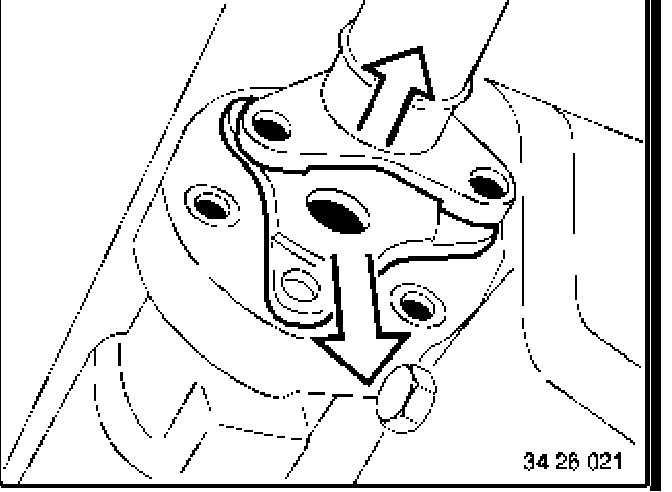

Push propeller shaft back.
Remove flexible disk with centering flange.

Note: Check sealing ring and replace if necessary.

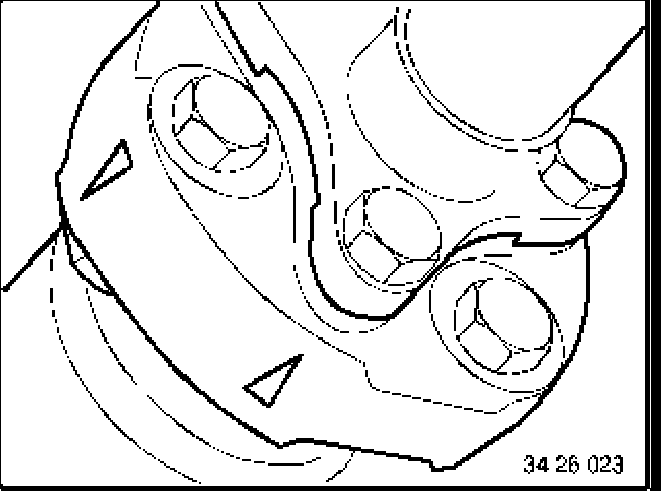

Note: Fit flexible disk must in such a way that arrows point to flange arms.

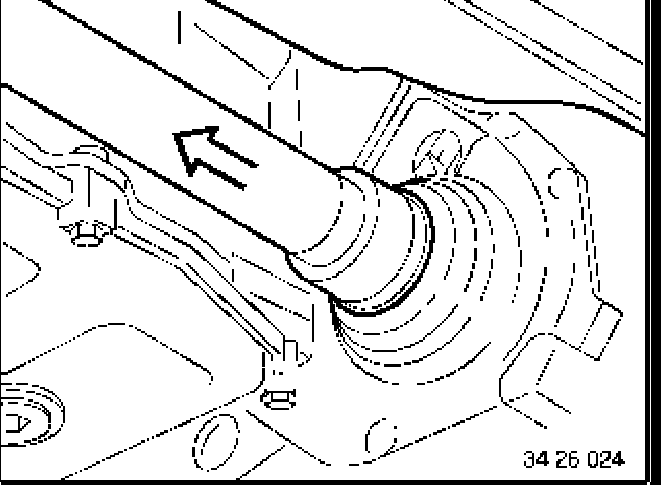

Detach propeller shaft from transfer box.

Note: Apply a thin coat of grease to splines.
Grease: WEICON ANTISIZE.





Installation:

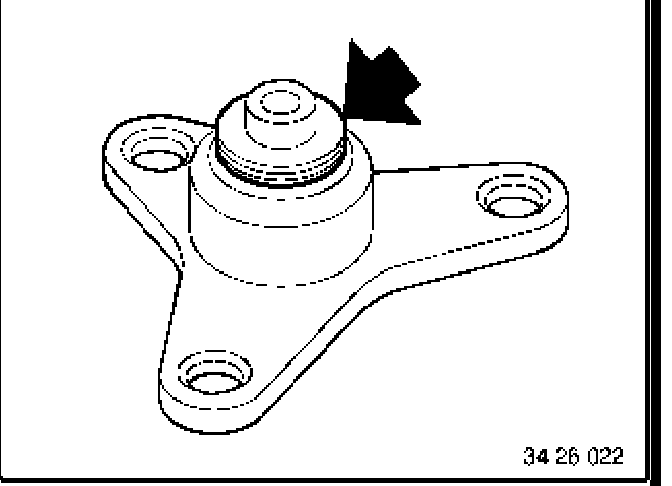

Check centering mount (1).
Replace a damaged centering mount.
Grease centering mount.
Grease
Refer to BMW Service Operating Fluids.
