Companion Flange: Service and Repair
26 11 051 Replacing joint disk for propeller shaftRemove propeller shaft,
refer to 26 11 000.

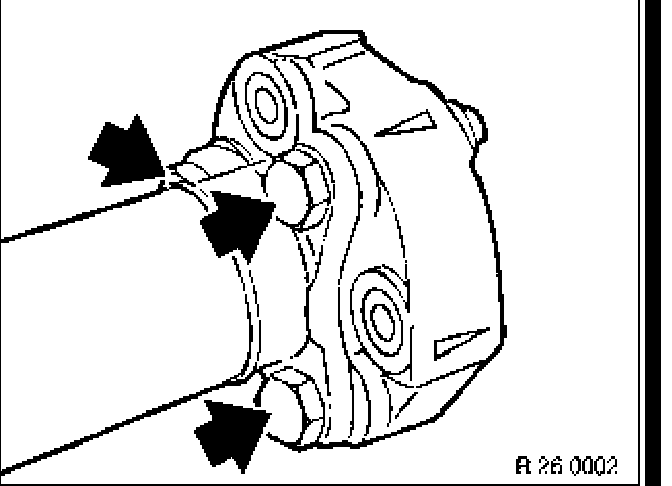

Unfasten screws and remove joint disk.
Installation:
The screw connection may only be tightened by means of the nut.
Installation:

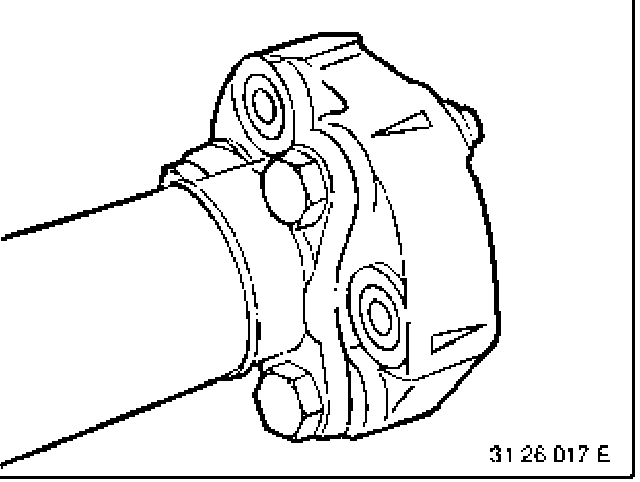

Joint disk must be fitted in such a way that arrows point to flange arms.
