Replacing Radial Shaft Seal For Drive Flange (NV125/ LWX-500 Transmission)

27 21 010 Replacing radial shaft seal for drive flange (NV125/ LWX-500 transmission)

Special tools required:
^ 00 5 500
^ 23 0 490
^ 27 1 360
^ 27 1 370

Important! After completion of work, check transmission oil level and top up if necessary.
Use only approved transmission oil for this transfer case.

Necessary preliminary tasks:
^ Remove transfer case.





Note: NV125 transmission only

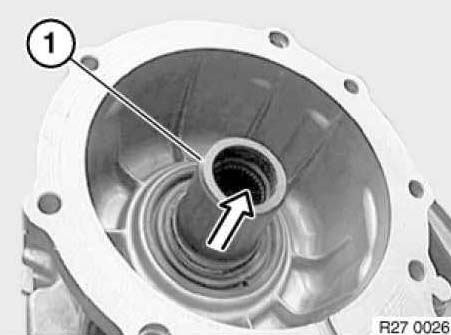

Remove shaft (1) (adapter) in direction of arrow.

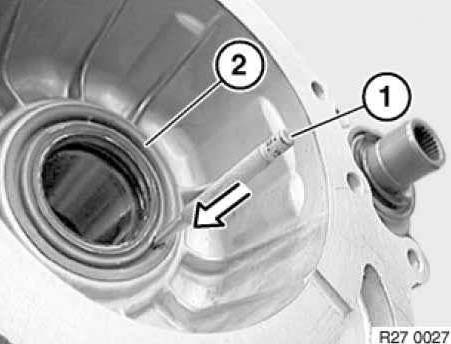

Drive a hole into radial shaft seal (2) using a center punch (1).

Important! Do not use a drill as drillings may result in transmission malfunction.

Note: Illustration shows NV125 transmission

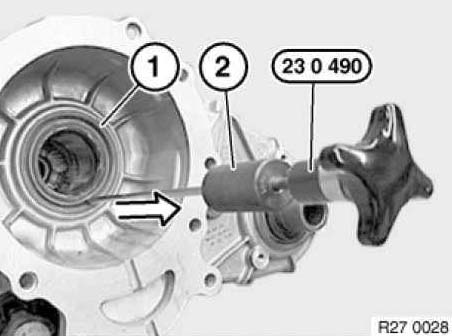

Install special tool 23 0 490.
Drive out radial shaft seal (1) with impact weight (2).

Note: Illustration shows NV125 transmission








NV125 transmission

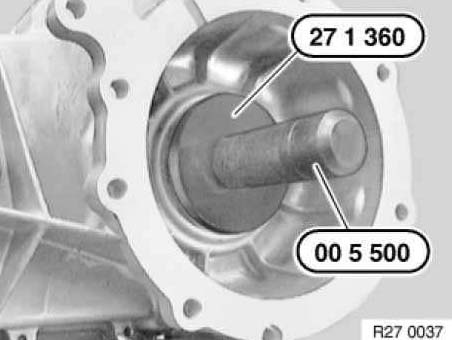

Drive in radial shaft seal with special tools 271360 and 00 5 500.





LWX-500 transmission

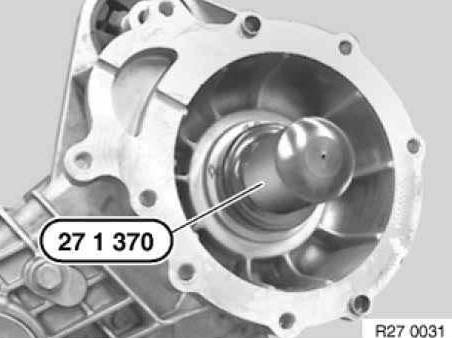

Drive in radial shaft seal with special tool 271 370.

Add final details to vehicle.
Check oil level.
Check transmission for leaks.
