Notes on Mechatronics (GA6HP26Z/6H P32Z/6H P1 9Z)

24 34 ... Notes on mechatronics (GA6HP26Z/6H P32Z/6H P1 9Z)

Special tools required:
^ 24 2 390

Important! After completing work:
- Load specific data version with DIS
- Check transmission fluid level
Use only approved transmission oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission!





Important! Mechatronics can be destroyed by static discharges. Therefore the contacts inside the plug must not be touched. Insert special tool immediately after work step.

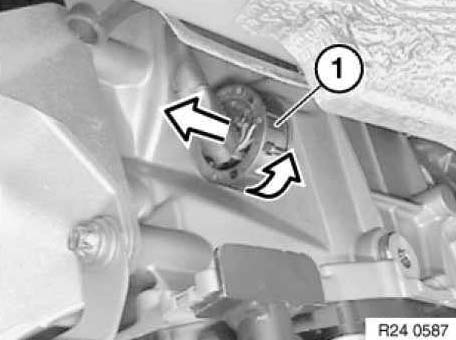

Unscrew plug (1) and disconnect.

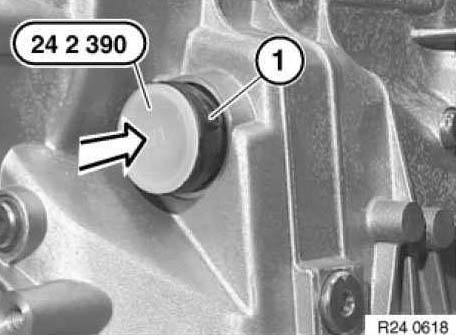

Insert special tool 24 2 390 in sealing sleeve (1).
