Replacing Rubber Mount For Transmission Mounting

Remove cross-member for transmission mounting.

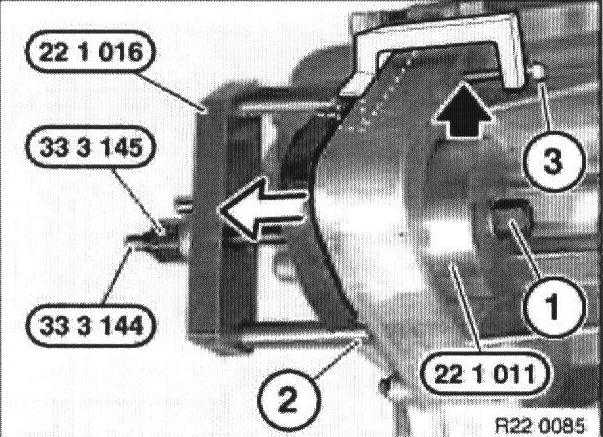

Position special tool 22 1 016 on opening (2) and twist in screw (3) hand-tight against housing.

Pull out rubber mount with special tools 22 1 011/33 3 144 and nut (1).

Nut (1) = nut M12 x 1.5 of rubber mount screw M12 x 1.5 x 220.





Installation:

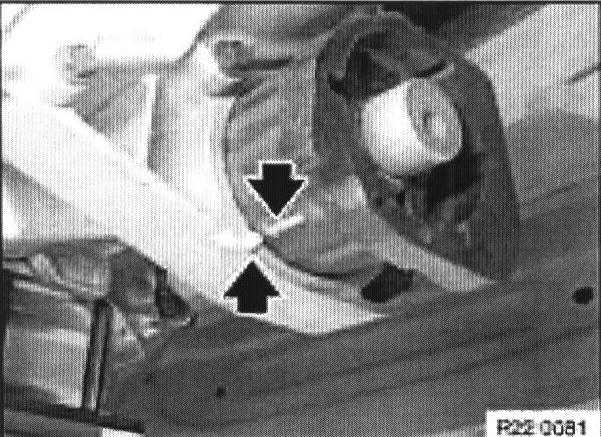

Arrow on rubber mount must point to arrow on housing.
Coat housing bore and rubber mount with Circolight rubber lubricant.

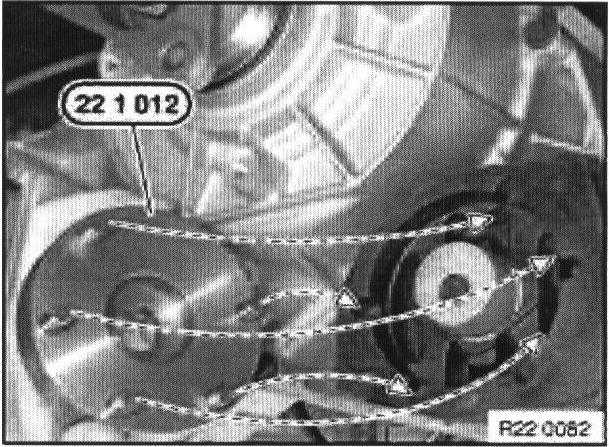

Insert special tool 22 1 012 with pin into openings in rubber mount.

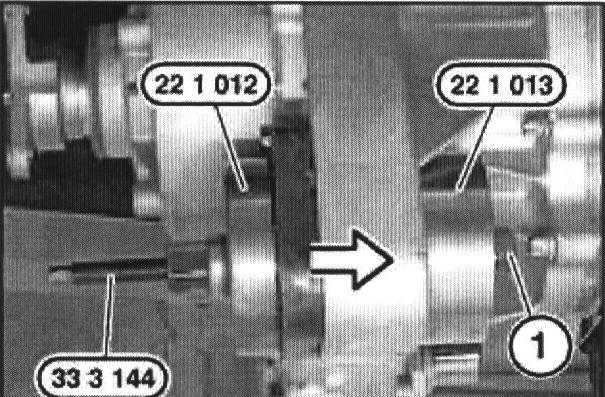

Pull in rubber mount with special tools 22 1 012/22 1 012/013 and 33 3 144.

From rubber mount screw M12 x 1.5 x 220, use nut (1) M12 x 1.5.
