Shift Interlock Cable: Service and Repair

Removing And Installing/replacing Interlock Cable

Caution:
After installation, check Interlock function.

Lift off shift lever cover and unfasten Interlock cable from shift tower.
Connect new Interlock cable to old cable with wire or a cord.

Installation:
Adjust Interlock cable.

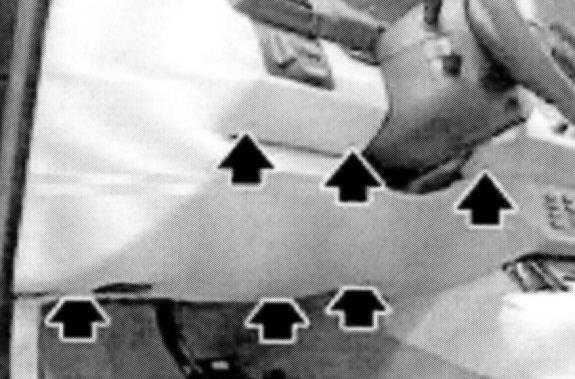

Unfasten screws.
Disconnect plugs from gong and On-Board Diagnosis.
Remove instrument panel trim.
Remove lower section of steering column trim.

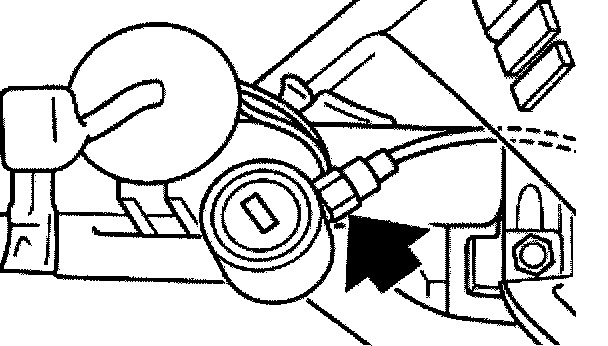

Unfasten Interlock cable on steering lock and remove, inserting new Interlock cable at the same time.
