Replacing Selector Shaft Seal (GA6HP26Z/6H P32Z)

24 14 001 Replacing selector shaft seal (GA6HP26Z/6H P32Z)

Special tools required:
^ 24 5 361
^ 24 5 362
^ 24 5 364
^ 24 5 366

Important! After completion of work, check transmission oil level.
Use only the approved transmission fluid.
Failure to comply with this requirement will result in serious damage to the automatic transmission!





E65/N62 only:
Unfasten screws.

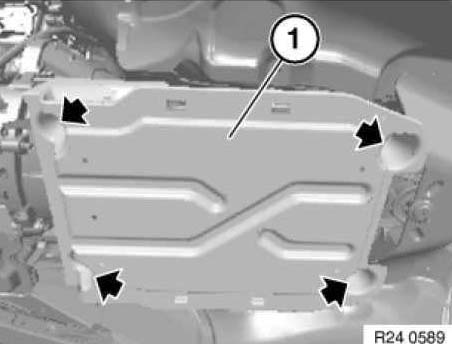

Remove transmission underguard (1).
Remove left oxygen sensor.
E60/ E63/ E64, N62 only:
Remove rear underbody protection.
Remove left oxygen sensor (N62 only).





Note:
E65 only:
Unfasten nut.
Remove cable (1).

Installation:

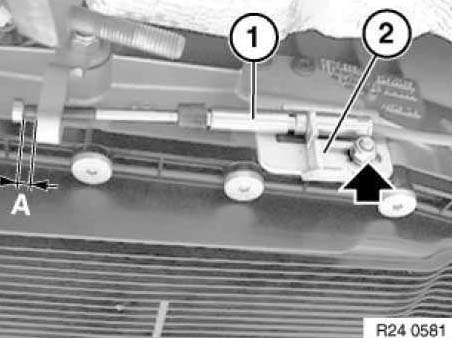

Adjusting cable:
- Release nut
- Adjust cable by means of holder (2)
Distance A > 1 mm.





Note:
E60/ E63/ E64, E53 only:

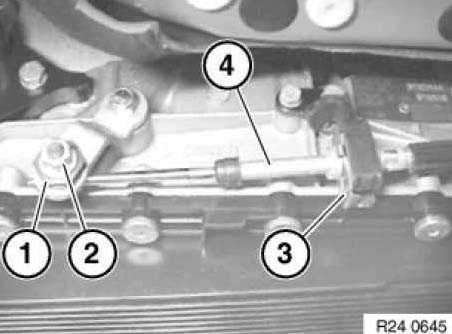

Grip clamping sleeve (1) and slacken nut (2).
2AZ Clamping screw on shift lever 10 Nm
Detach retainer (3) towards bottom using a screwdriver.
Pull cable (4) out of holder.

Installation:
Adjust selector lever.

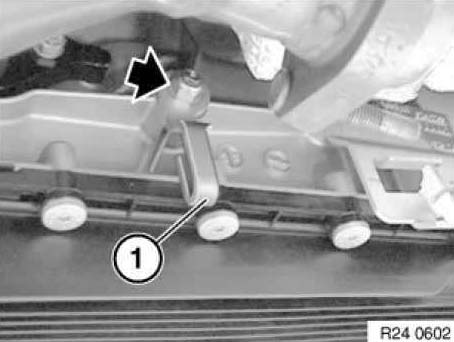

Unscrew screw.





Take off holder (1).
Tightening torque: M8X1 10 Nm.

Note: Illustration shows E65.

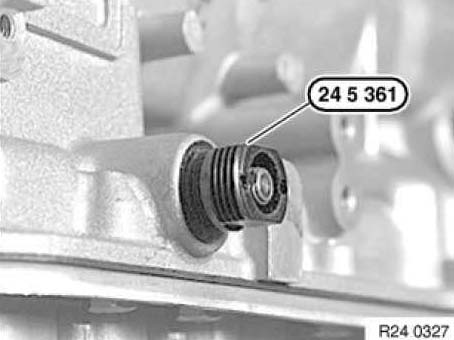

Screw in special tool 24 5 361 until it is firmly connected with shaft seal.

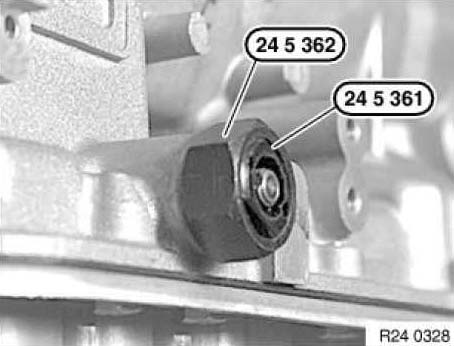

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.
This pulls the shaft seal out of the transmission housing.





Oil sealing lip on shaft seal (1).

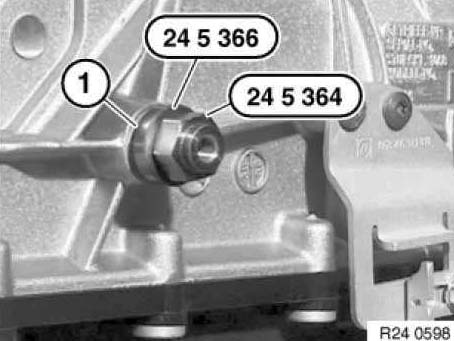

Screw in shaft seal (1) with special tools 24 5 366 and 24 5364 as far as it will go.
