Replacing Radial Shaft Seal For Torque Converter (A5S 360R / 390R, A4S 200R)

24 12 009 Replacing radial shaft seal for torque converter (A5S 360R / 390R, A4S 200R)

Special tools required:
^ 00 1450
^ 00 2 550
^ 00 5 010
^ 24 0 180
^ 24 4 000

Necessary preliminary tasks:
^ Remove automatic transmission.

Important! After completion of work, check transmission fluid level.
Use only the approved transmission fluid in this automatic transmission.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

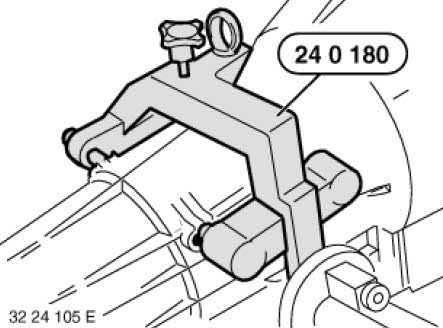

Secure transmission with special tool 24 0180 to assembly stand 00 1450.

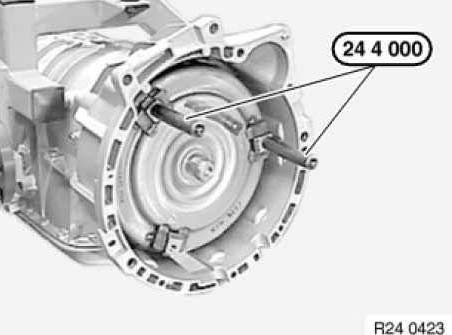

Screw special tool 24 4 000 into torque converter.

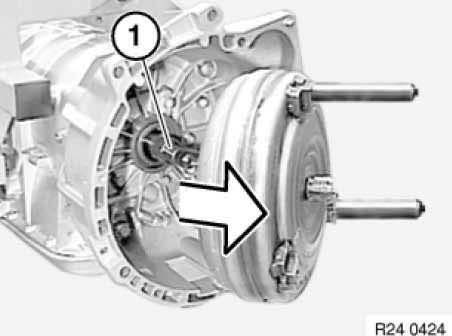

Remove torque converter and set down vertically.





Replace sealing ring (1).

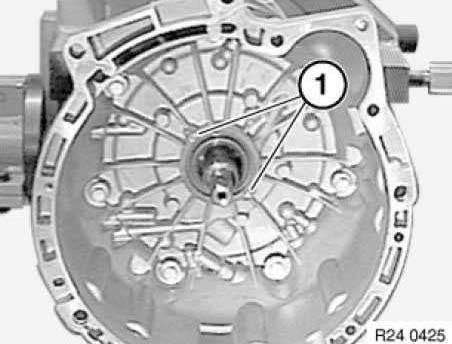

Release retaining screws (1) of radial shaft seal.

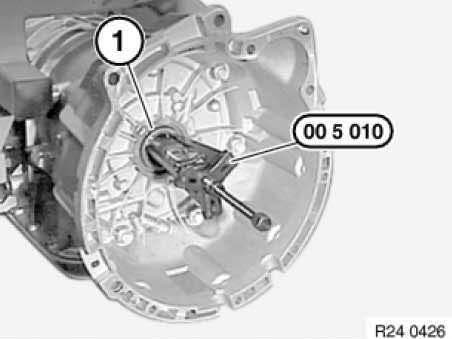

Pull radial shaft seal (1) out of converter housing with special tool 00 5 010.

Installation:
Coat sealing lips of radial shaft seal with automatic transmission fluid.
Insert radial shaft seal.
Tighten both retaining screws uniformly.

Tightening torque:
Guard M6 9 Nm.





Push torque converter through radial shaft seal onto transmission shaft as far as it will go.
Press torque converter by hand into converter housing. Turn in so doing until opening of converter hub engages in driver of pump impeller. Torque converter must noticeably slide inwards.

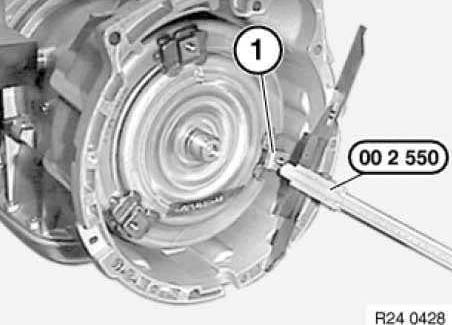

Determine distance between contact surface and surface (1) of tapped hole in torque converter with special tool 00 2 550.
Torque converter is correctly installed when measured value is greater than 30 mm.
