Replacing Radial Shaft Seal For Manual Shift Valve Shaft

24 50 001 Replacing radial shaft seal for manual shift valve shaft (A5S 360R / 390R, A4S/ 200R)

Special tools required:
^ 24 5 361
^ 24 5 362
^ 24 5 363
^ 24 5 364

Important! After completion of work, check transmission oil level.
Use only the approved automatic transmission fluid in this automatic transmission.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

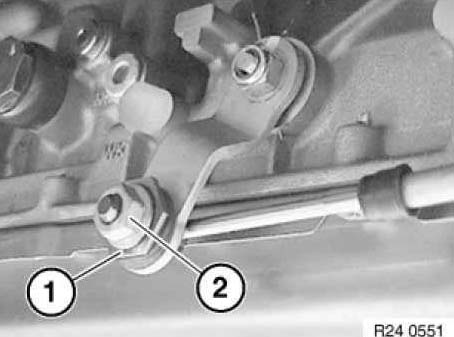

Grip clamping sleeve (1).
Loosen nut (2).
Tightening torque: M8X1 10 Nm.
M8 15 Nm.

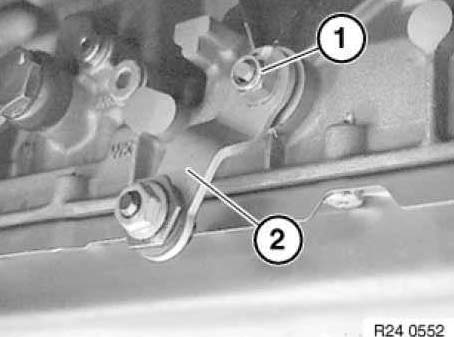

Unscrew nut (1).
2AZ Clamping screw on shift lever 10 Nm
Remove selector lever (4).

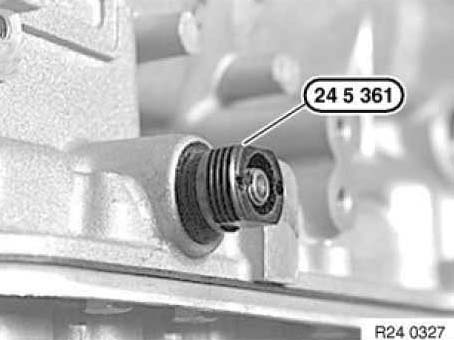

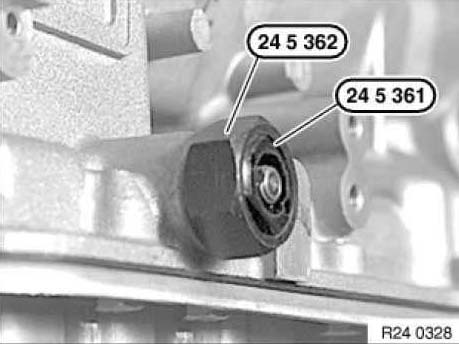

Screw special tool 24 5 361 into radial shaft seal.
Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.
This pulls the radial shaft seal out of the transmission housing.

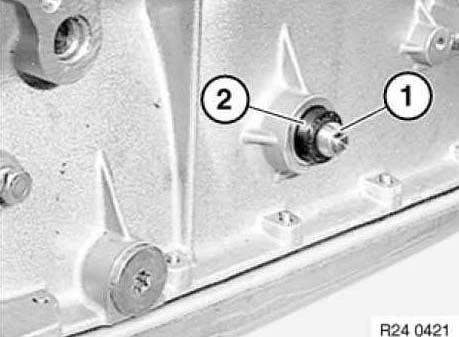

Screw adapter sleeve (1) from seal set onto manual shift valve shaft.





Moisten sealing lips of radial shaft seal (2) with automatic transmission fluid.
Push radial shaft seal (2) onto manual shift valve shaft. Press radial shaft seal (2) as far as possible into transmission housing.
Grip radial shaft seal (2) firmly.
Unscrew adapter sleeve (1) from manual shift valve shaft.

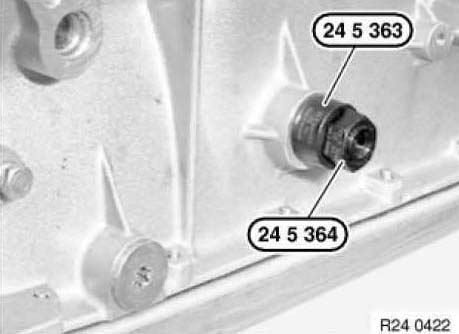

Pull radial shaft seal into transmission housing up to stop with special tools 24 5 363 and 24 5 364.

Installation:
Adjust selector lever.

E46 4WD:
Selector shaft sealing cap on left transmission side leaking.

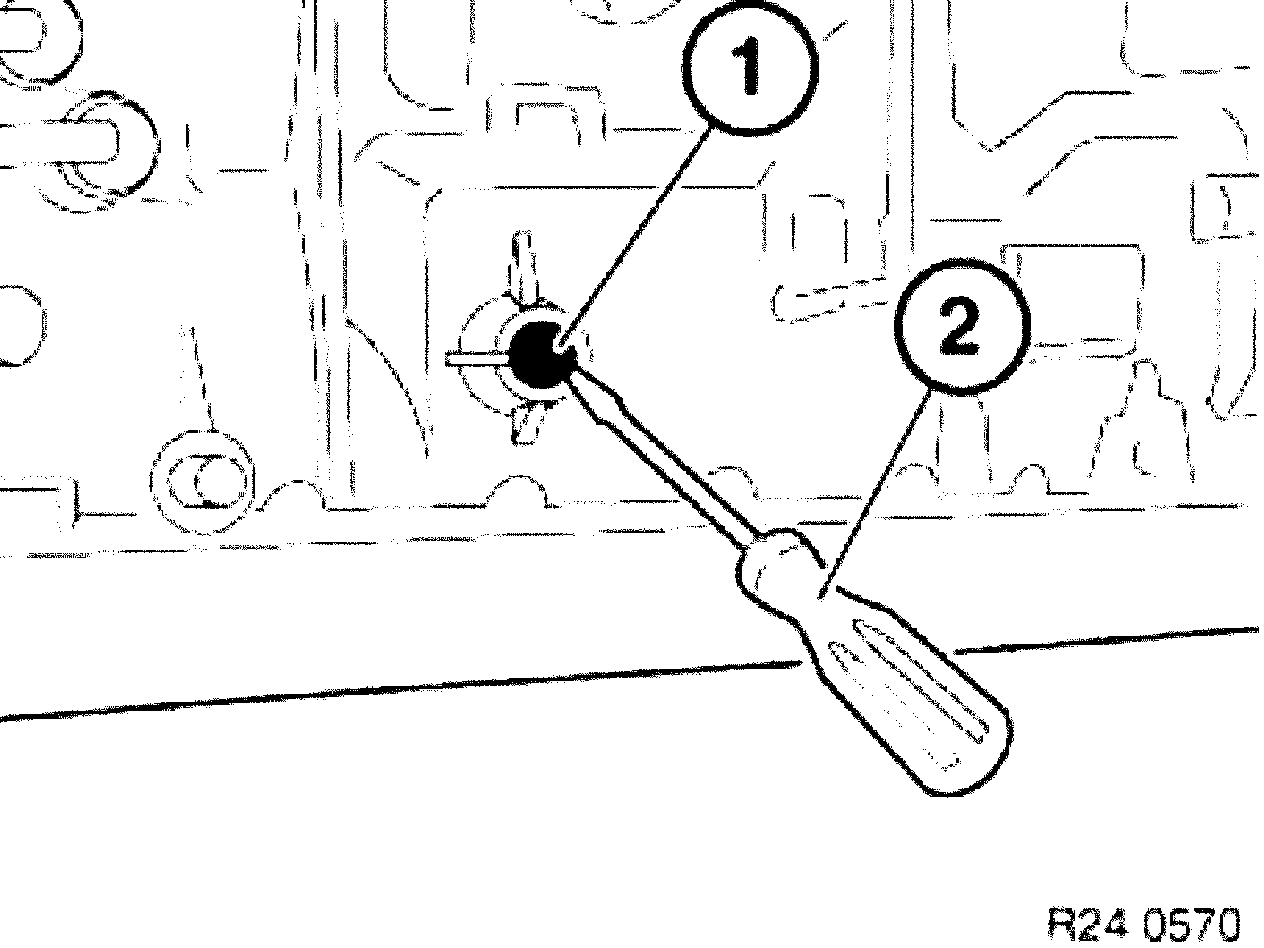

Lever out sealing cap (1) with a screwdriver (2).

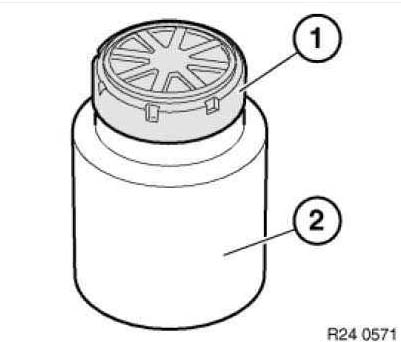

Place new sealing cap (1) on drift (2).





Note: Drift (2) for driving in sealing cap is contained in repair kit.

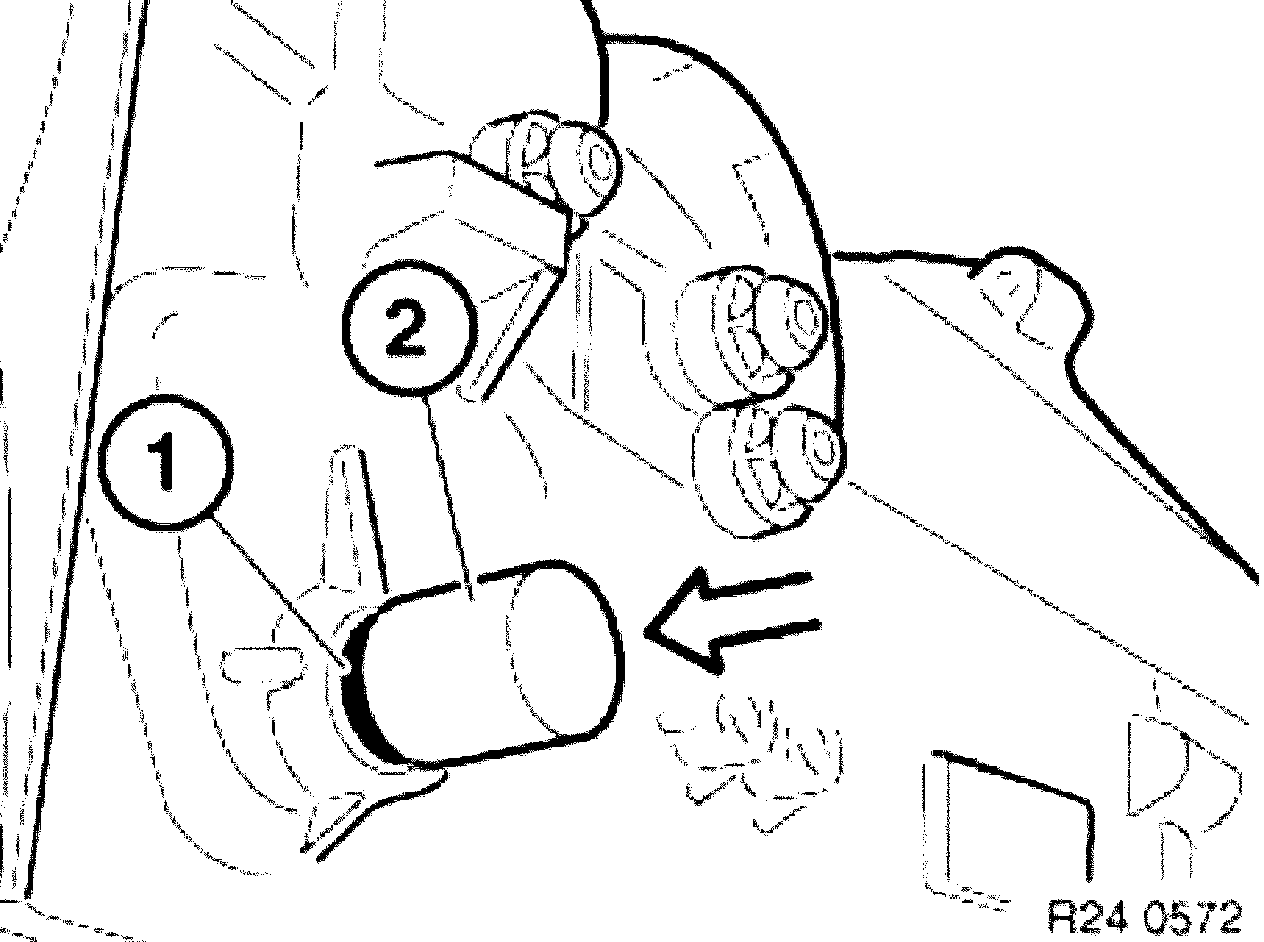

Drive in new sealing cap (1) with drift (2) as far as it will go.
