Replacing Solenoid Valve SV 1 GA6HP26Z
24 34 551 Replacing solenoid valve SV 1 GA6HP26ZSpecial tools required:
^ 12 7 192
Note: After completing work:
- Check gear oil level.
- Use only the approved automatic transmission fluid.
Important! Risk of damage:
Electronics module can be destroyed by electrostatic charge.
Lay mechatronics on special tool 12 7192 (antistatic mat) and ground.
Failure to comply with this instruction will result in serious damage to electronic components.
Necessary preliminary tasks:
- Remove mechatronics
Note: Tasks are identical for electronic pressure control valves.

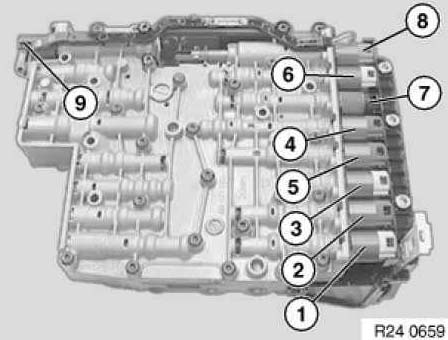

1 EI. pressure actuator 1
2 EI. pressure actuator 2
3 EI. pressure actuator 3
4 EI. pressure actuator 4
5 EI. pressure actuator 5
6 EI. pressure actuator 6
7 SV 1
8 SV 3 (E65/66 only)
9 SV 2 (E65/66 only)

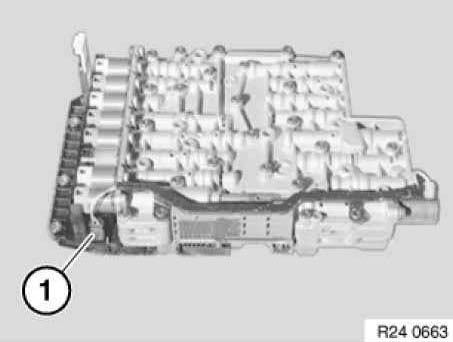

Unlock plug (1) and remove.

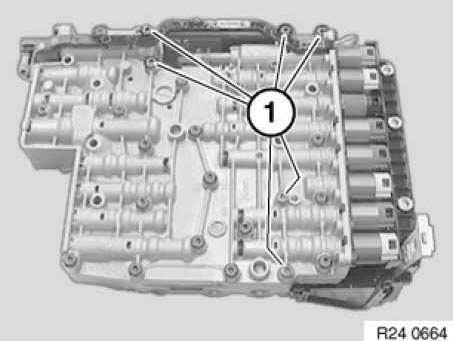

Release screws (1).
8AZ Pulse generator, turbine speed A5S 325Z 8 Nm

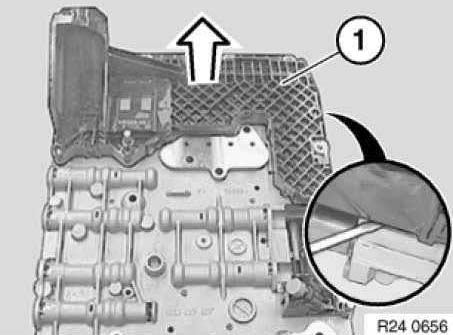

Carefully lift electronics module (1) with a suitable tool and remove in direction of arrow.
Installation:

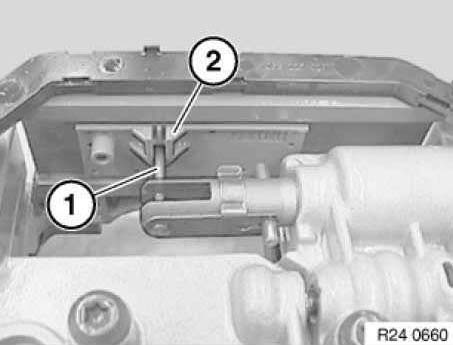

Piston (1) of parking lock cylinder must be attached in slide (2) of selector lever position switch.
Release screws (1).
7AZ Pulse generator, output speed A5S 325Z 6 Nm

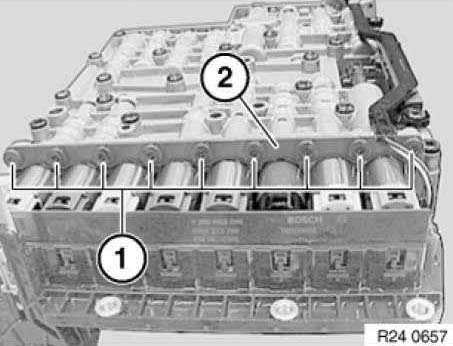

Remove retaining plate (2) for electronic pressure control valves.

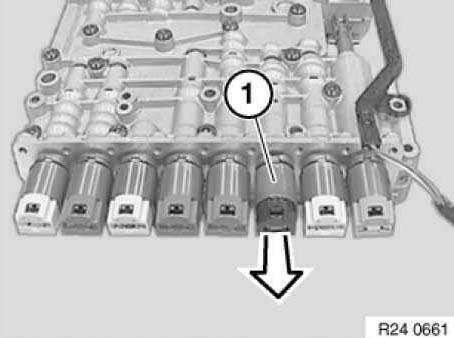

Remove solenoid valve (1) in direction of arrow.
Note: Note installation position.
