Stabilizer Link/Push Rod For Right/Left Stabilizer, Remove/Replace

Removing and installing/replacing push rod (stabilizer link) for left/right stabilizer

Note:
The wheels must be in the straight-ahead position during this work step.

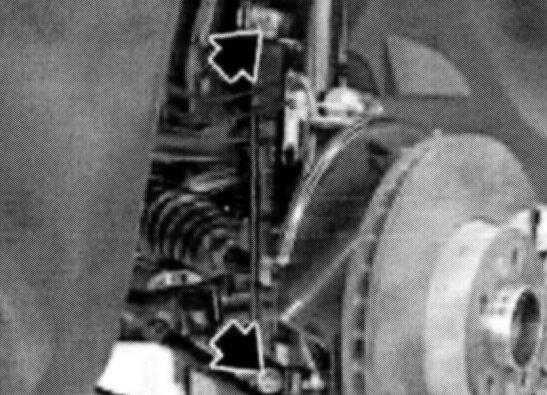

Unfasten nut - brace with open-end wrench.

Installation:





The push rods are different and can be identified by the number on the tube
Odd number = left push rod
Even number = right push rod
Replace self-locking nut.
Tightening Torque:
- Stabilizer link on spring strut shock absorber and stabilizer 100 Nm
Note: wrench surface must be parallel to absorber axle.
