Rubber Mounts on Both Tension Struts
Rubber Mounts on Both Tension StrutsCaution:
Align front axle after assembly.
Always replace both rubber mounts.
Remove tension struts.

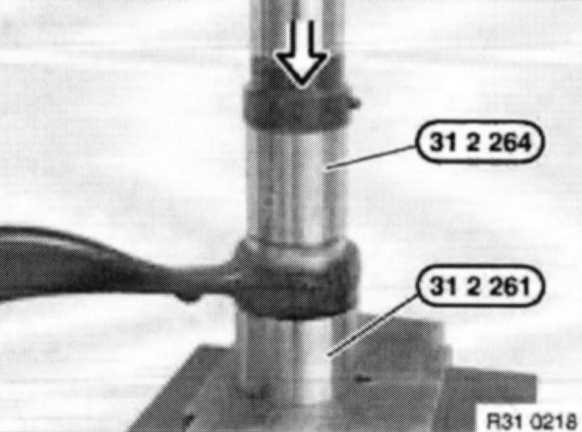

Press rubber mount out and in from tension strut using a press and special tool 31 2 261/264.
Special tool must be exactly flush with bush of rubber mount.
Installation:
Rubber mount and tension strut bore free of grease.

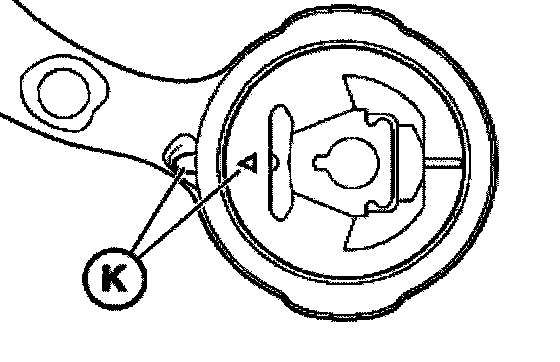

Marking (K) on rubber mount points to marking (K) on tension strut.
Max. torsional tolerance ± 30°.
Installation:

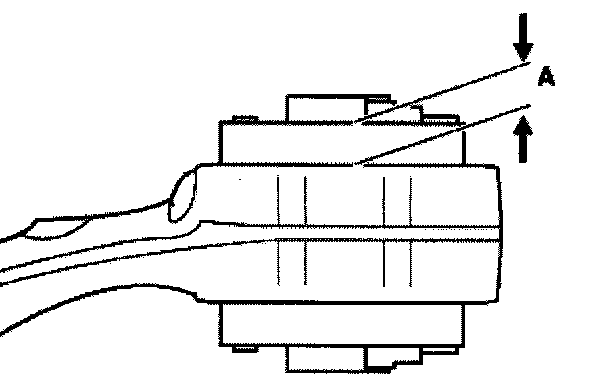

Protrusion (A) = 12.5 ± 0.7 mm
