Rubber Mount In Left or Right Control Arm - Control Arm Removed

Rubber Mount In Left or Right Control Arm - Control Arm Removed

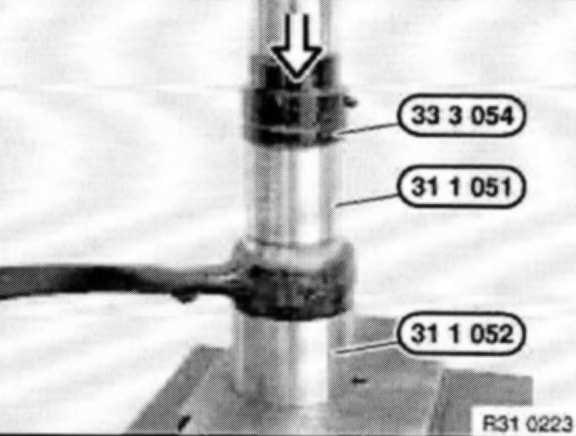

Press rubber mount in and out with special tool 31 1 051/052 and 33 3 054.

Installation:
Rubber mount and control arm bore free of grease.
Press in rubber mount from chamfered side of control arm bore.

Installation:

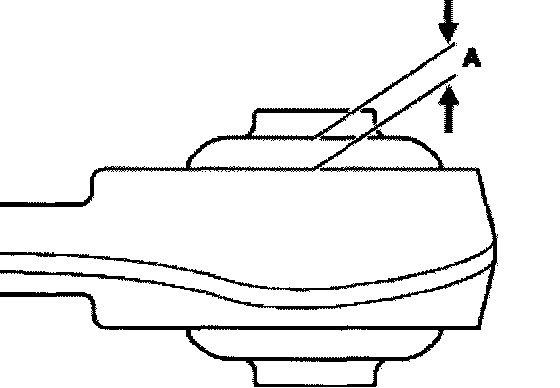

Protrusion (A) = 5.75 ± 0.7 mm.
