Removing and Installing or Replacing Steering-Lock Cylinder

Removing and Installing or Replacing Steering-Lock Cylinder

Remove ring antenna.

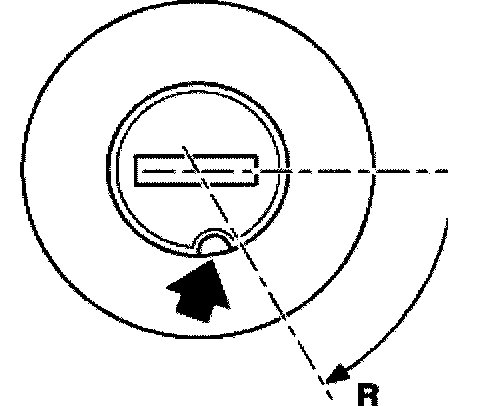

With ignition key (use workshop key), move lock cylinder to "R" position = radio, windshield wiper, blower.

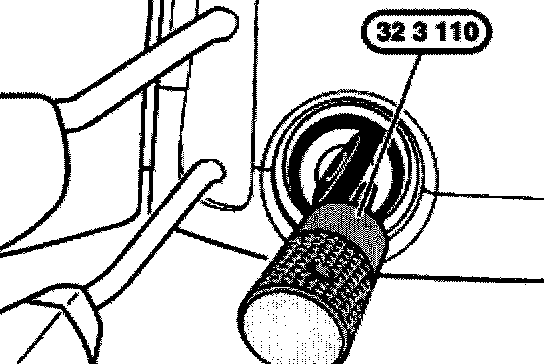

Press special tool 32 3 110 into bore of lock cylinder and tilt handle forwards through approx. 90°. Remove lock cylinder.
