Steering Column Cover: Service and Repair
Removing and installing/replacing lower section of
steering column cover

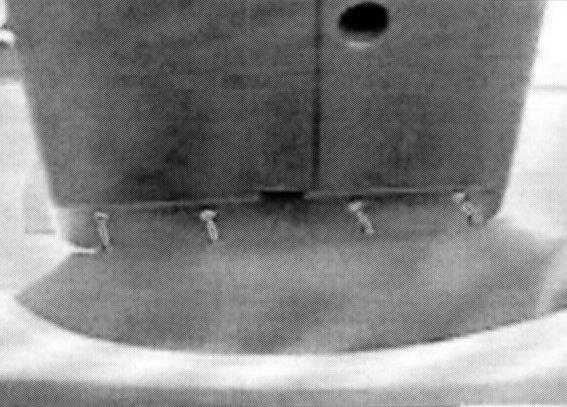

Unfasten screws.

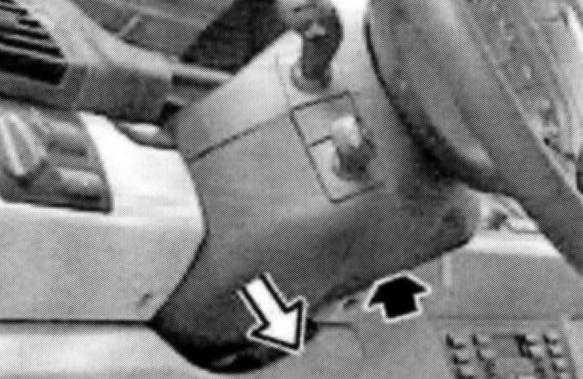

Pull off lower section of
steering column cover
towards bottom.
Installation:
Clip leather boot into trim.
