Troubleshooting on Front Axle/Rear Axle (Alignment Check)


Troubleshooting on front axle/rear axle (alignment check)

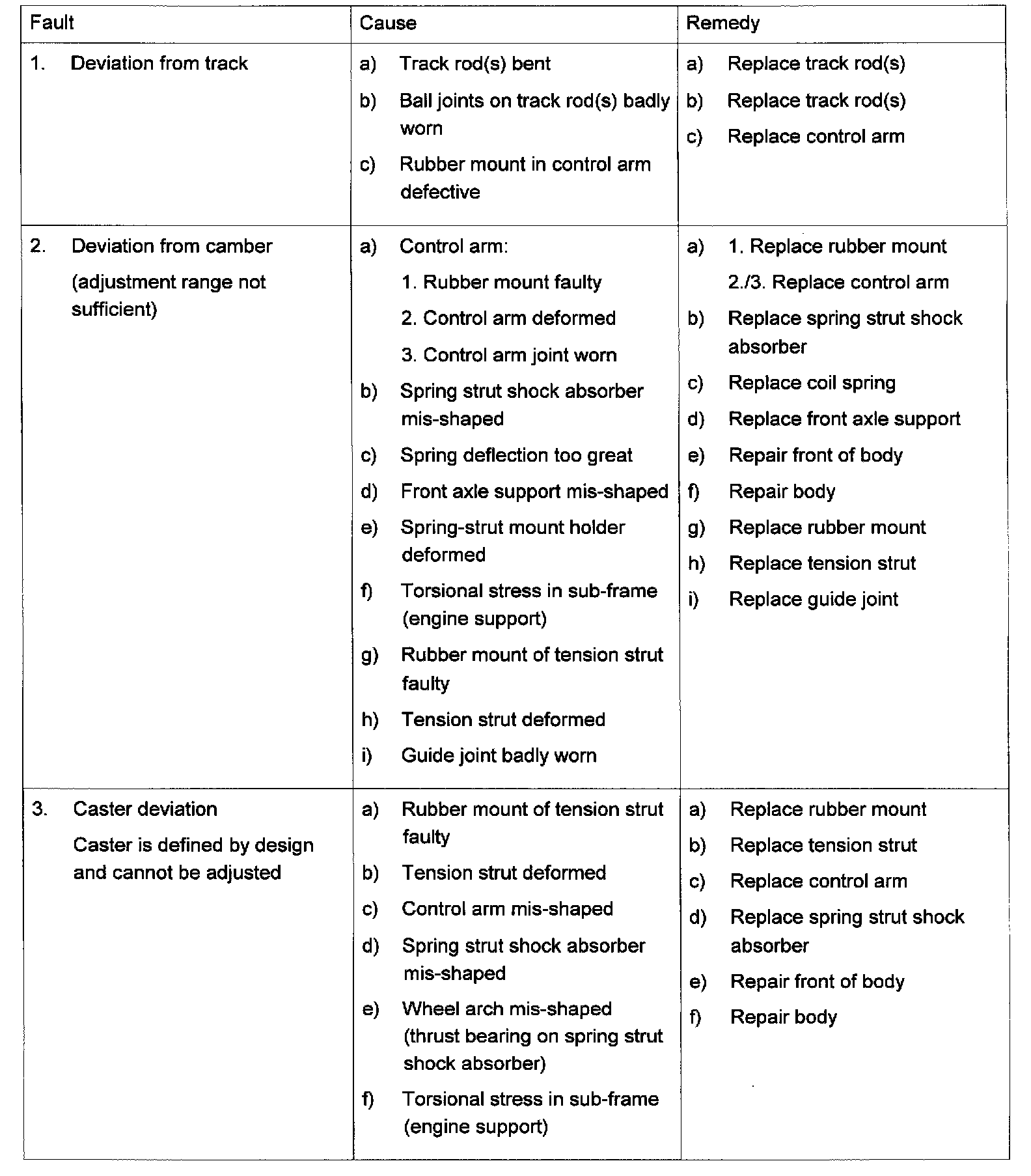

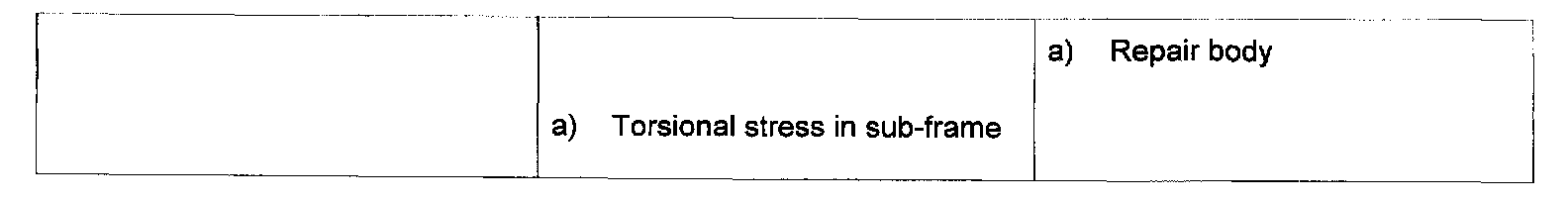

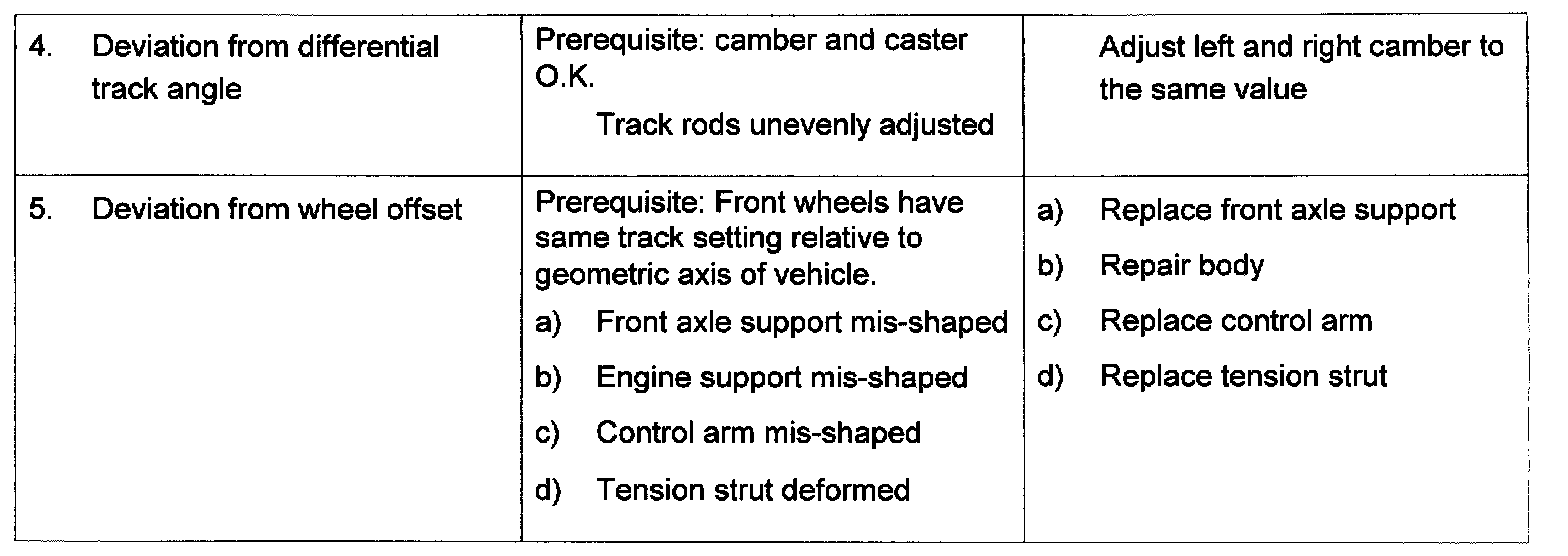

Front axle troubleshooting

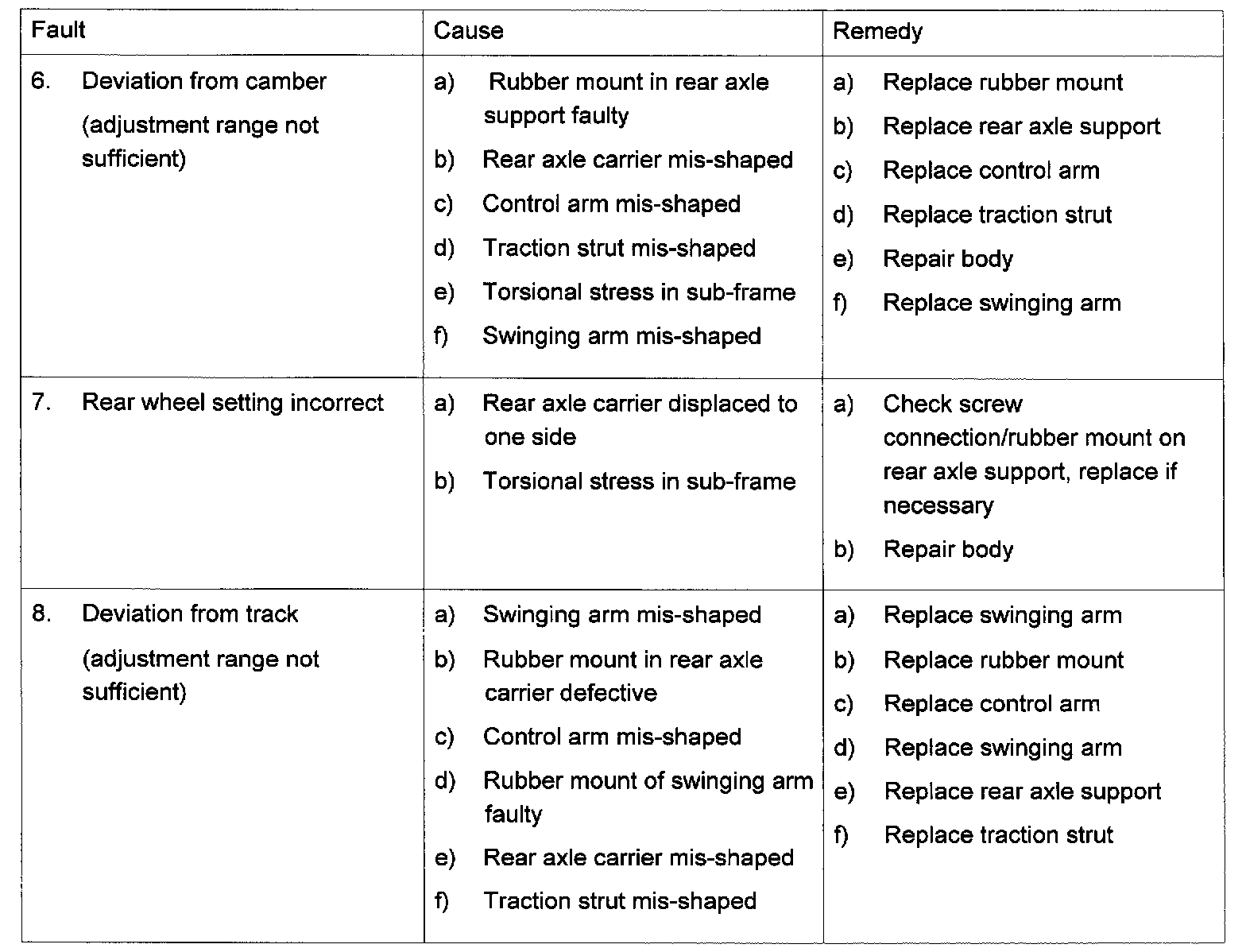

Rear axle troubleshooting
