Replacing Mirror Light

Removing And Installing/Replacing Mirror Light

IMPORTANT:
Follow instructions for handling light bulbs (interior lights).

Replacement:
If necessary, convert bulb.

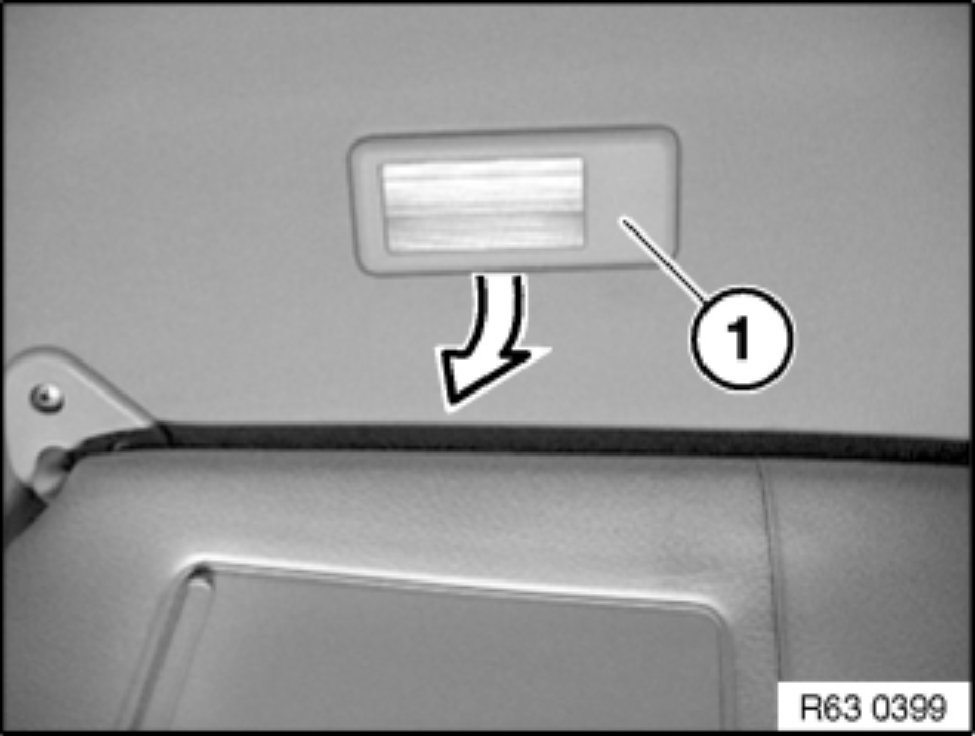

Lever front mirror light (1) in direction of arrow.
Disconnect plug connection underneath and remove mirror plate light (1).

Replacement:
Note type of bulb.
