Turn Signal Lamp: Service and Repair

Removing And Installing/Replacing Front Left Or Right Auxiliary Turn Indicator Light

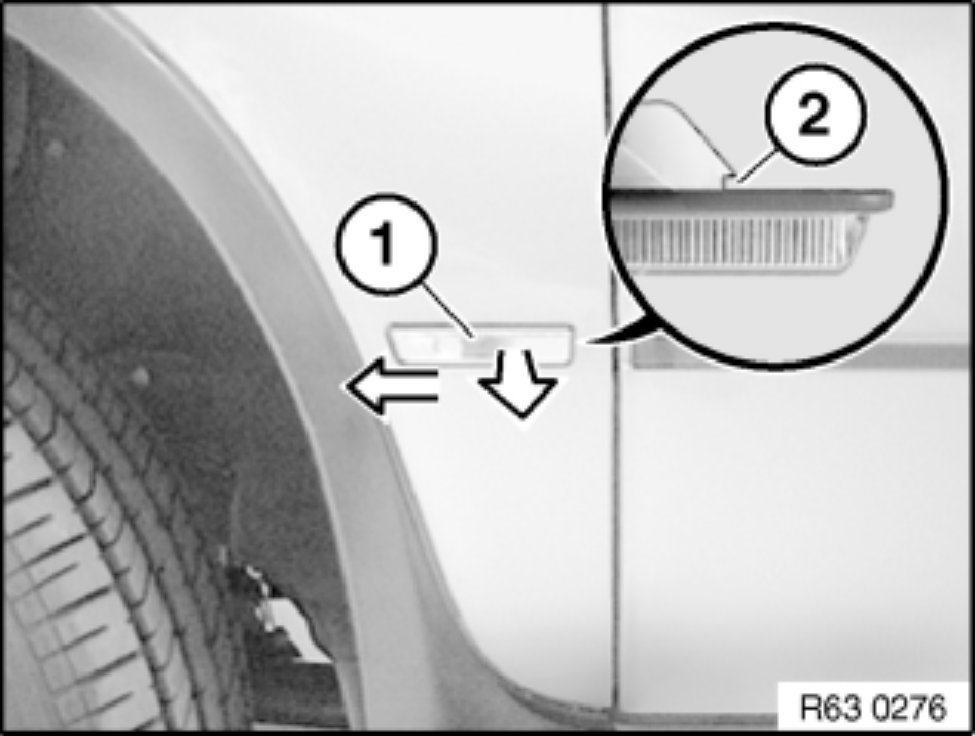

Slide auxiliary turn indicator light (1) forwards and remove.

Installation:
Ensure that seal is correctly seated.
If necessary, replace seal.
Snap retaining hook (2) into fender.

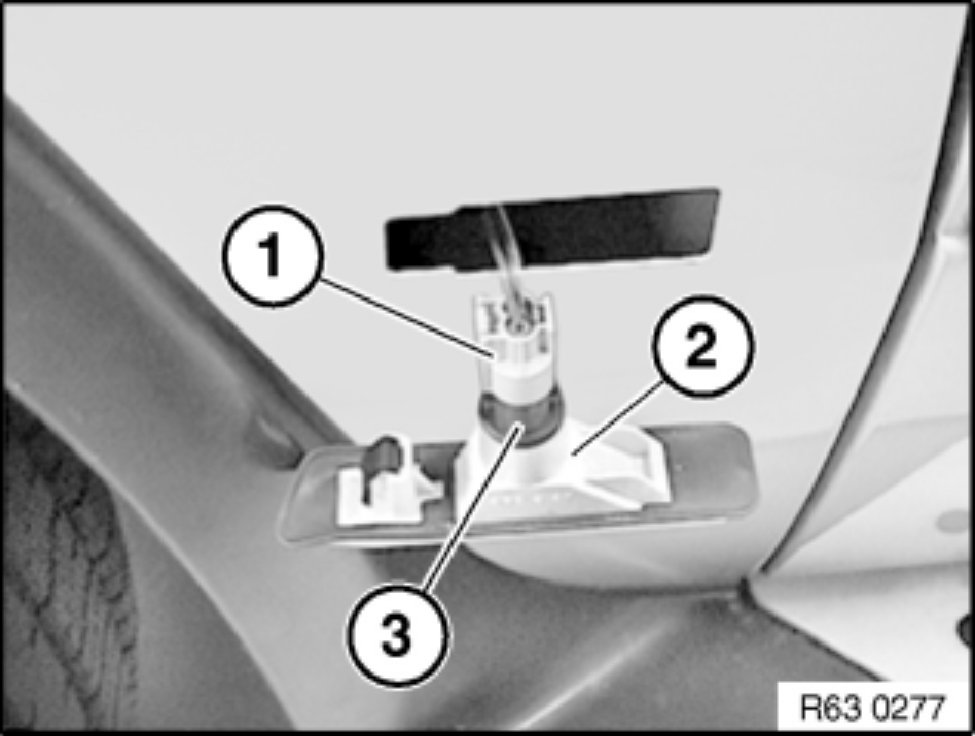

Disconnect plug connection (1) and remove auxiliary turn indicator light (2).
Turn bulb holder (3) counterclockwise through approx. 45 degrees and remove.
Pull bulb out of holder.

NOTE:
Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb.
