Replacing Finisher on Left or Right Headlight Housing

Removing And Installing Or Replacing Finisher On Left Or Right Headlight Housing

Open hood.

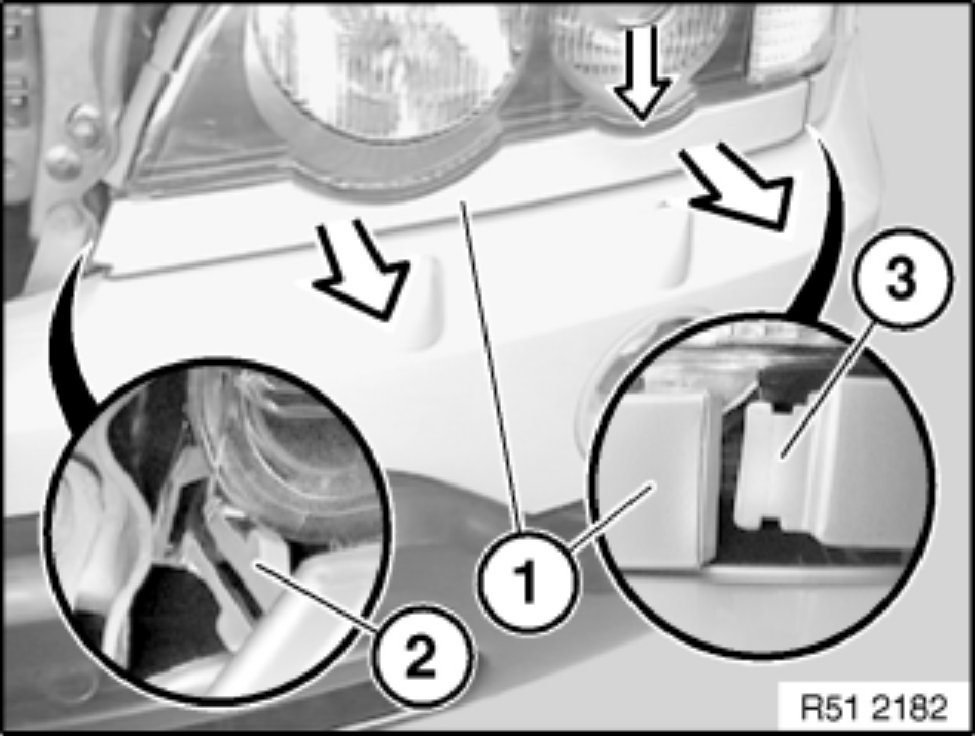

Unclip clip (2) on trim (1) on inside.
Press trim (1) downwards out of holder.
Feed trim (1) out of hook (3) and remove.

Installation:

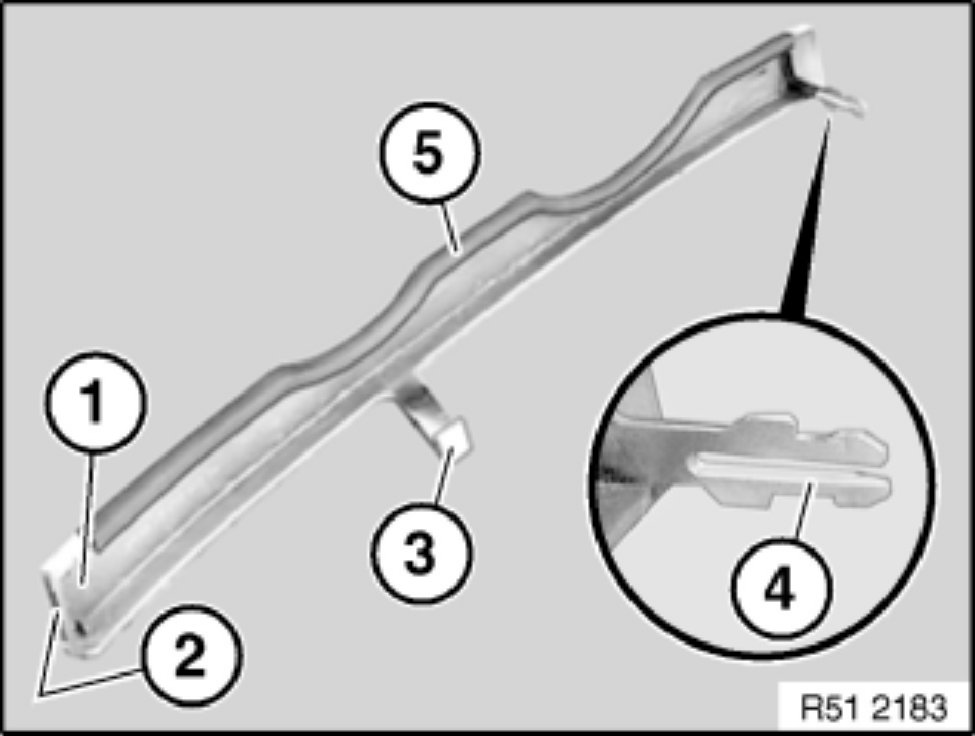

Mount (2) and hooks (3) and (4) of trim (1) must not be damaged.
Seal (5) must be correctly seated.
