Replacing Multiinformation Display

Removing And Installing/Replacing Multi-information Display

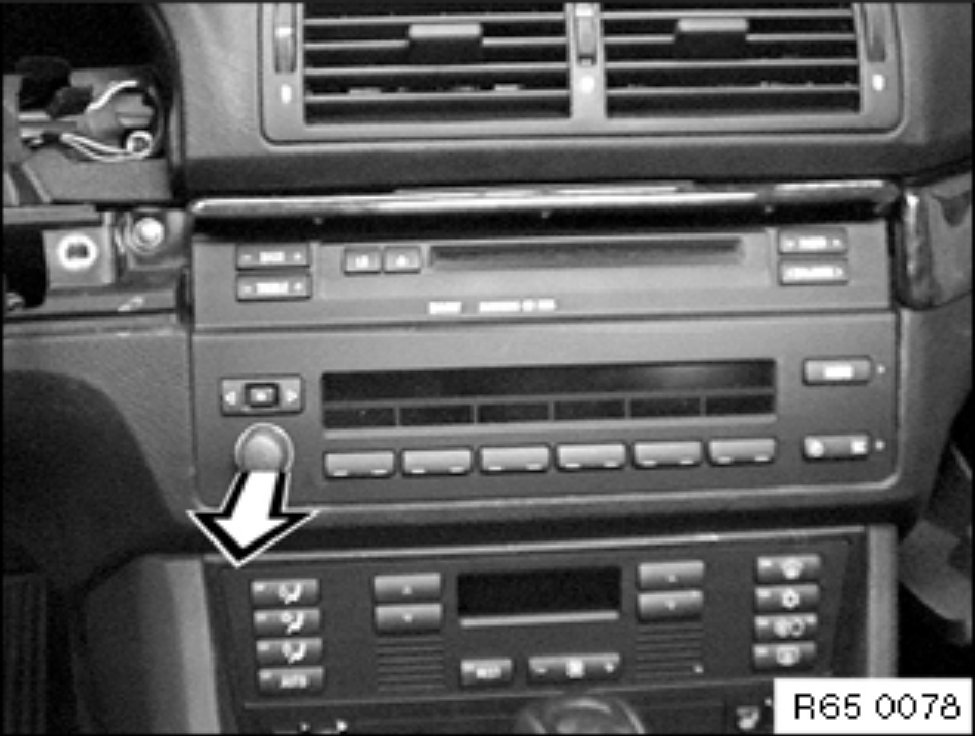

Remove volume control knob.

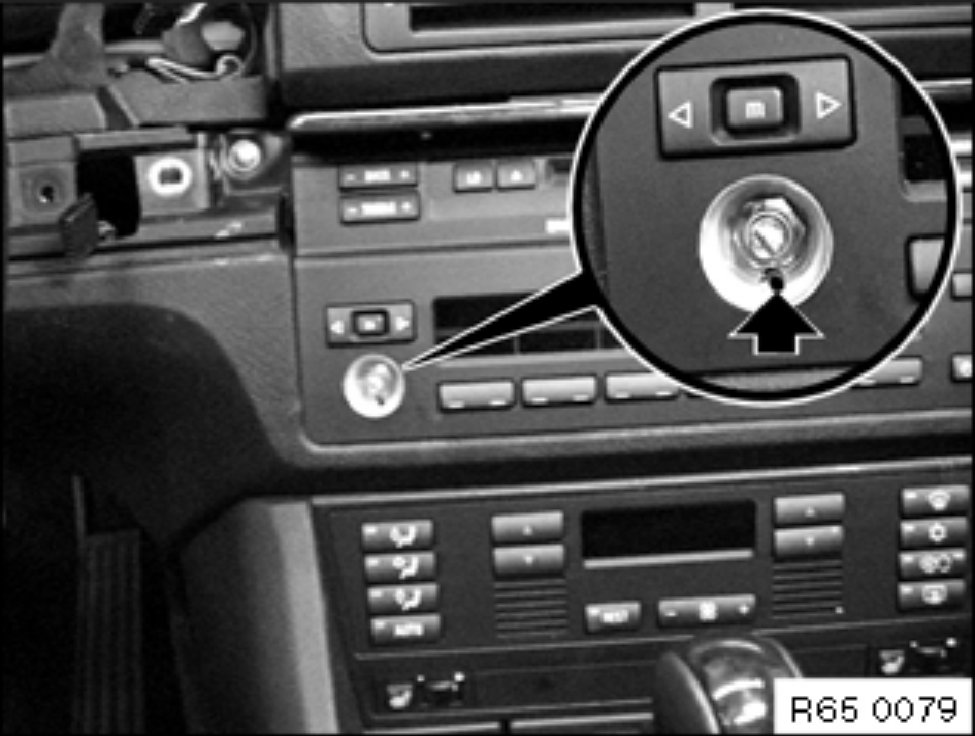

Turn lock with Torx screwdriver through approx. 90 degrees and pull out multi-information display.

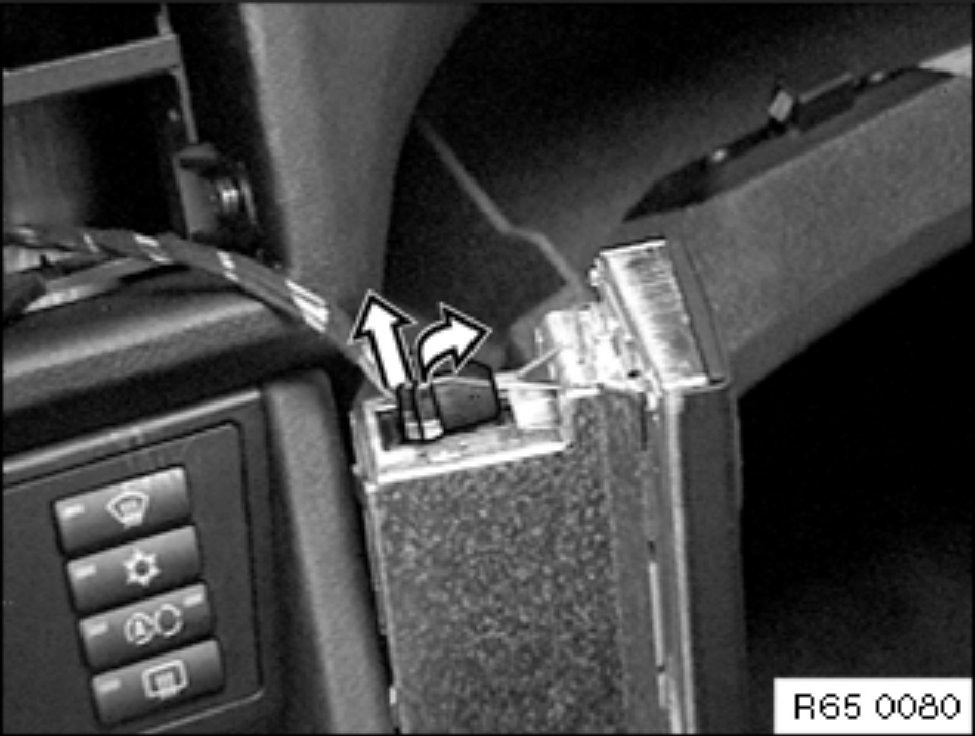

Disconnect plug connection.
