Replacing Temperature Sensor For Heater

Replacing Temperature Sensor For Heater

Heater controls removed.

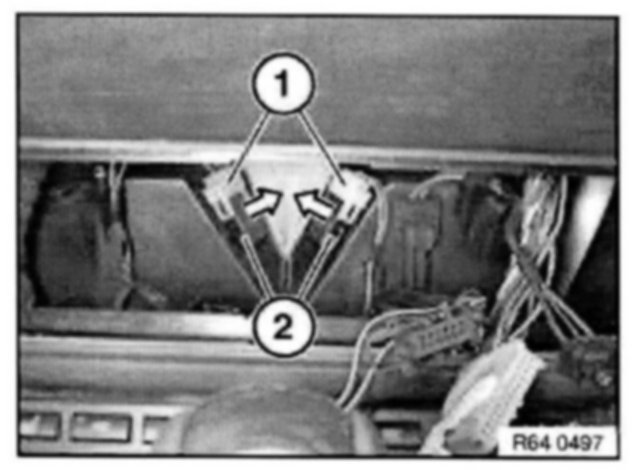

Disconnect plug connection (1).
Remove temperature sensor (2).
