Replacing Evaporator Temperature Sensor (A/C Control)

Replacing Evaporator Temperature Sensor (A/C Control)

Remove right glovebox.







E39 only:

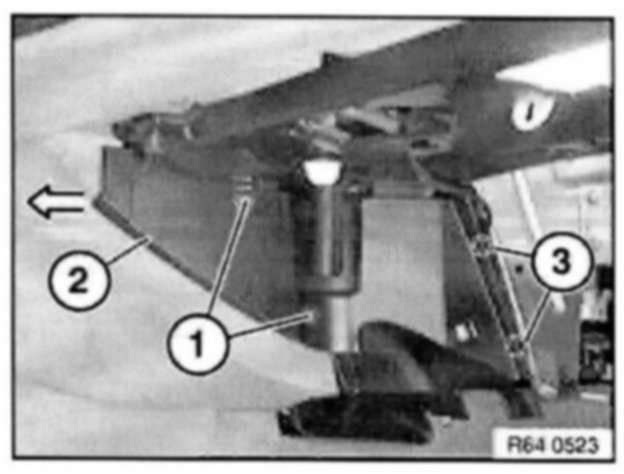

Release screws (1).
Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.







E39, E53;

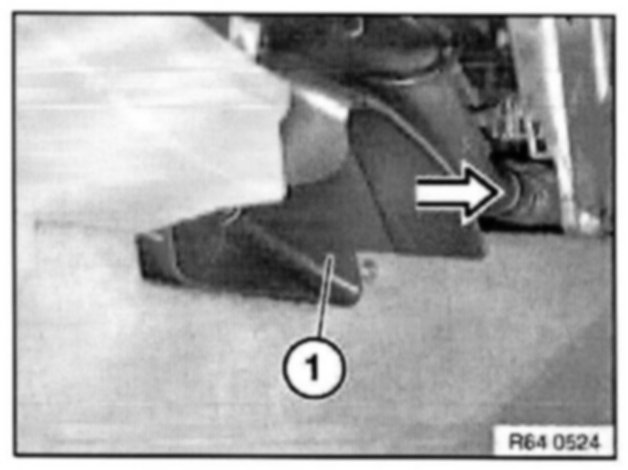

Unclip air duct for right footwell (1) and pull out in direction of arrow.

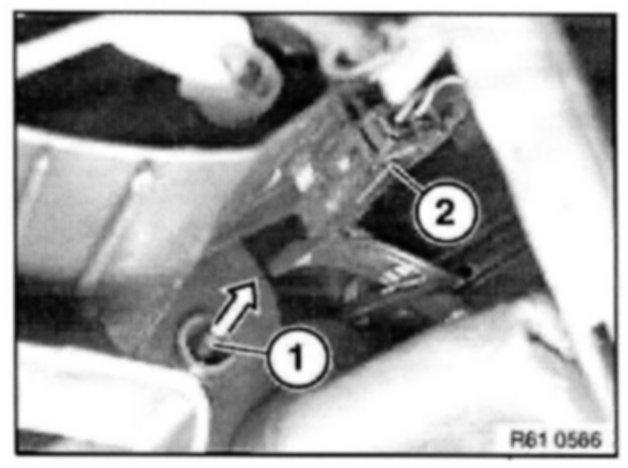

Break out repair cover (1) with pointed pliers in direction of arrow.
Disconnect connector (2).

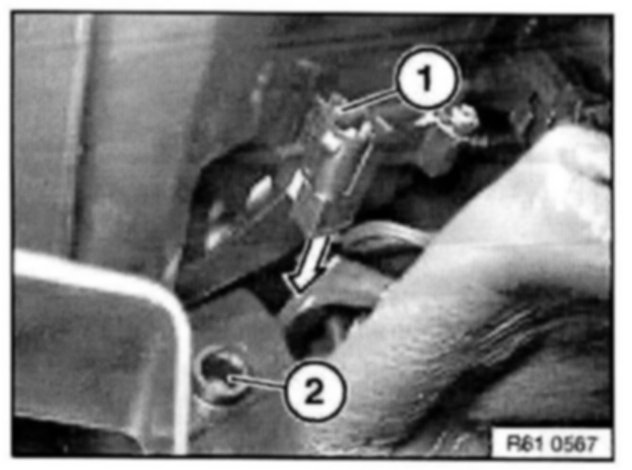

Unlock plug of faulty evaporator temperature sensor (1) and pull out in direction of arrow.


NOTE: Secure plug of faulty evaporator temperature sensor with fabric adhesive tape.


Insert new evaporator temperature sensor in opening (2) and lock into place.







Installation:

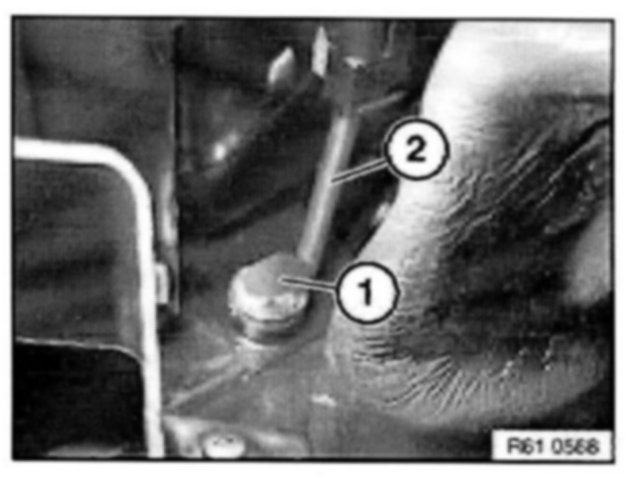

Make sure evaporator temperature sensor (1) and cable (2) are correctly seated.
