Replacing Servodrive of Ventilation Flaps (Automatic A/C)

Replacing Servodrive Of Ventilation Flaps (Automatic A/C)

Remove trim for pedal assembly.

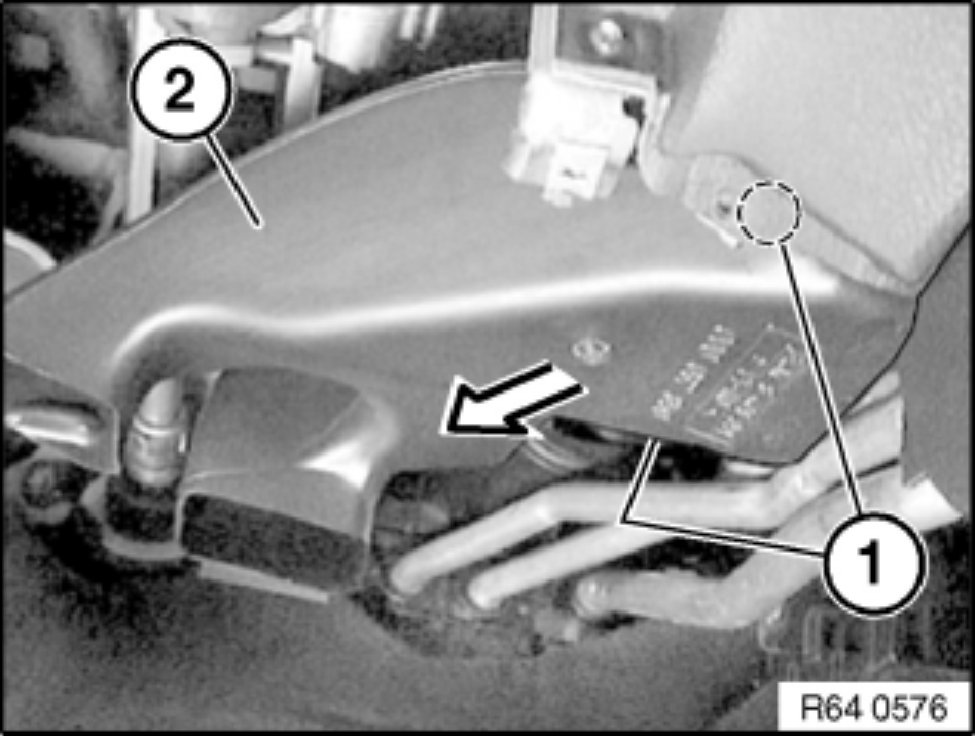

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.







Disconnect plug connection (1).

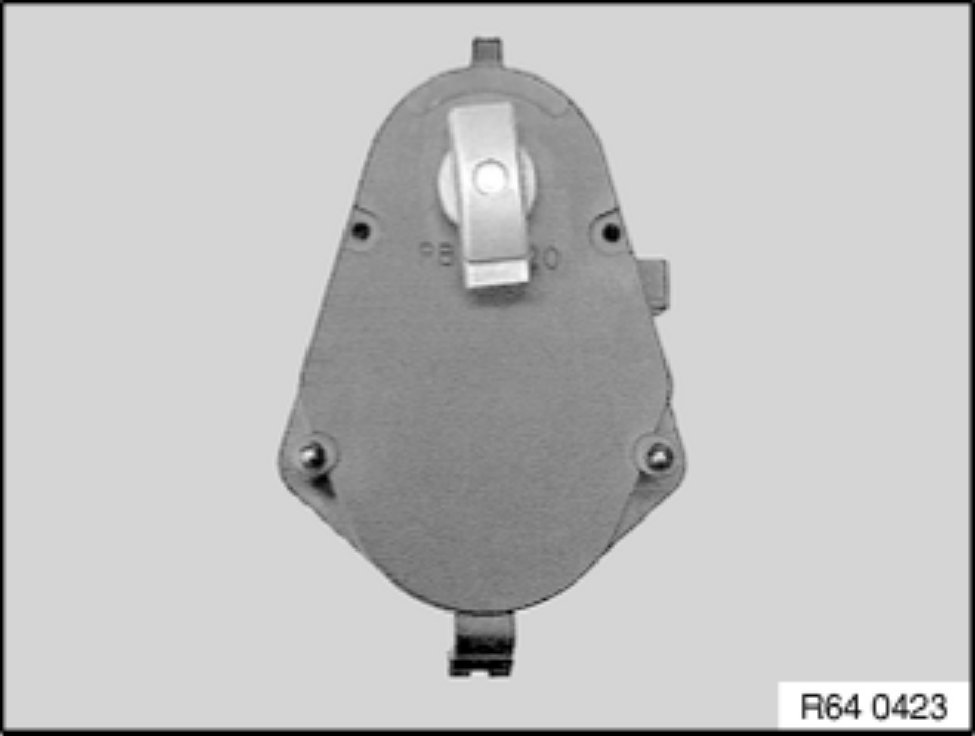

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:







If necessary, align shaft of ventilation flaps to position of servodrive.
