17 11 530 Removing and Installing Cassette (Condenser For Air Conditioner)

17 11 530 Removing and installing cassette (condenser for air conditioner)

Remove radiator.

Draw off refrigerant from A C system.

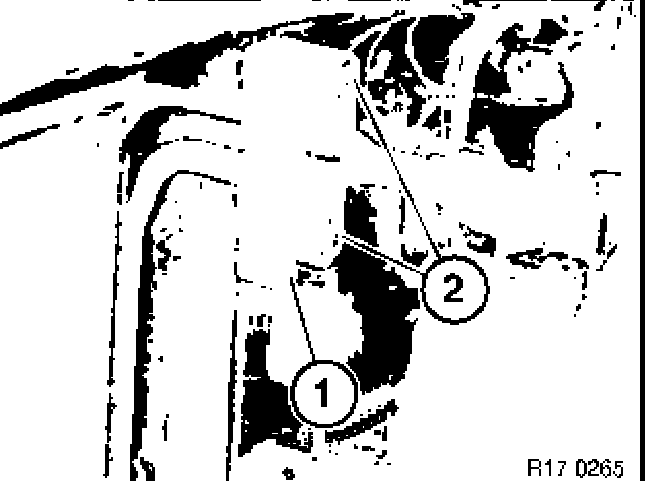

Release screw (1).
Release screws (2).
Disconnect A/C system lines from condenser.
Installation: Replace sealing rings.
Evacuate and fill A C system.

Recycling
Hydraulic fluid emerges when hydraulic lines are disconnected.
Catch and dispose of emerging hydraulic fluid. Observe country-specific waste-disposal regulations.
Disconnect fast-release couplings on hydraulic lines.
Installation: Bleed power steering.

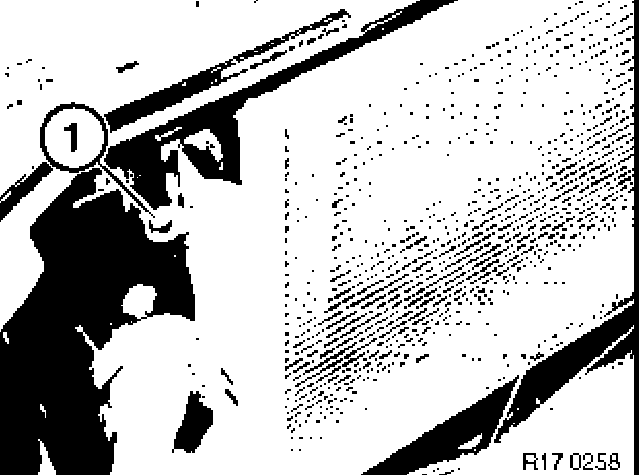

Release screw (1).
Remove A/C condenser.
Remove cooler for steering hydraulics.

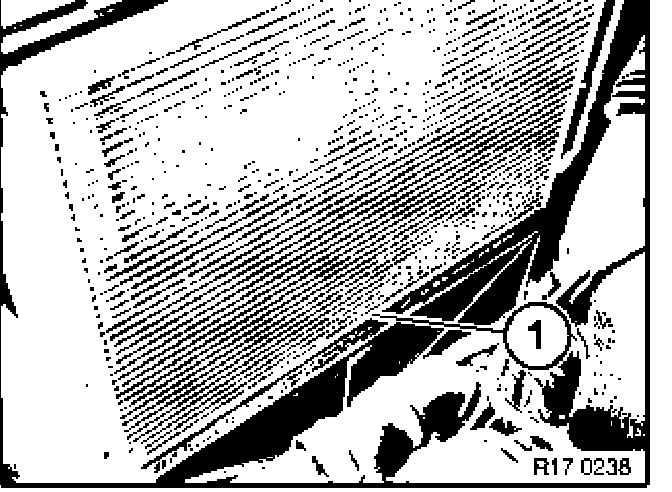

Installation: Check sealing strip (1) between condenser and cooler for steering hydraulics for correct seating.

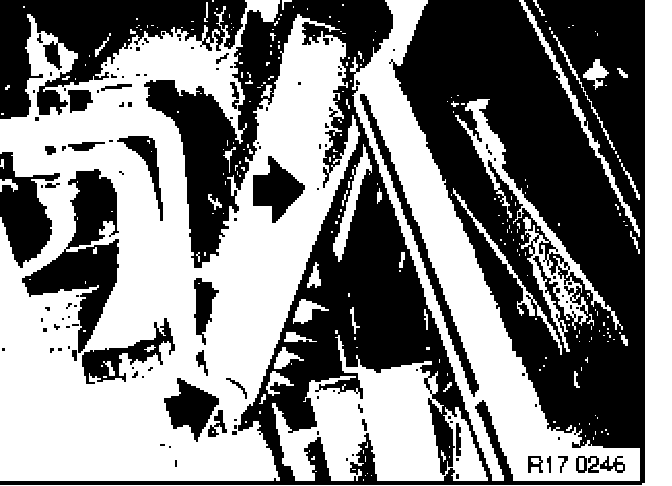

Installation: Insert condenser into semicircular holders on left and right.





Remove front bumper.

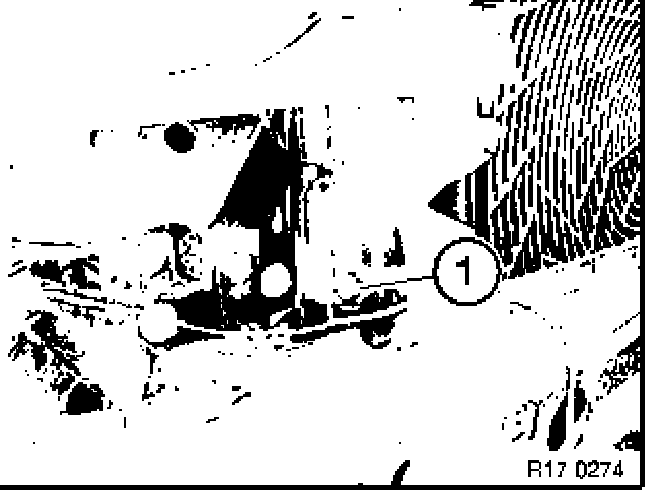

Release screws (1) on left and right.
Remove cassette towards top.

Installation: Install cassette on left and right into holders.
