Transmission Control VTG (As of 09/03)
>>
VTG Transmission Control
VTG Transmission Control

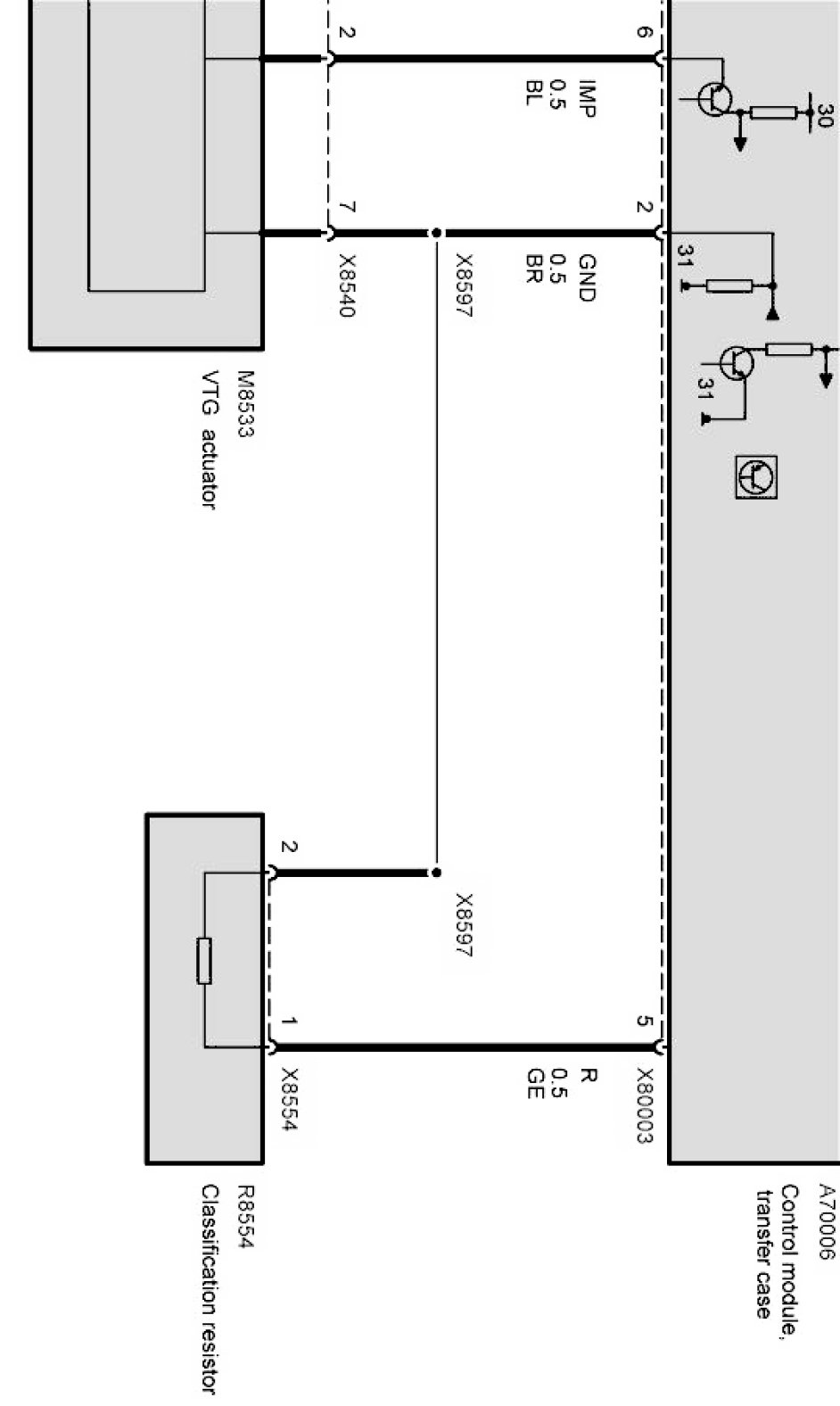

E53 VTG transmission control Part 1 Of 4:

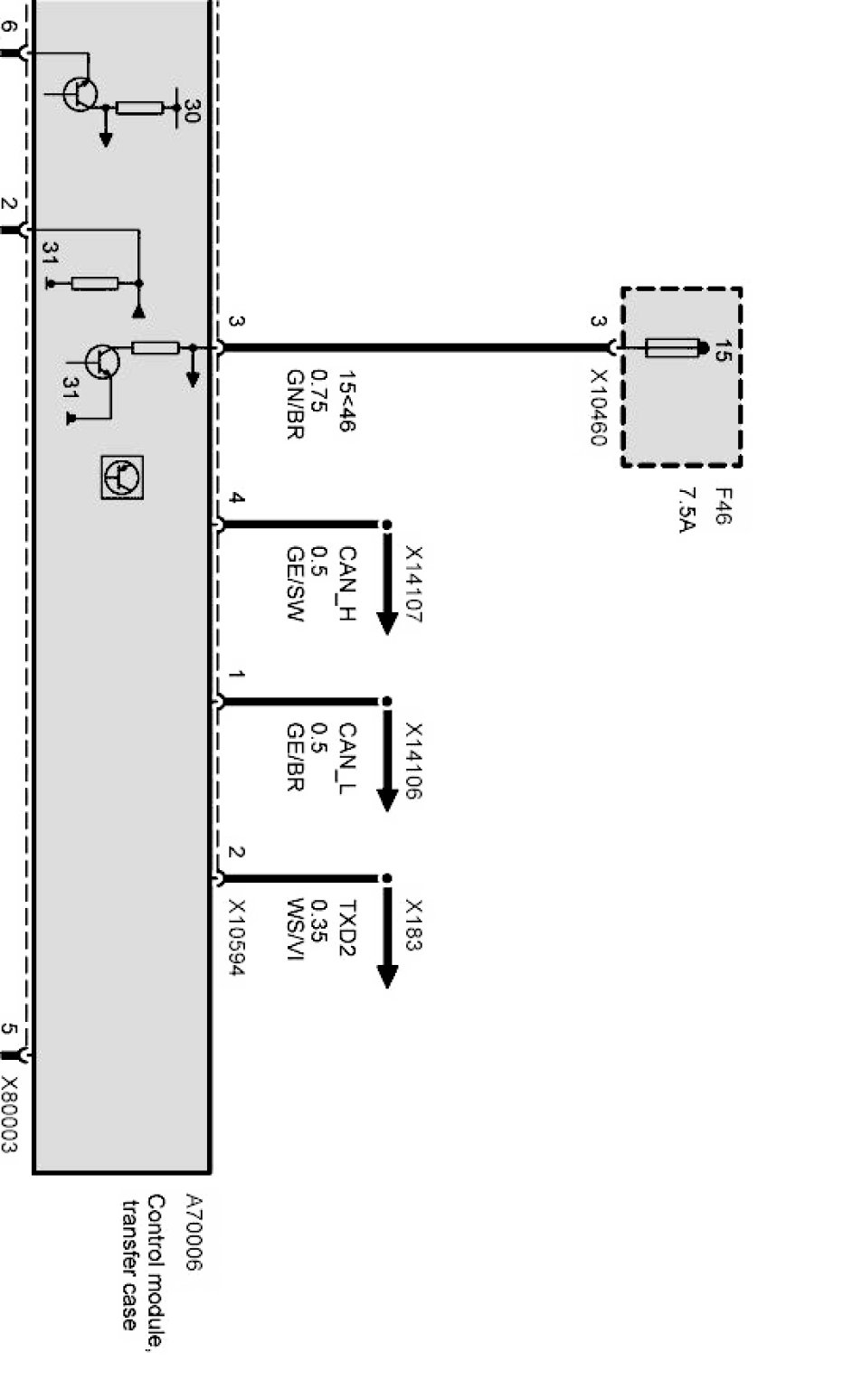

E53 VTG transmission control Part 2 Of 4:

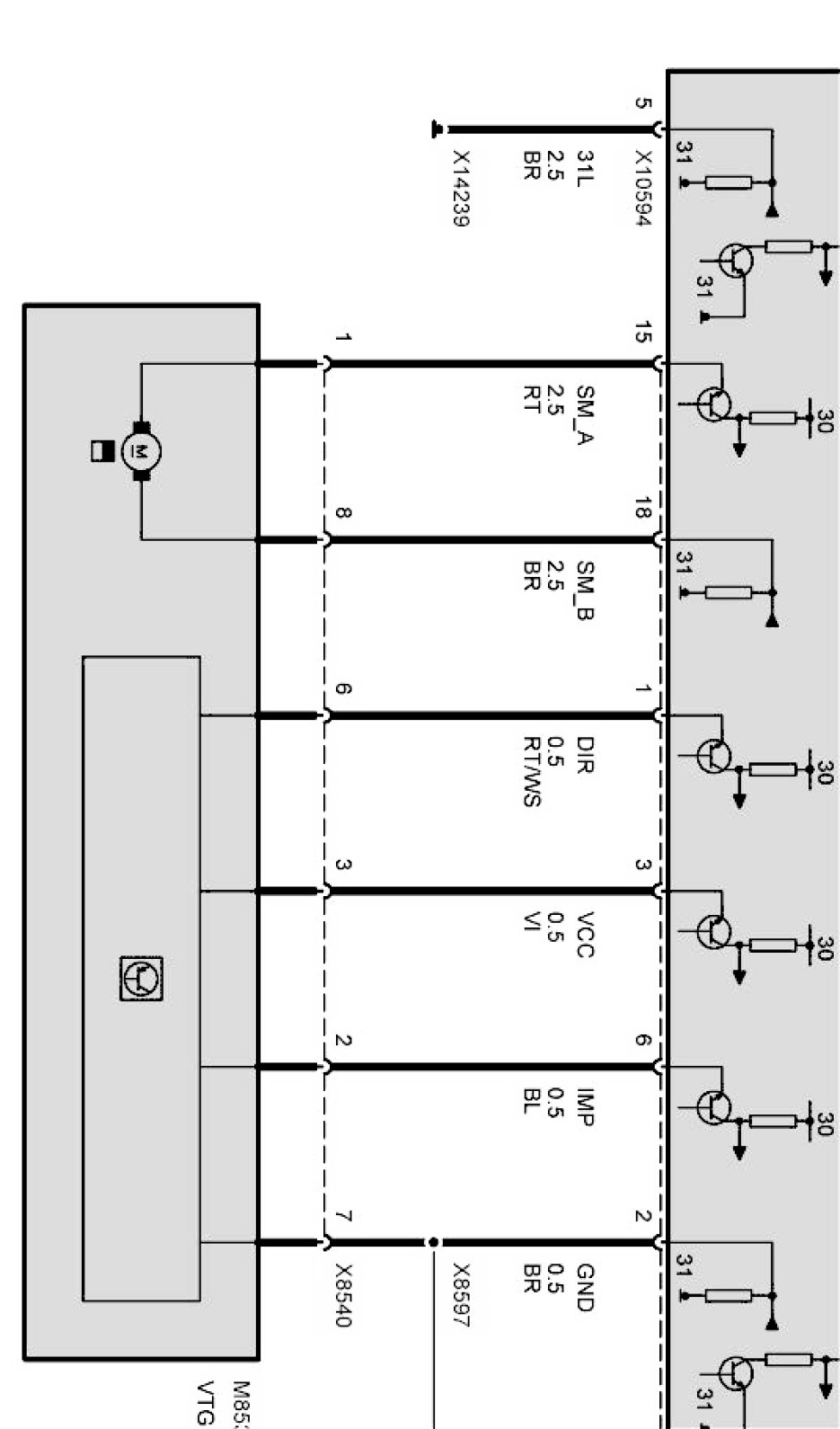

E53 VTG transmission control Part 3 Of 4:

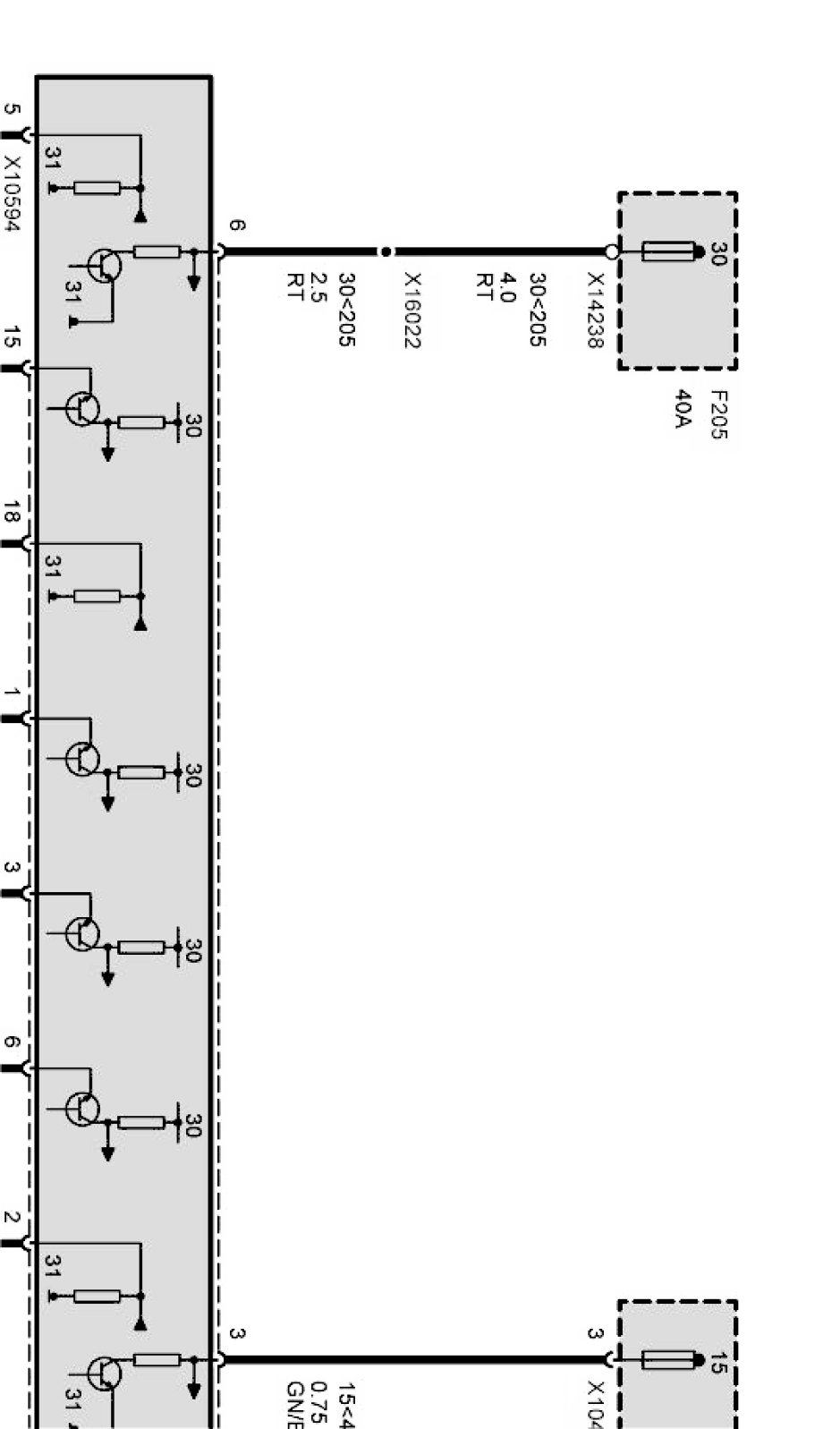

E53 VTG transmission control Part 4 Of 4:
