Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Control VTG (As of 09/03) >> CAN-Bus

CAN-Bus

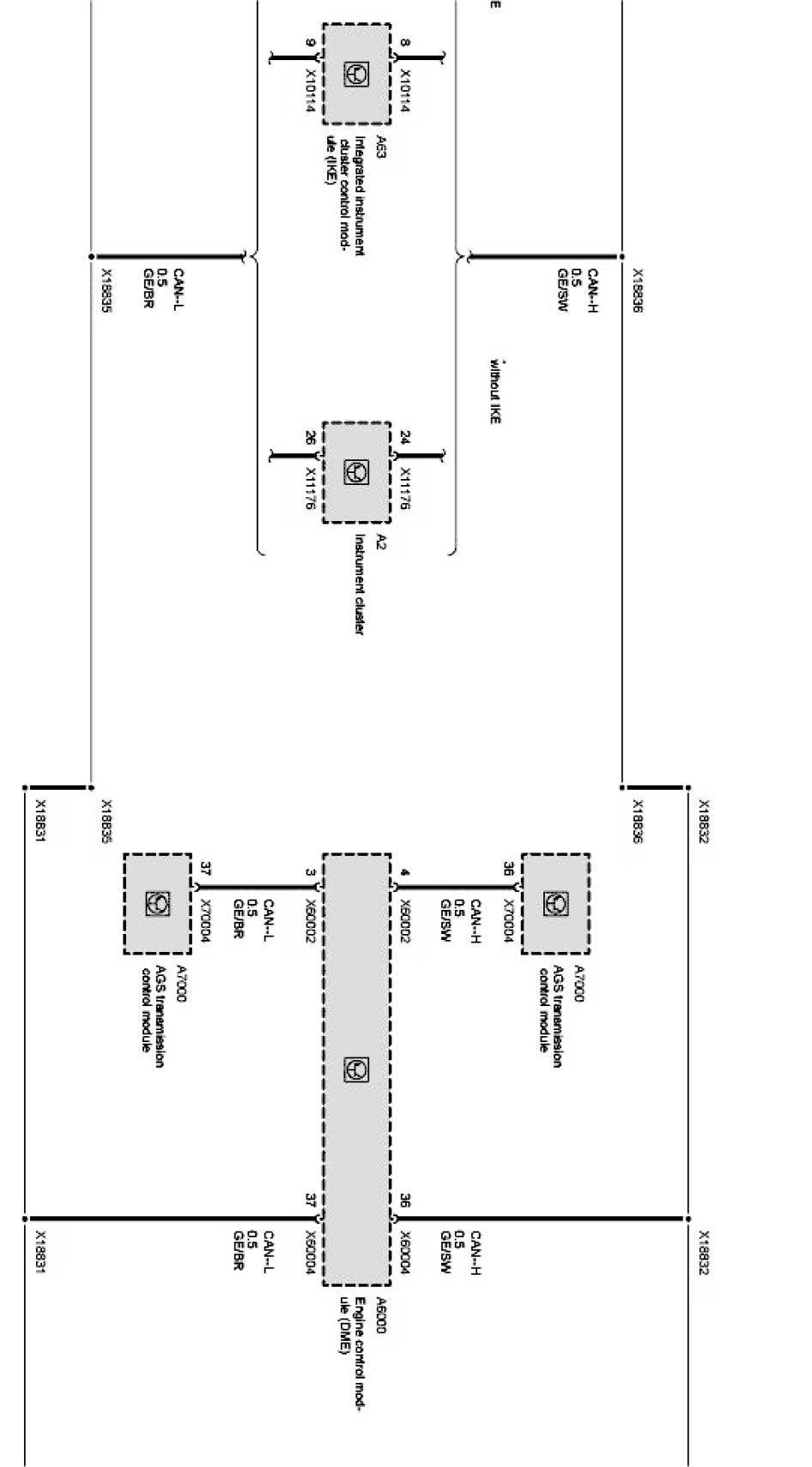

E53 Connector, CAN bus Part 1 Of 3:

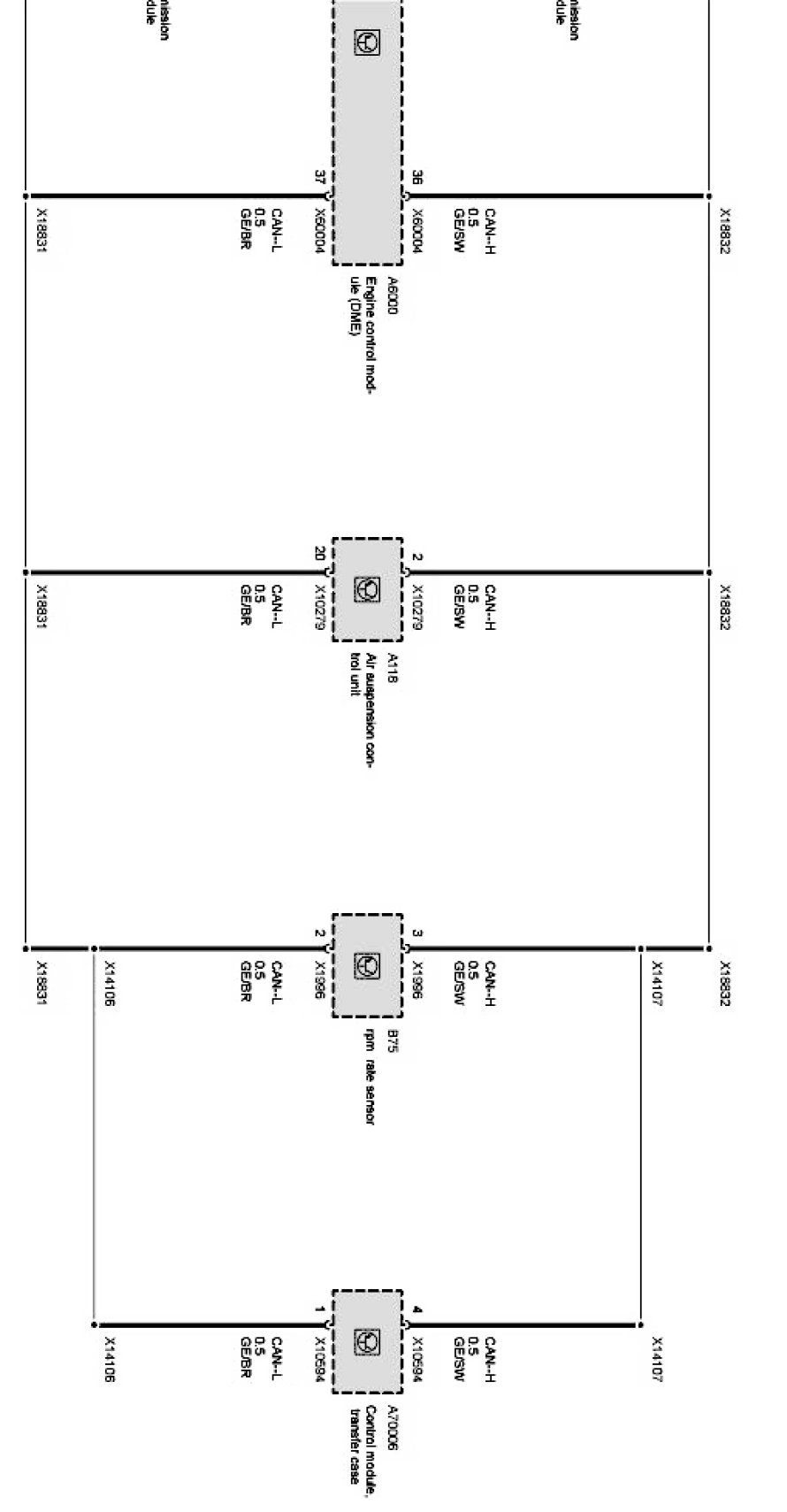

E53 Connector, CAN bus Part 2 Of 3:

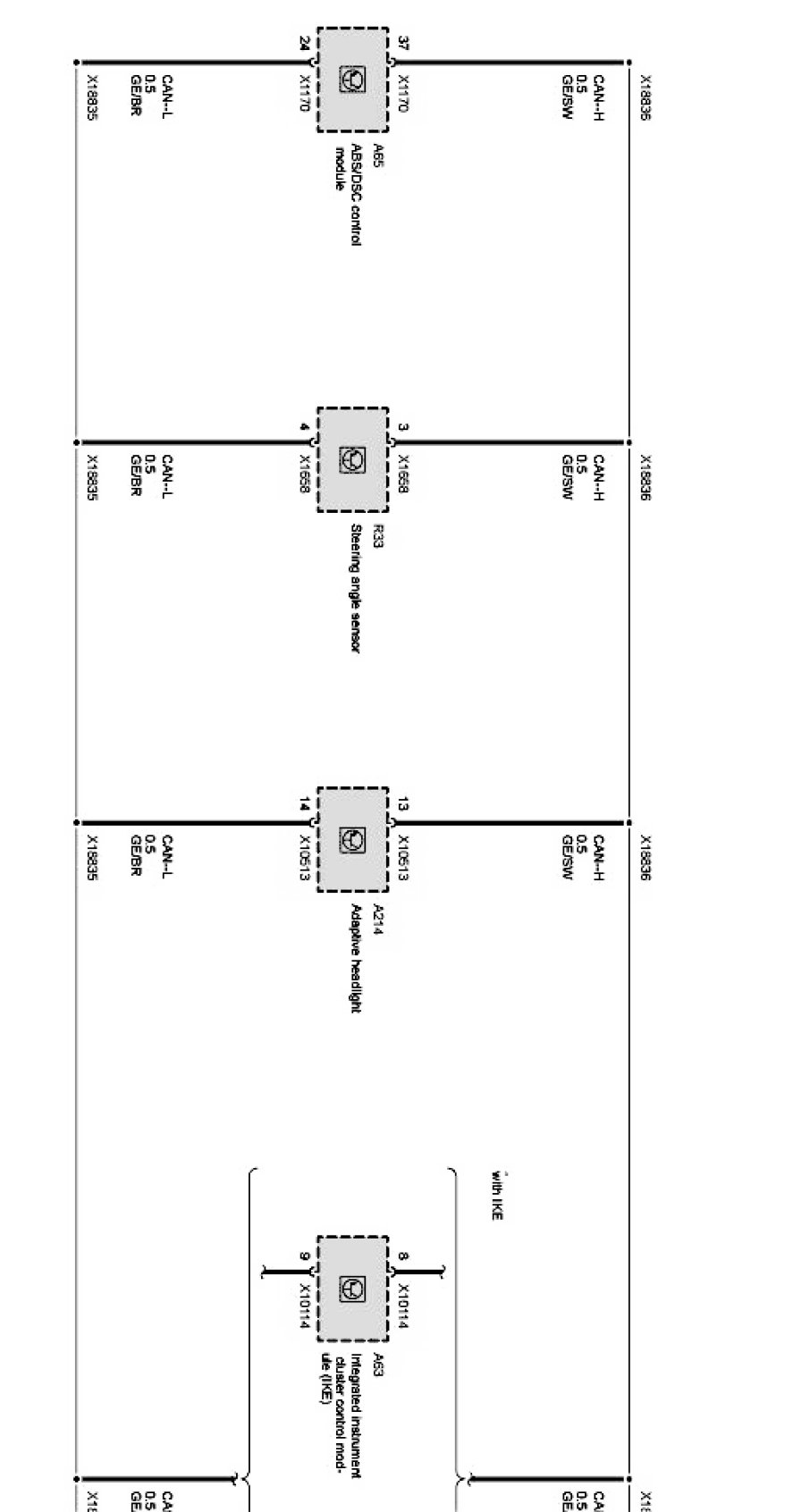

E53 Connector, CAN bus Part 3 Of 3:
