Transmission Control (DME Digital Motor Electronics MS43)

E53 Transmission control Part 1 Of 3:

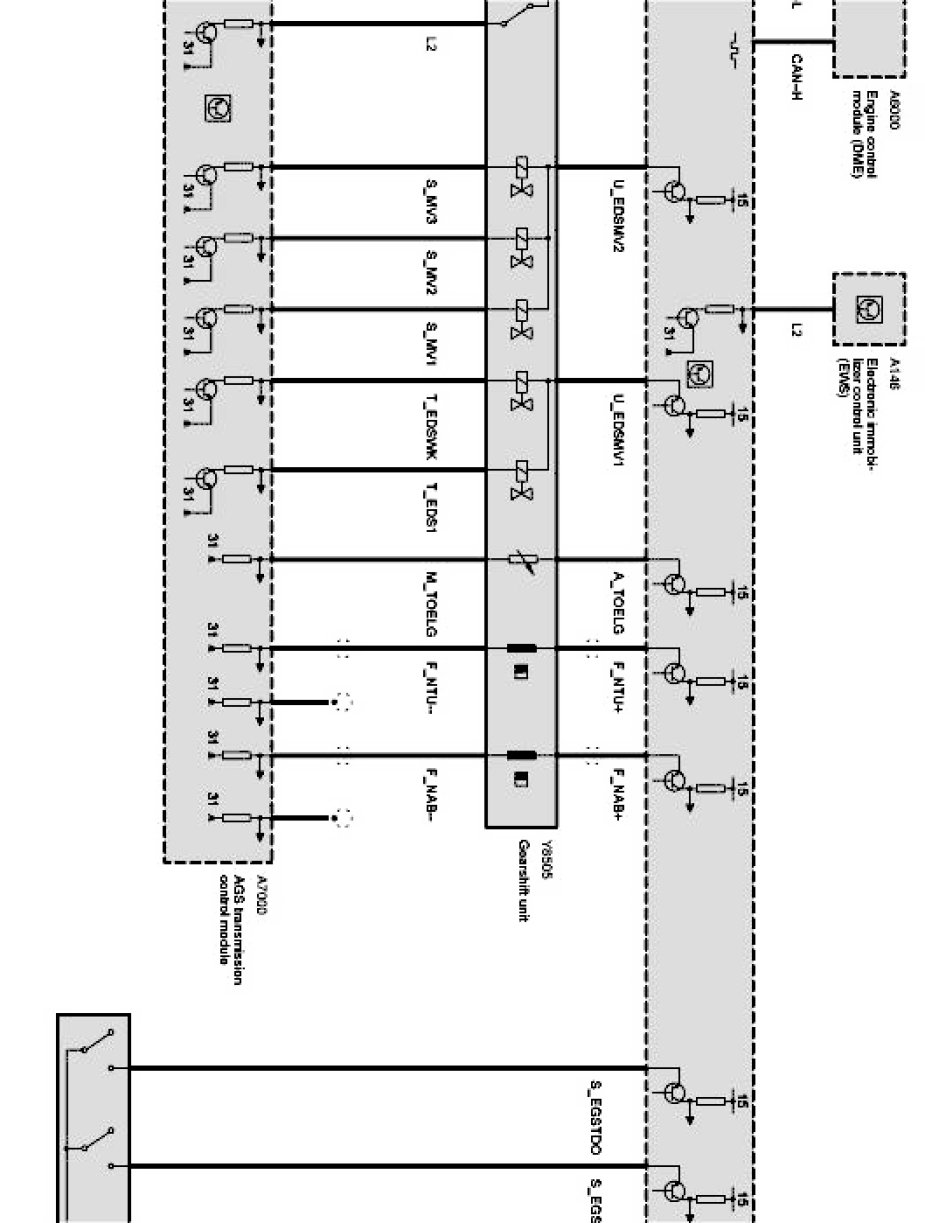

E53 Transmission control Part 2 Of 3:

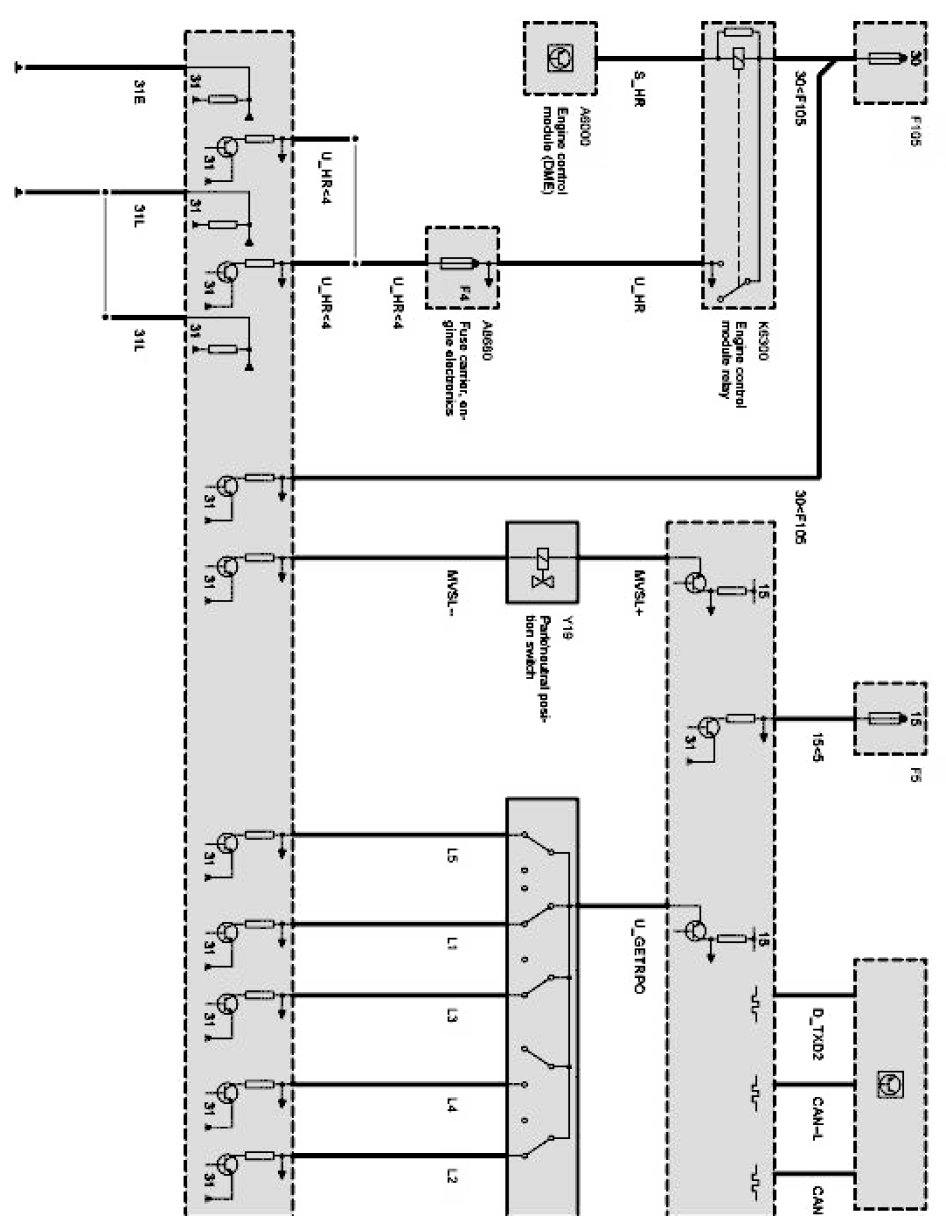

E53 Transmission control Part 3 Of 3:
