Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Control GS20 (EGS Transmission Control GM5) >> Steptronic Switch

Steptronic Switch

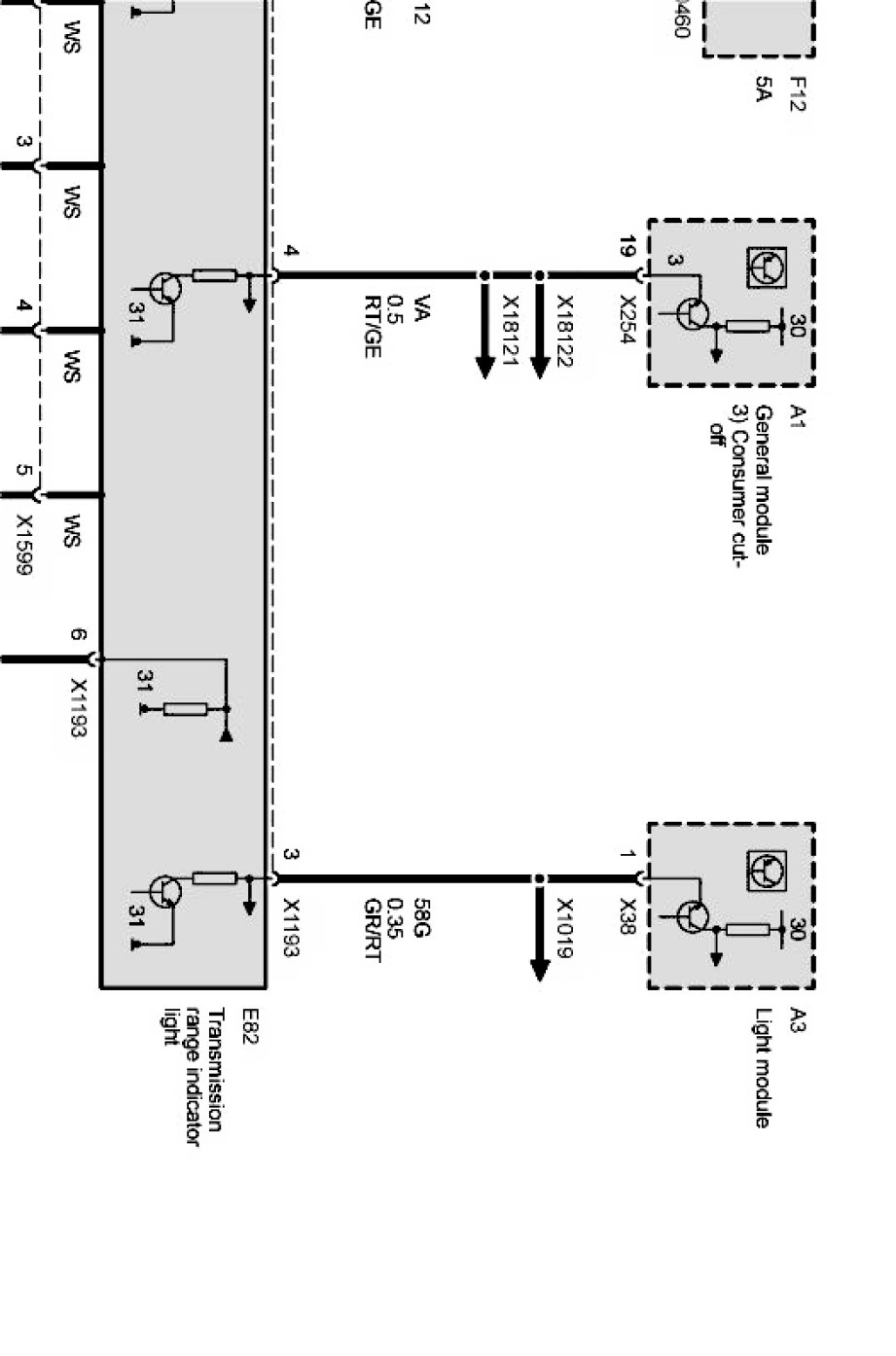

E53 Steptronic Gear indicator Part 1 Of 4:

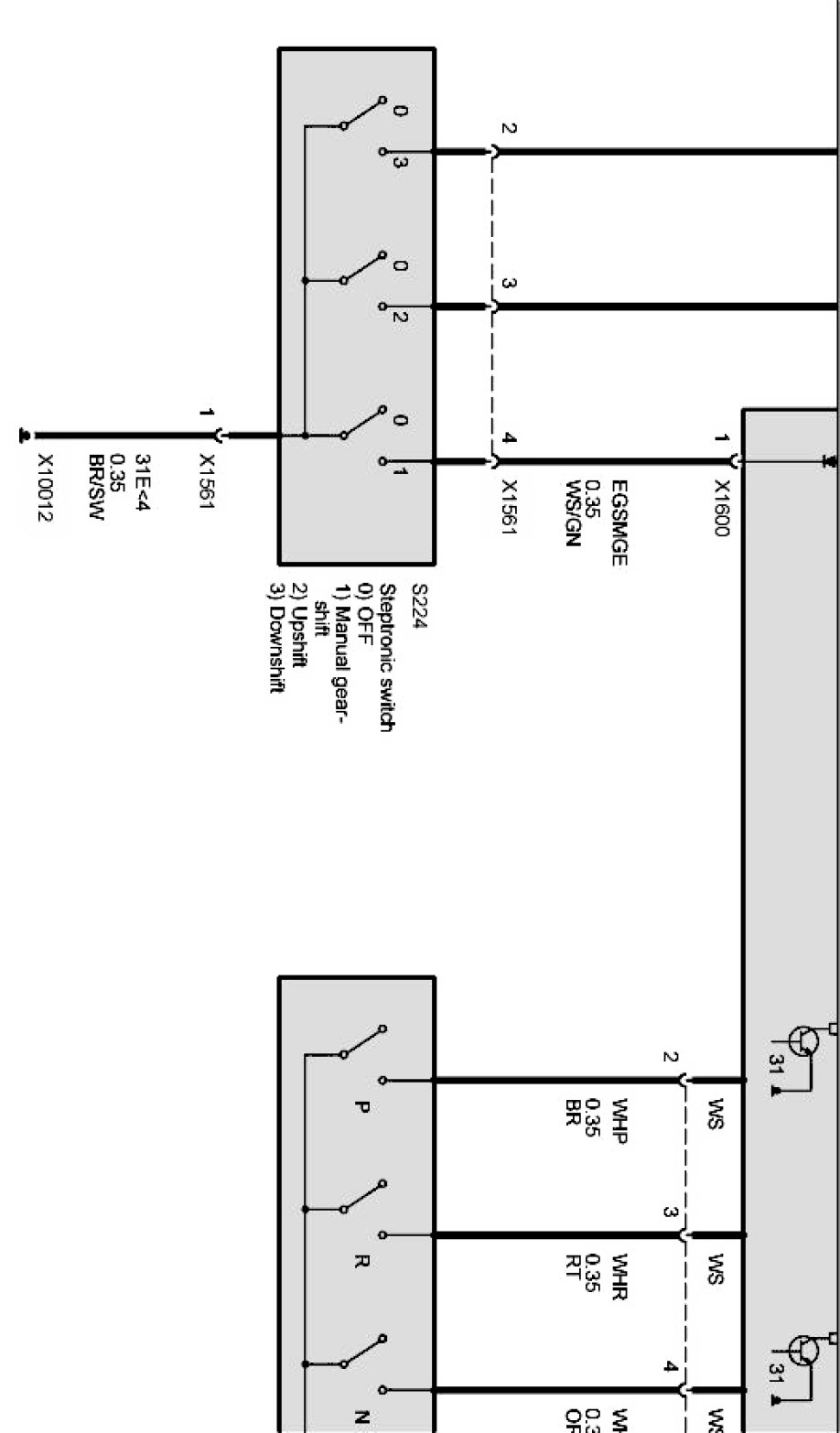

E53 Steptronic Gear indicator Part 2 Of 4:

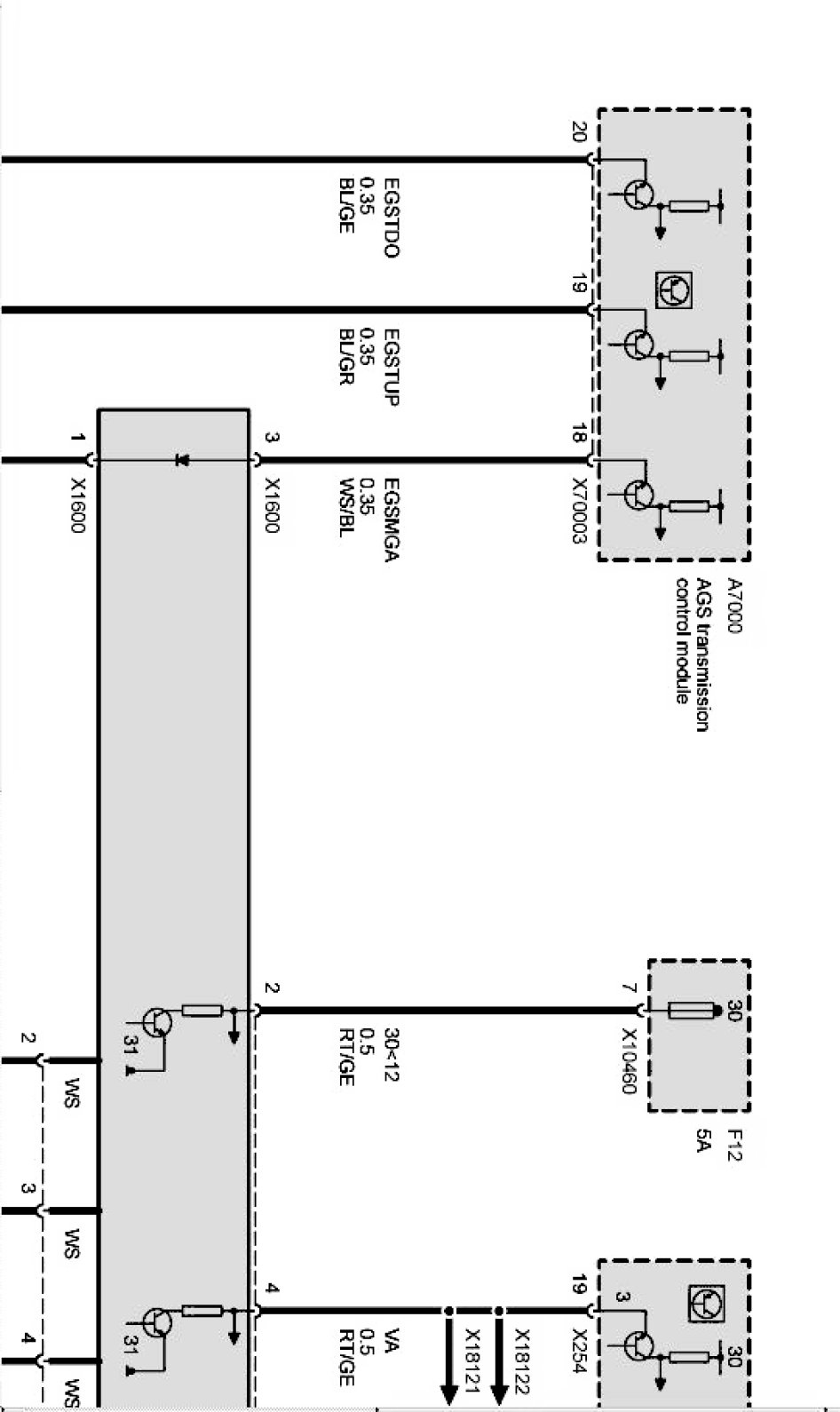

E53 Steptronic Gear indicator Part 3 Of 4:

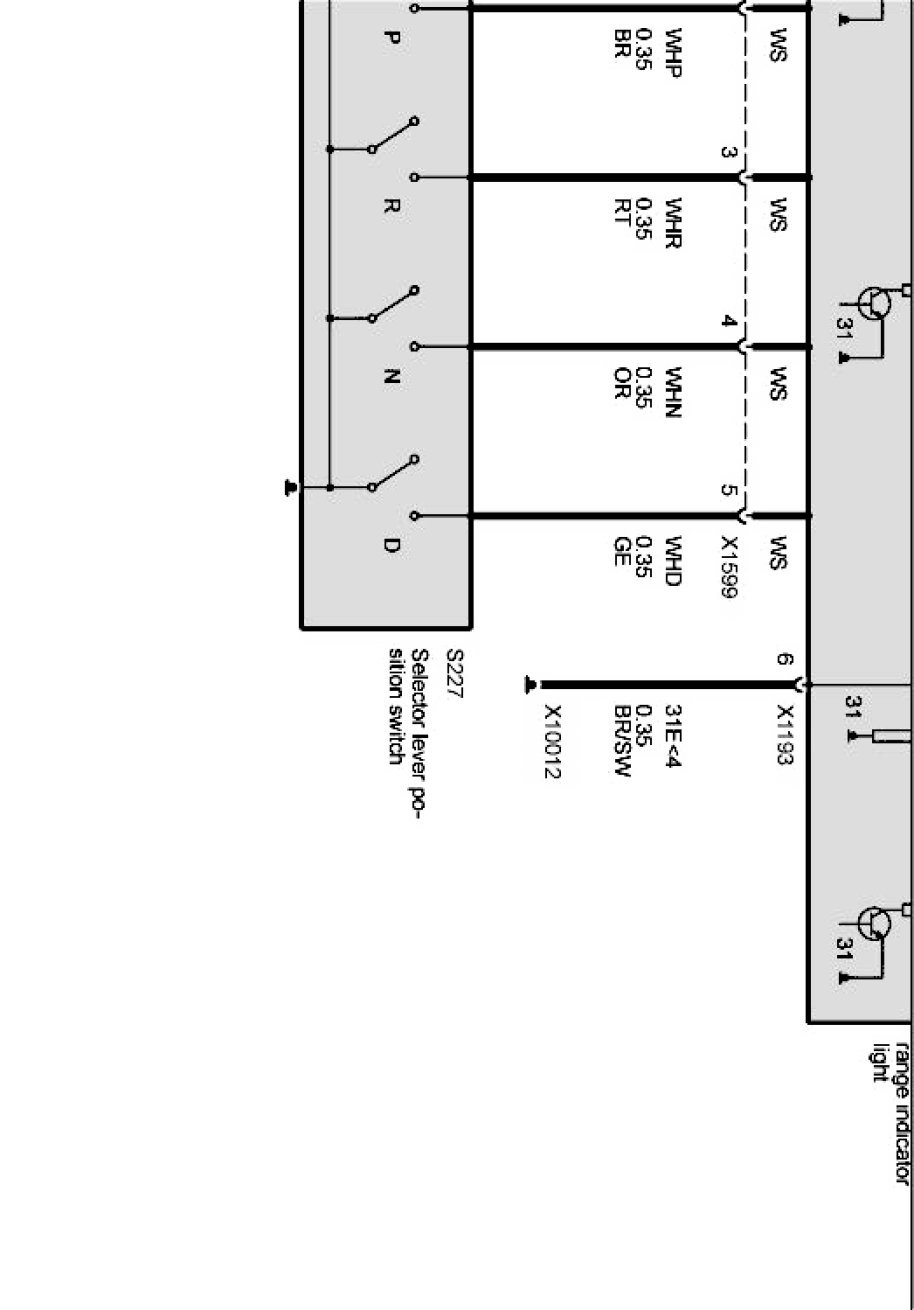

E53 Steptronic Gear indicator Part 4 Of 4:
