Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management MS43 (DME Digital Motor Electronics MS43 (M54 Engine)) >> Vanos Solenoid Valve, Inlet

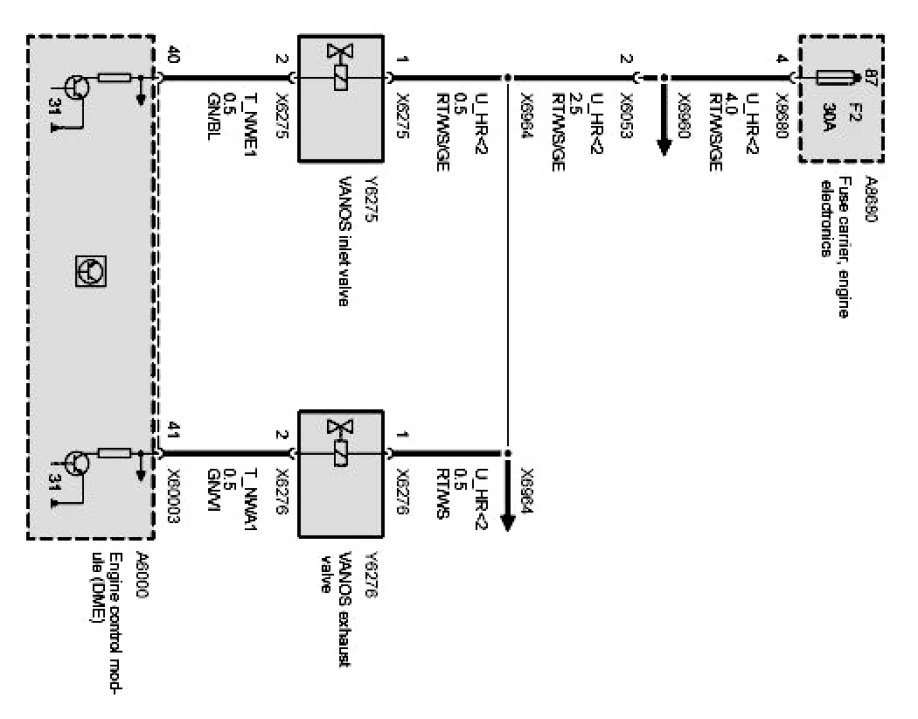

Vanos Solenoid Valve, Inlet

E53 VANOS valves Part 1 Of 1:
