Engine Management MS43 (DME Digital Motor Electronics MS43 (M54 Engine))
>>
Secondary Air Injection Pump
>>
Secondary Air System (As of 09/03 Without Automatic Transmission)
Secondary Air System (As of 09/03 Without Automatic Transmission)

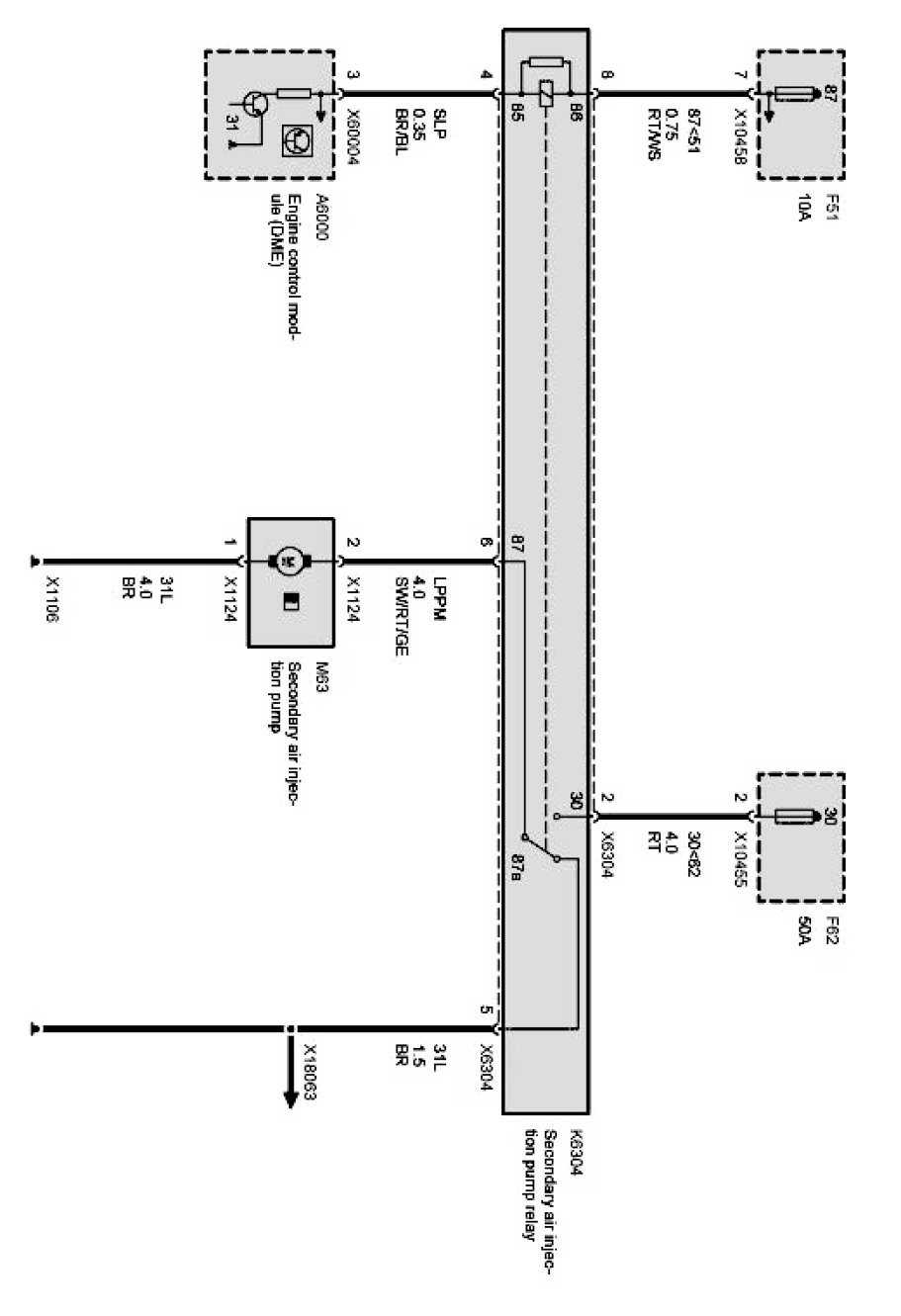

E53 Secondary-air system Part 1 Of 1:
