Secondary Air System (As of 09/03 With Automatic Transmission)
Secondary Air System (As of 09/03 With Automatic Transmission)

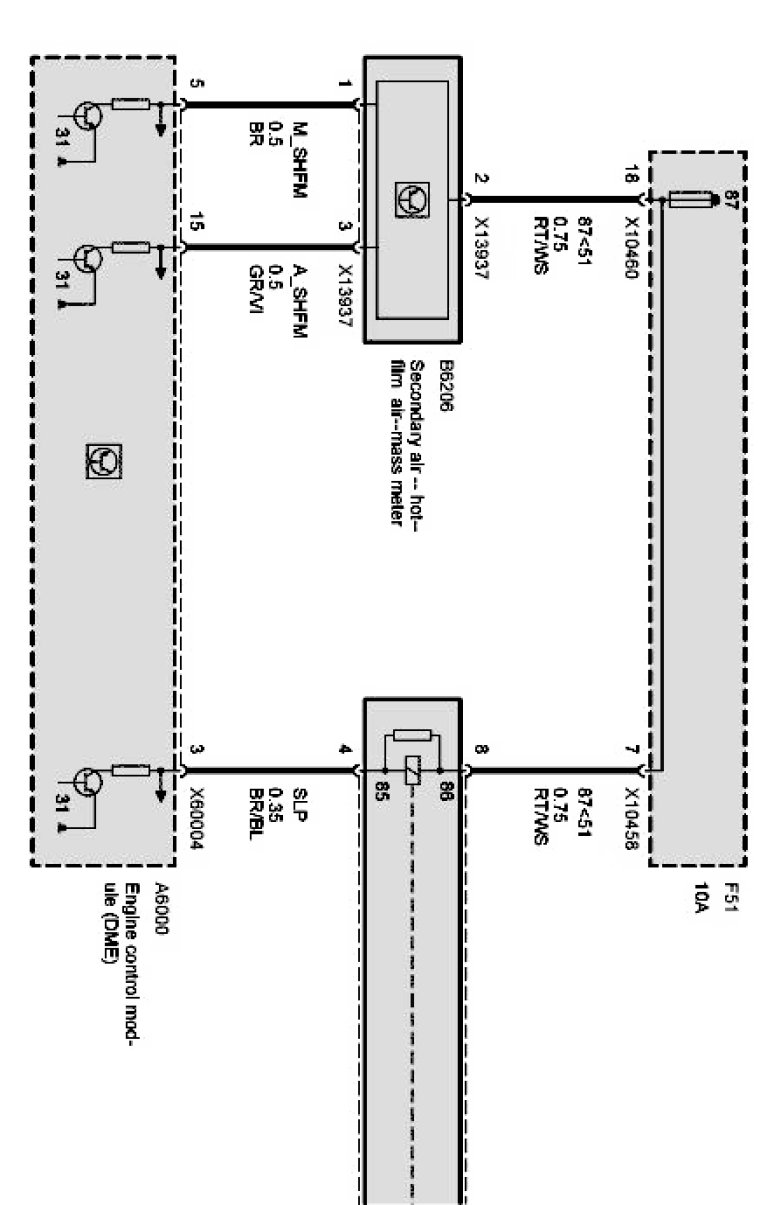

E53 Secondary-air system Part 1 Of 2:

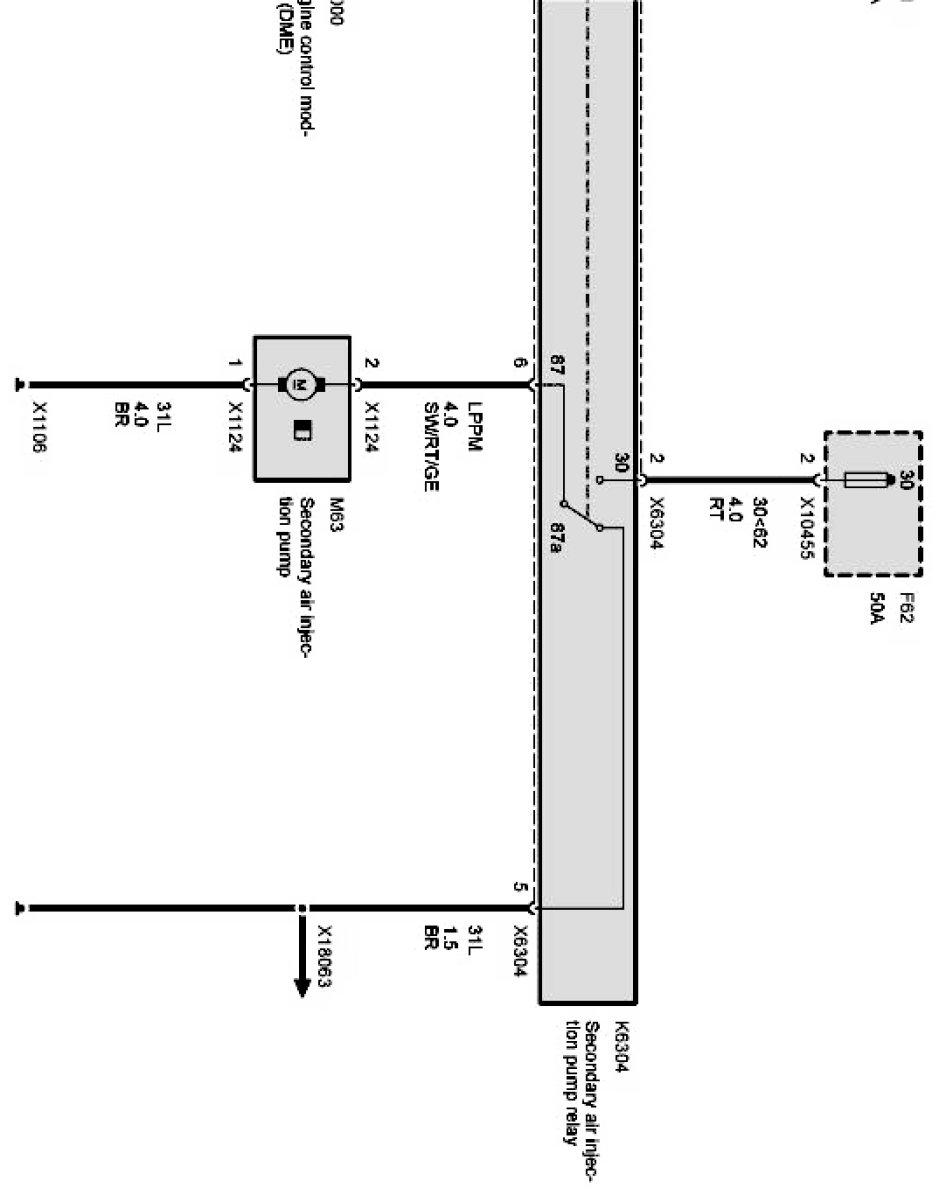

E53 Secondary-air system Part 2 Of 2:
