Oxygen Sensor, Bank 1, After CAT. Converter

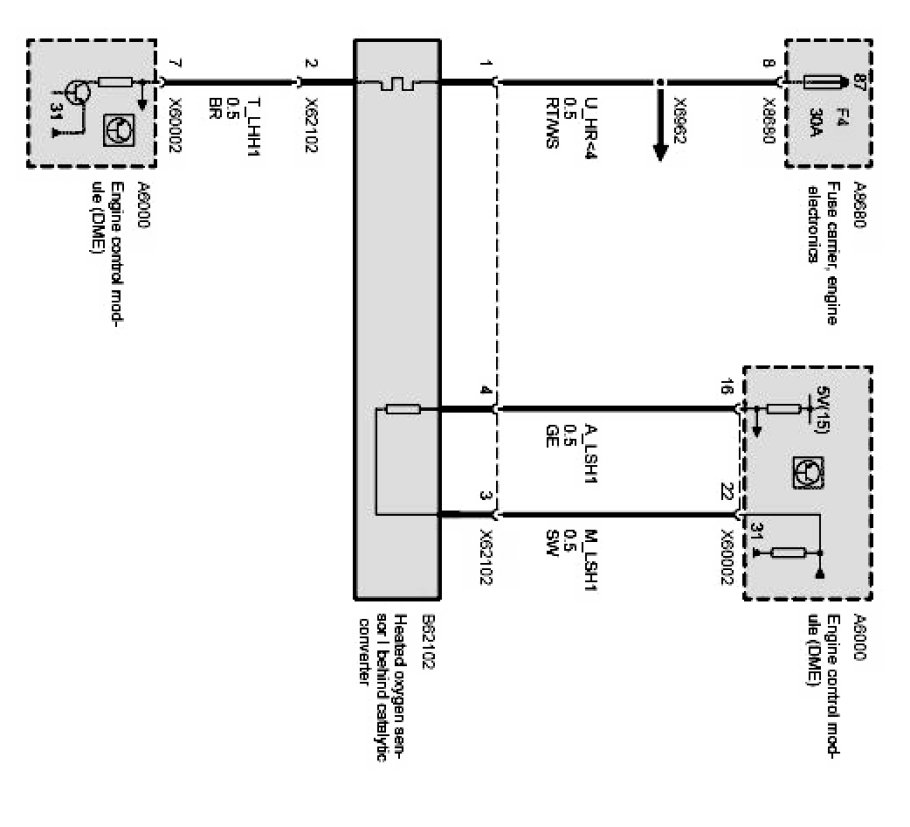

E53 Oxygen sensor I behind catalytic converter Part 1 Of 1:
