Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management MS43 (DME Digital Motor Electronics MS43 (M54 Engine)) >> Mixture Preparation/Ignition (Up to 09/03)

Mixture Preparation/Ignition (Up to 09/03)

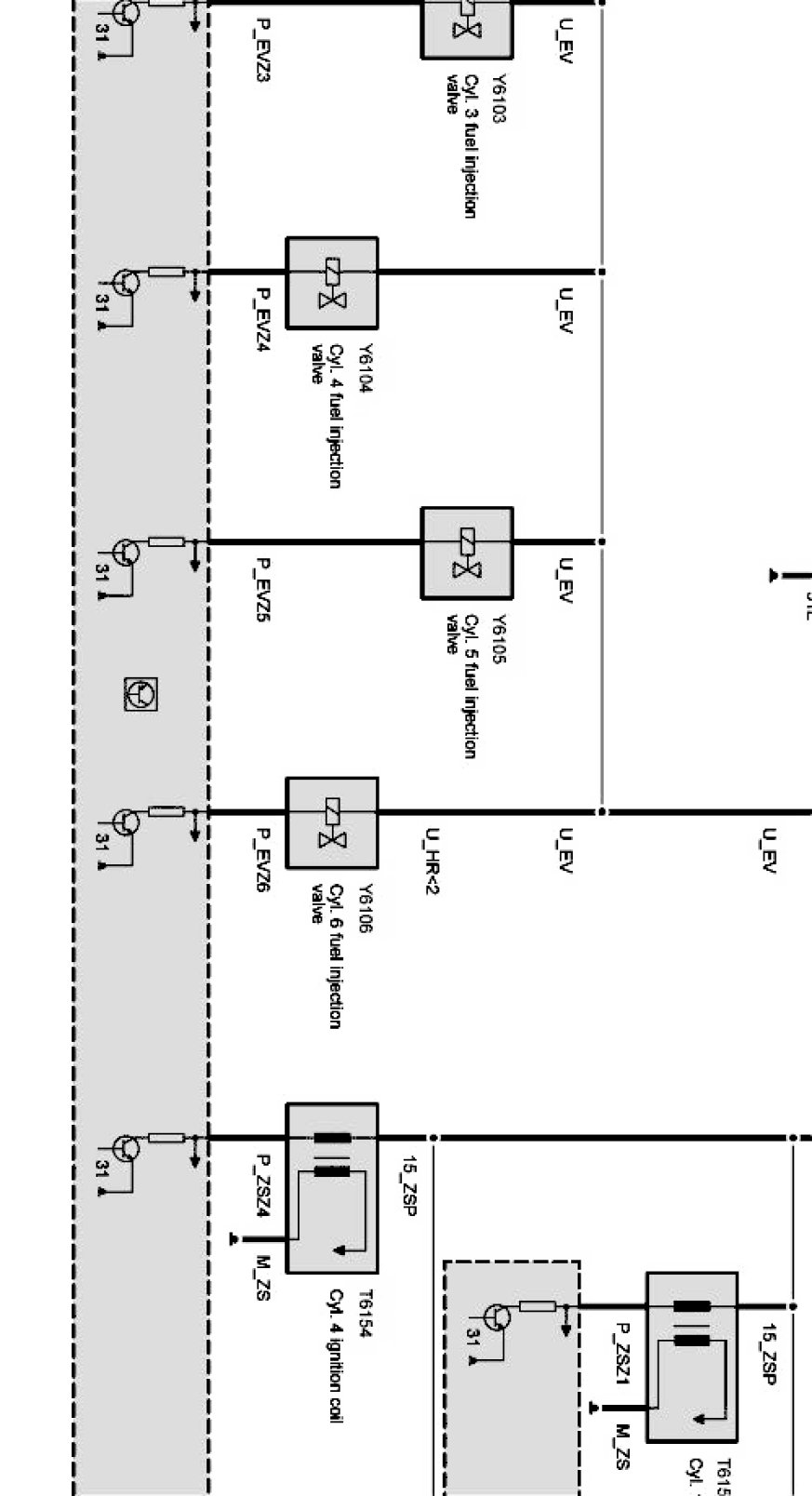

E53 Mixture preparation/ignition Part 1 Of 6:

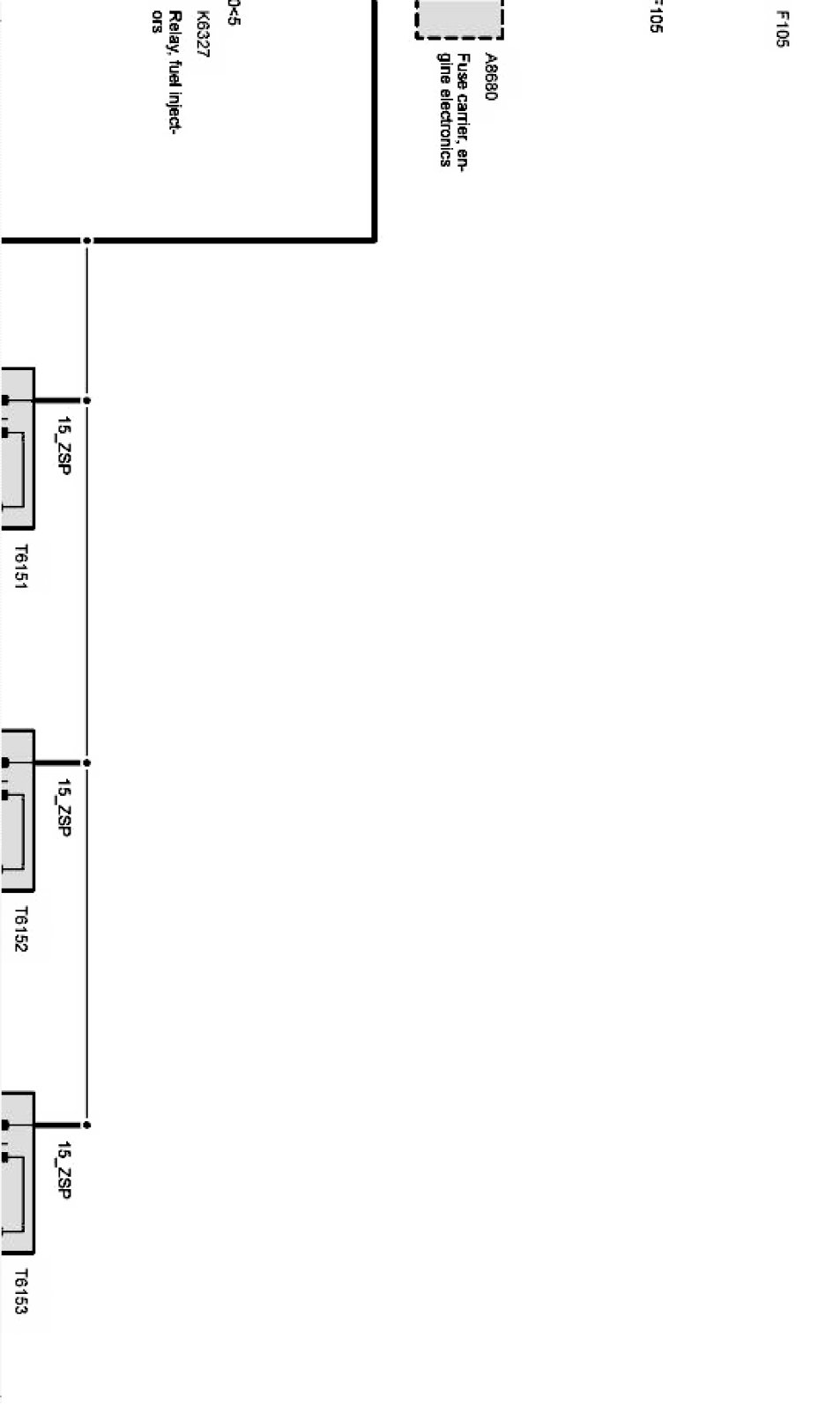

E53 Mixture preparation/ignition Part 2 Of 6:

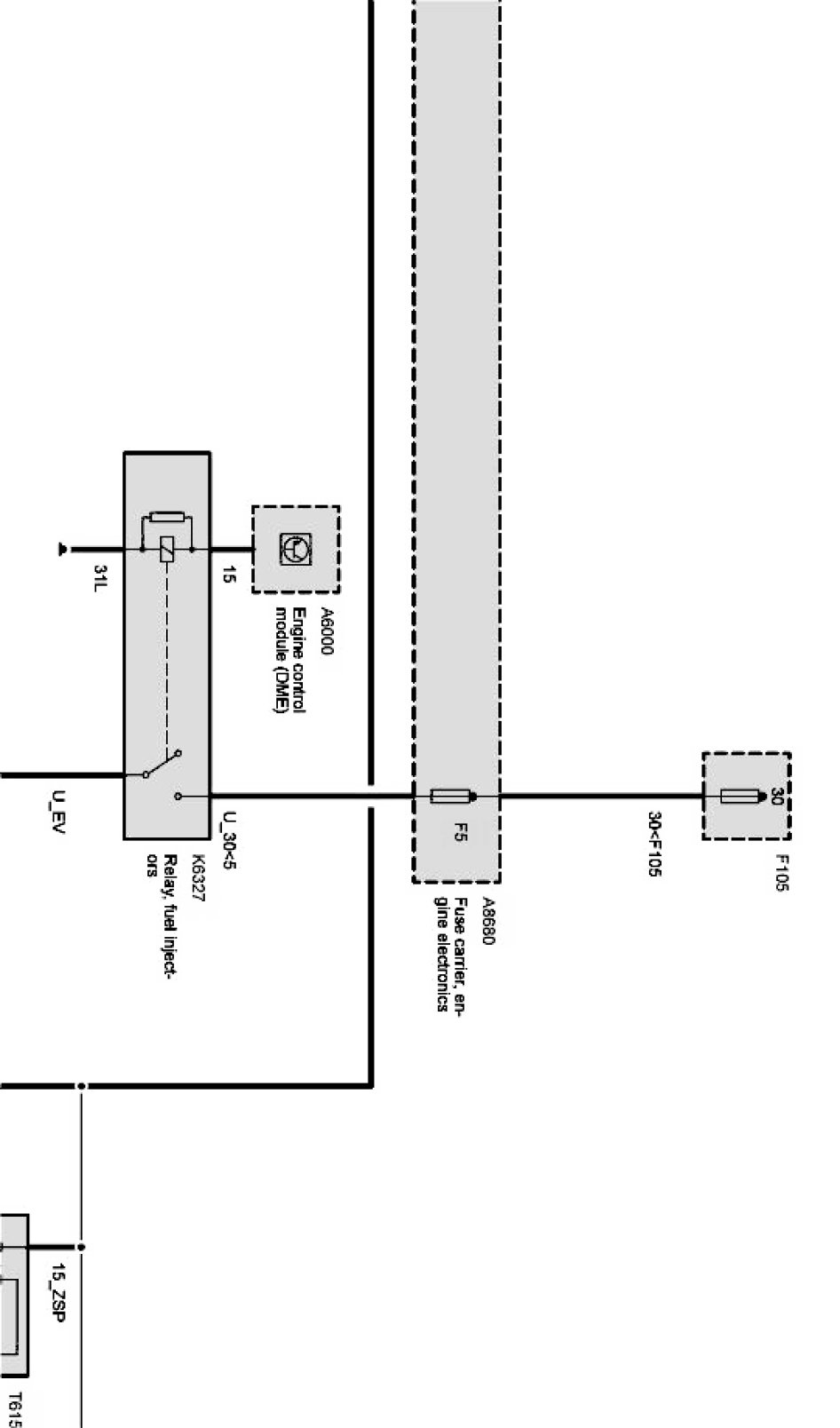

E53 Mixture preparation/ignition Part 3 Of 6:

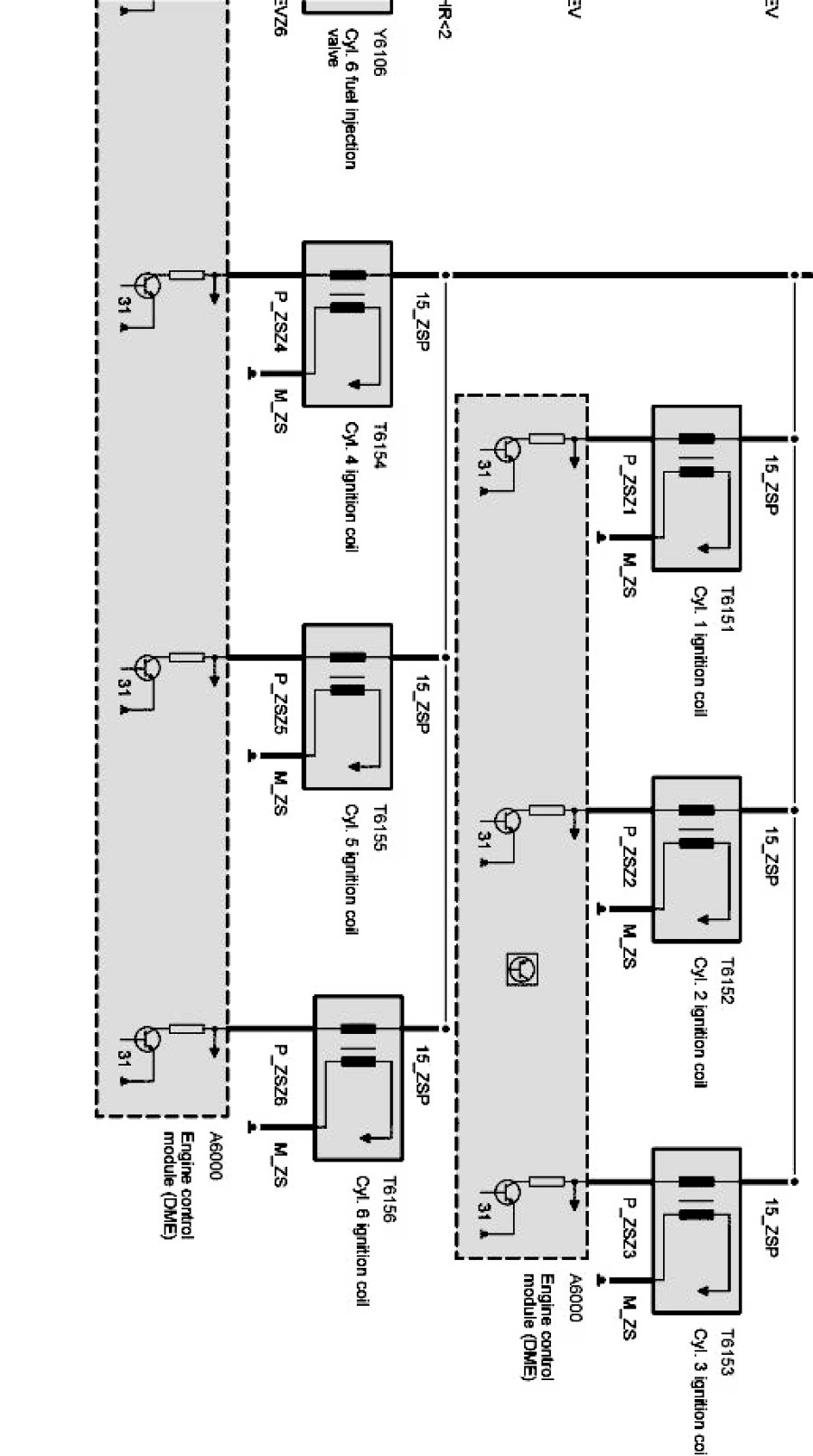

E53 Mixture preparation/ignition Part 4 Of 6:

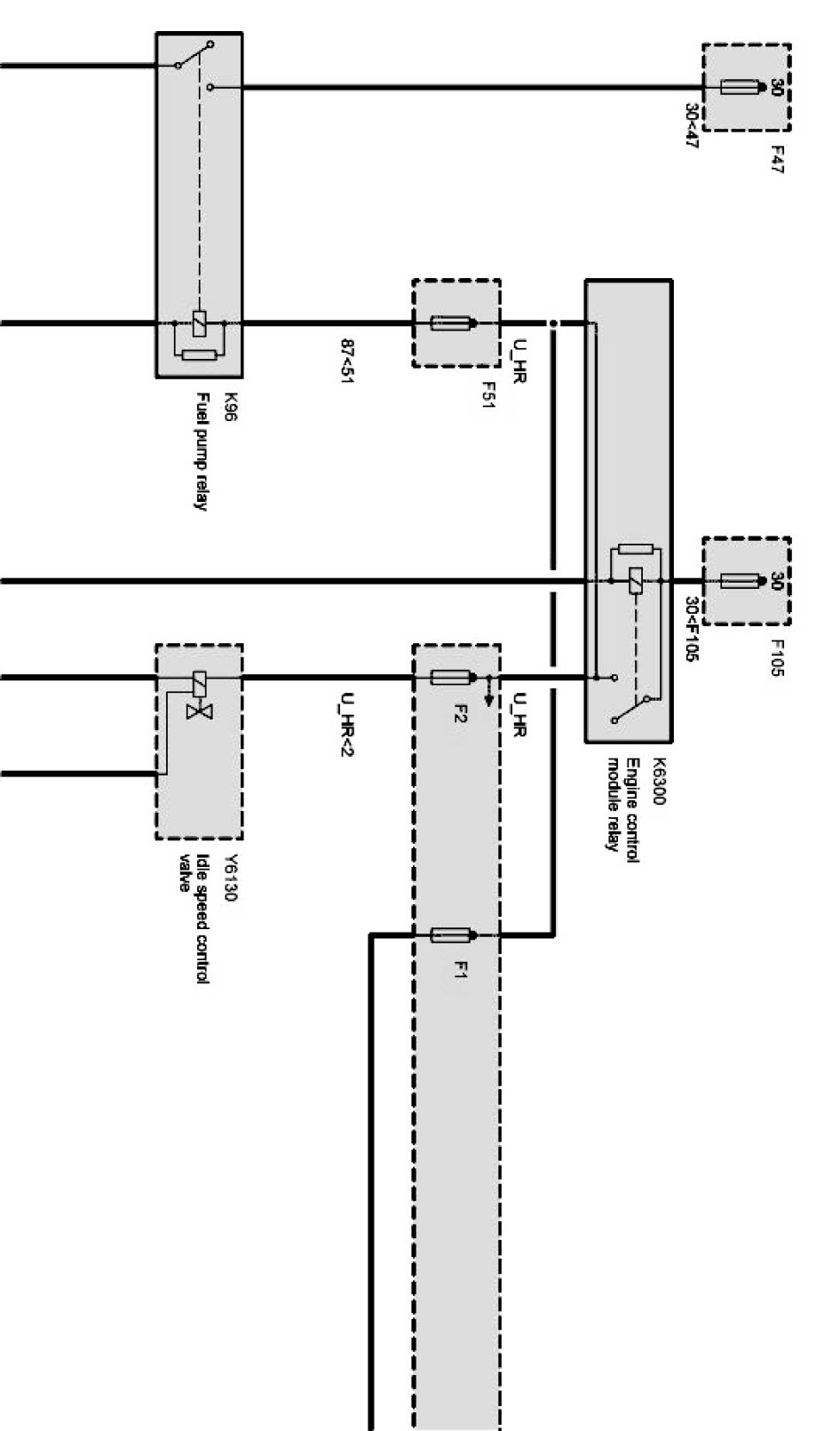

E53 Mixture preparation/ignition Part 5 Of 6:



E53 Mixture preparation/ignition Part 6 Of 6:
