Engine Management, Signals/Auxiliary Signals (Automatic Transmission As of 09/03)

E53 Engine management, signals/auxiliary signals Part 1 Of 3:



E53 Engine management, signals/auxiliary signals Part 2 Of 3:

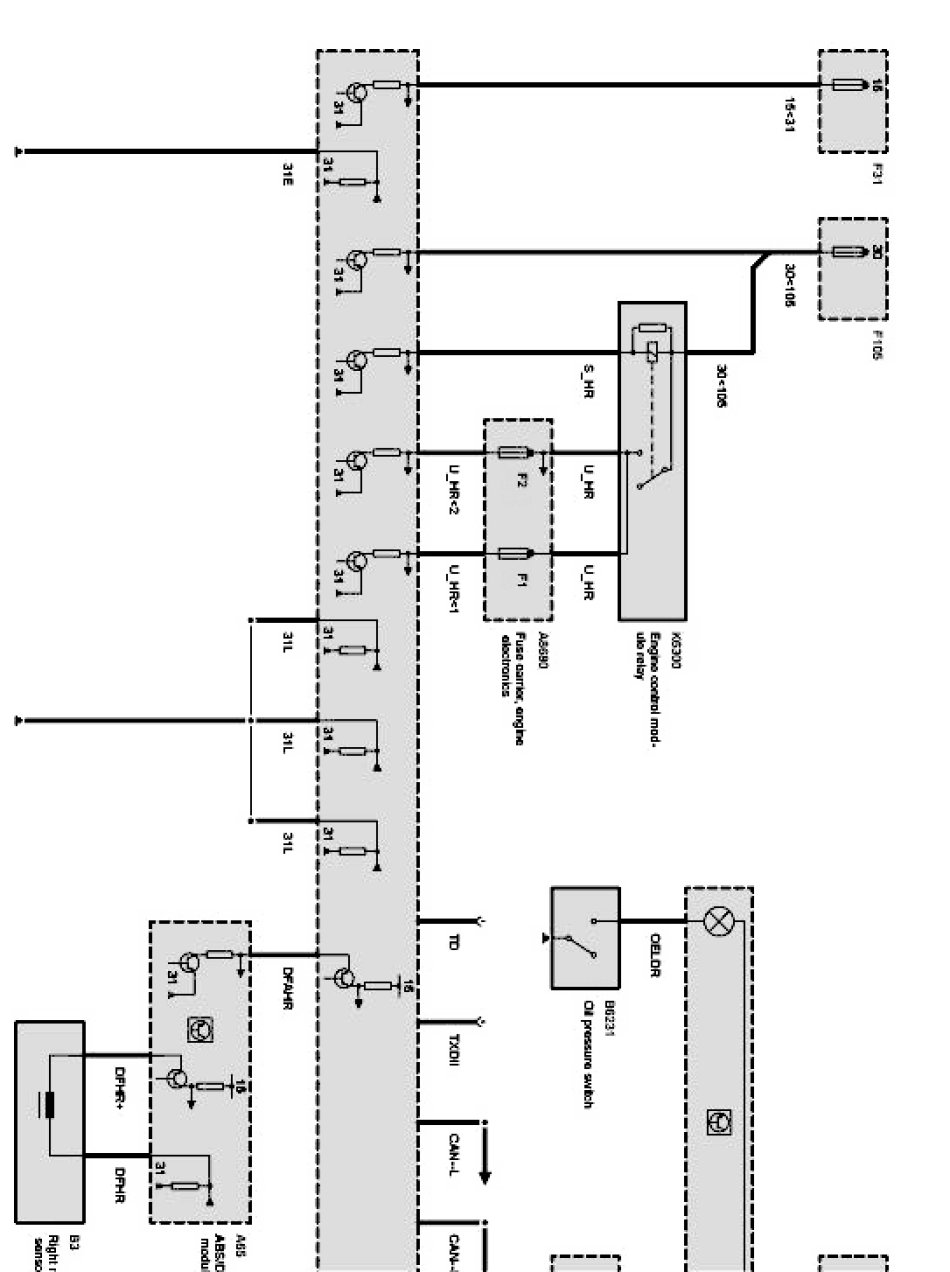

E53 Engine management, signals/auxiliary signals Part 3 Of 3:
