Tire Pressure Control System (RDC)
Tire Pressure Control System (RDC)

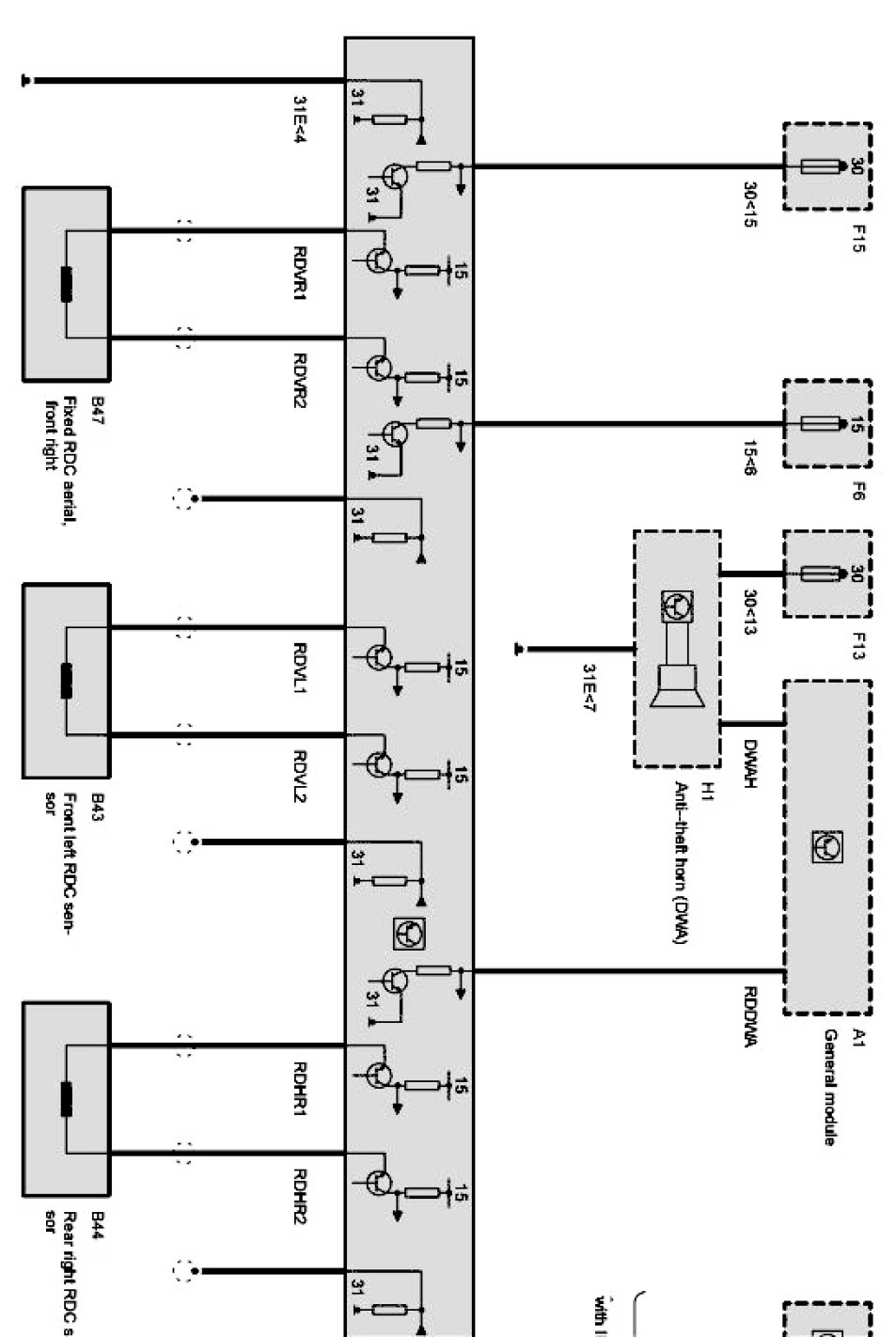

E53 Tire Pressure Control System (RDC) Part 1 Of 2:

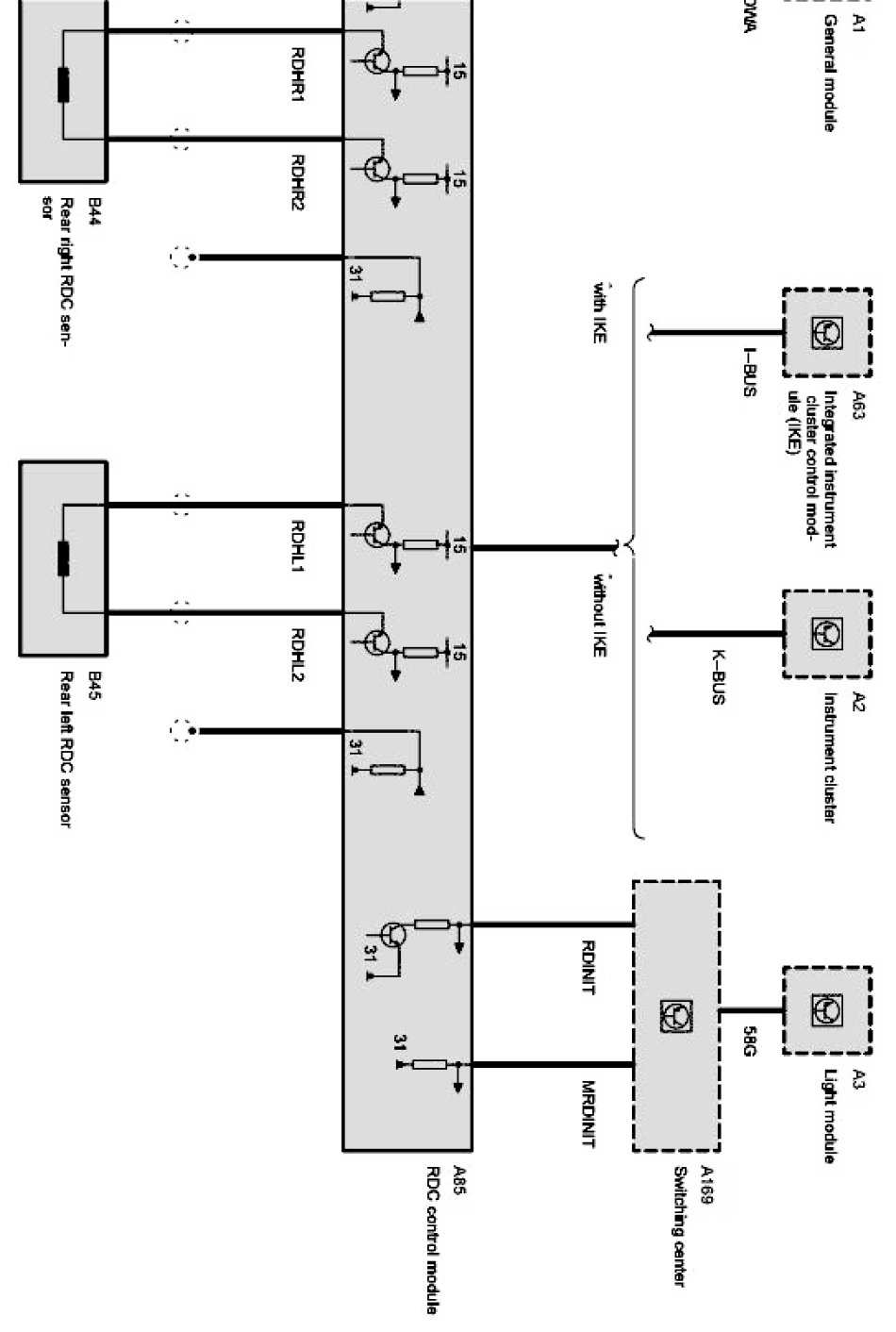

E53 Tire Pressure Control System (RDC) Part 2 Of 2:
