Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Wheel Slip Control System >> DSC5.7 Dynamic Stability Control With Off-Road Vehicle or All-Wheel Drive >> Interfaces, Signals >> ABS/DSC Indicator Lamp (KOM Instrument Cluster)

ABS/DSC Indicator Lamp (KOM Instrument Cluster)

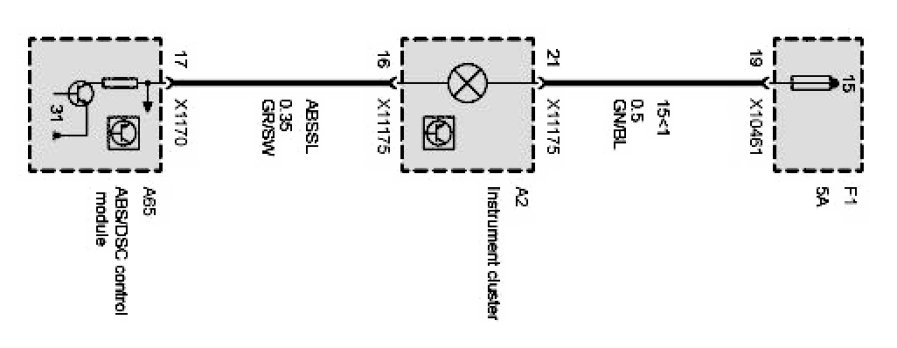

E53 ABS/DSC Indicator Lamp Part 1 Of 1:
