Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Suspension and Damping >> Single-Axle Air Suspension EHC (Electronic Height Control) >> Control Module, Air Suspension, Supply

Control Module, Air Suspension, Supply

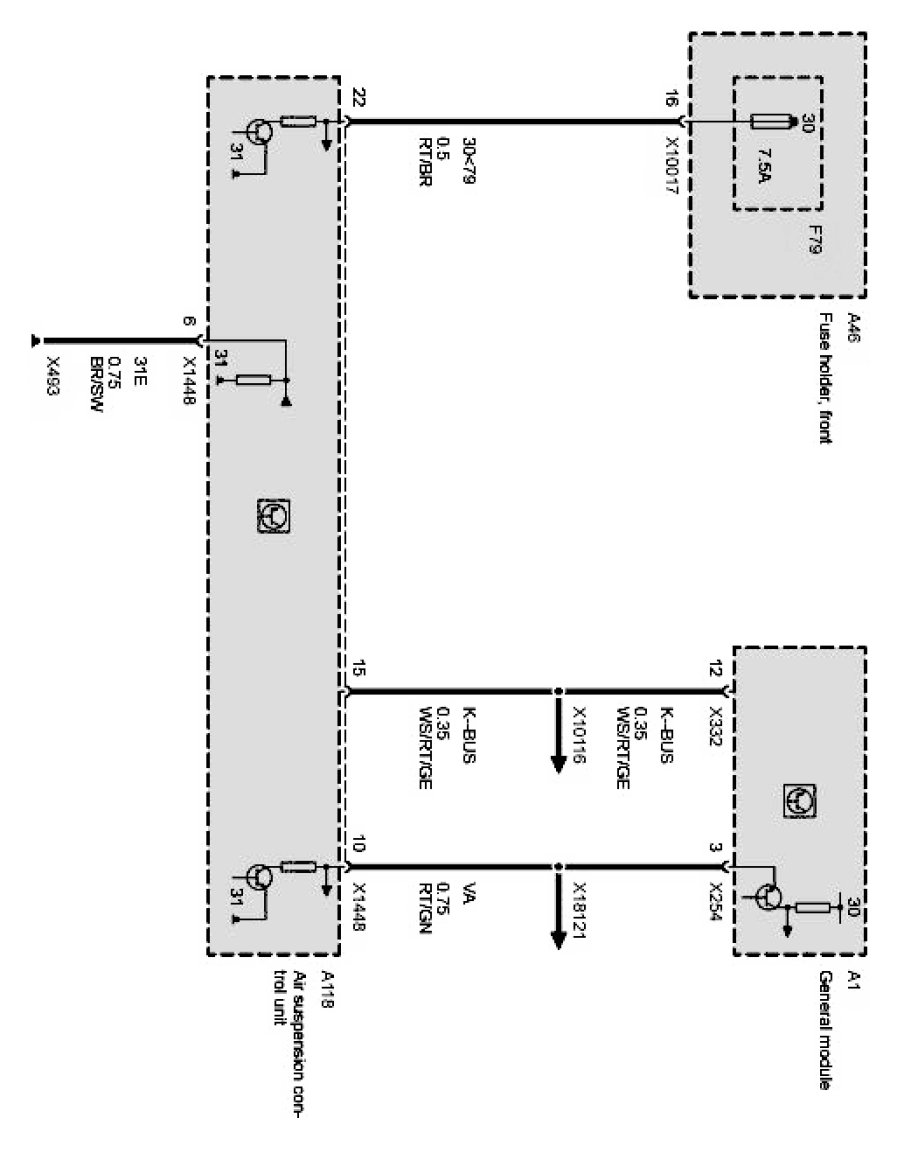

E53 Supply Air Suspension Part 1 Of 1:
