BMW
>>
2006
>>
X5 (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Signal and Warning Functions
>>
Horn
>>
Right Horn
Right Horn

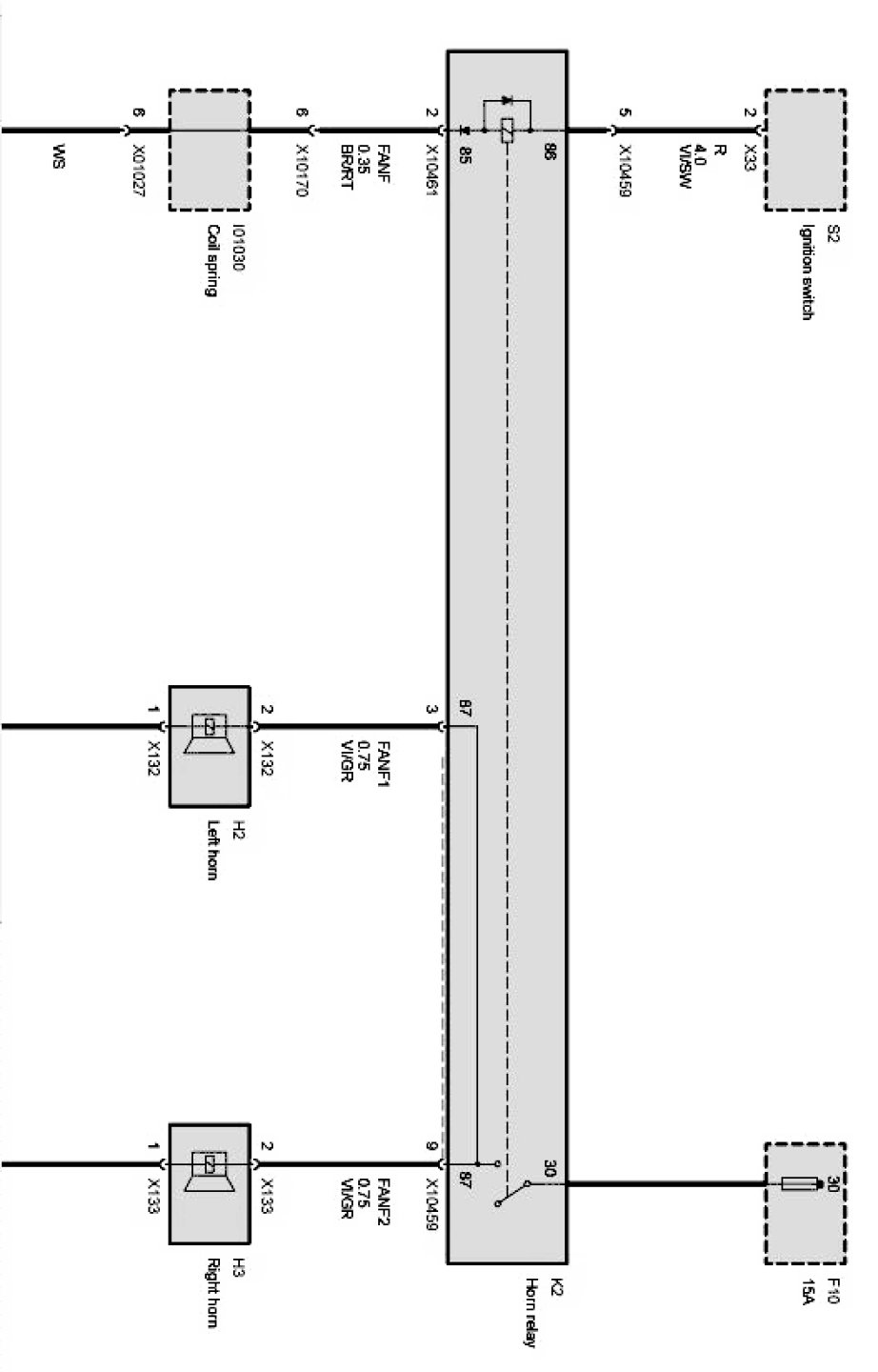

E53 Horns Part 1 Of 2:

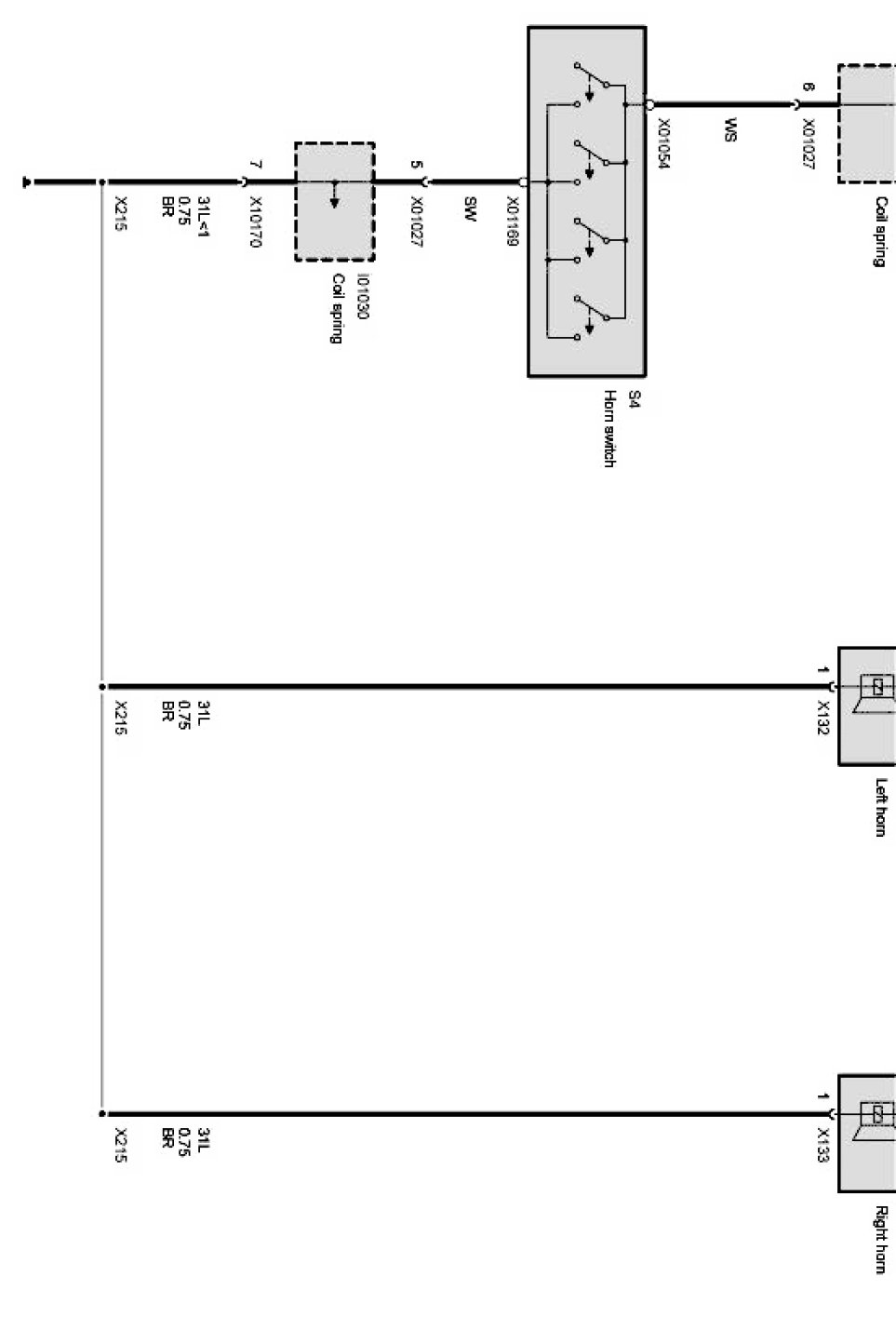

E53 Horns Part 2 Of 2:
