A169 Switching Center (As of 09/03)

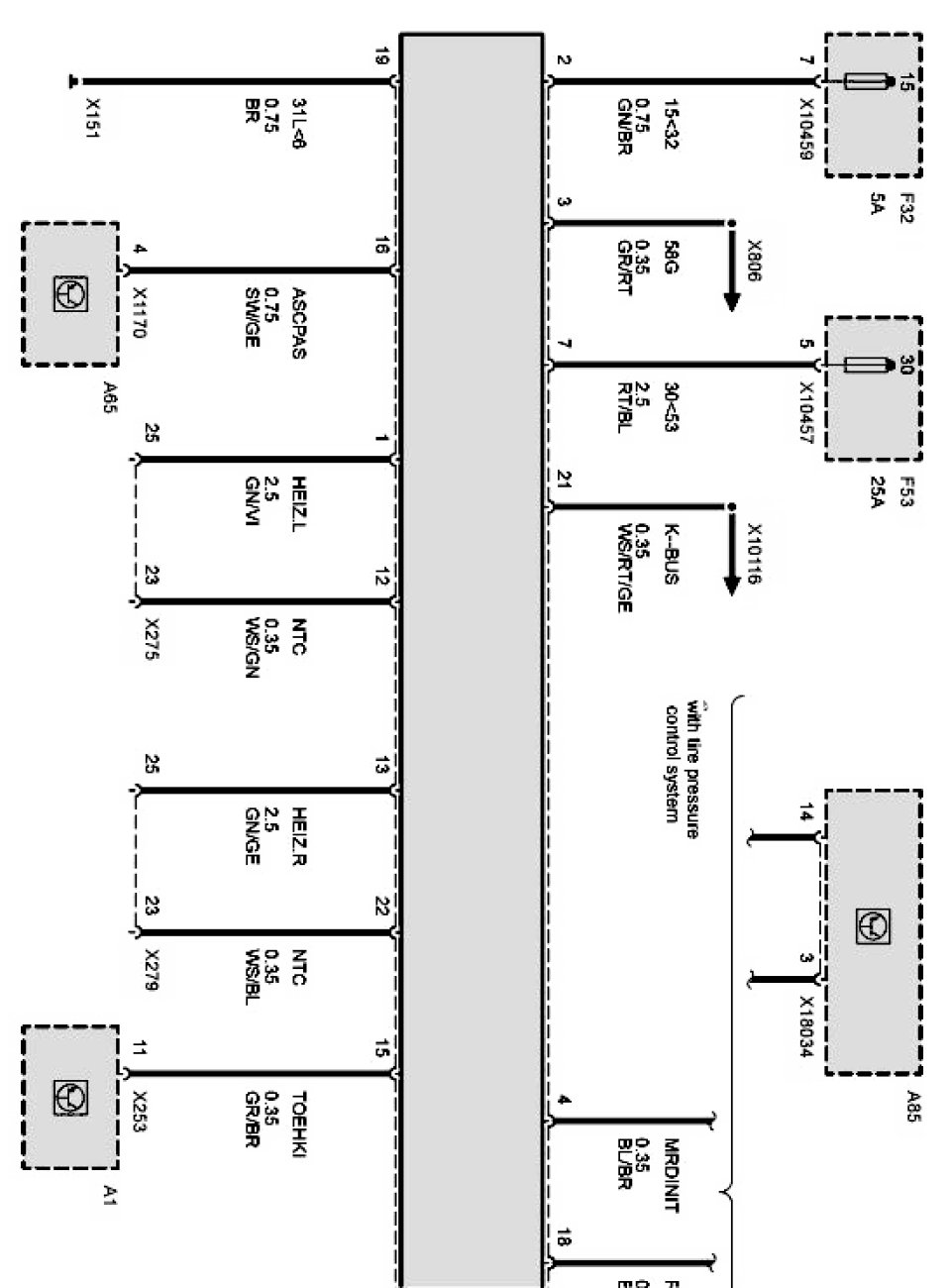

E53 A169 Switching center Part 1 Of 3:

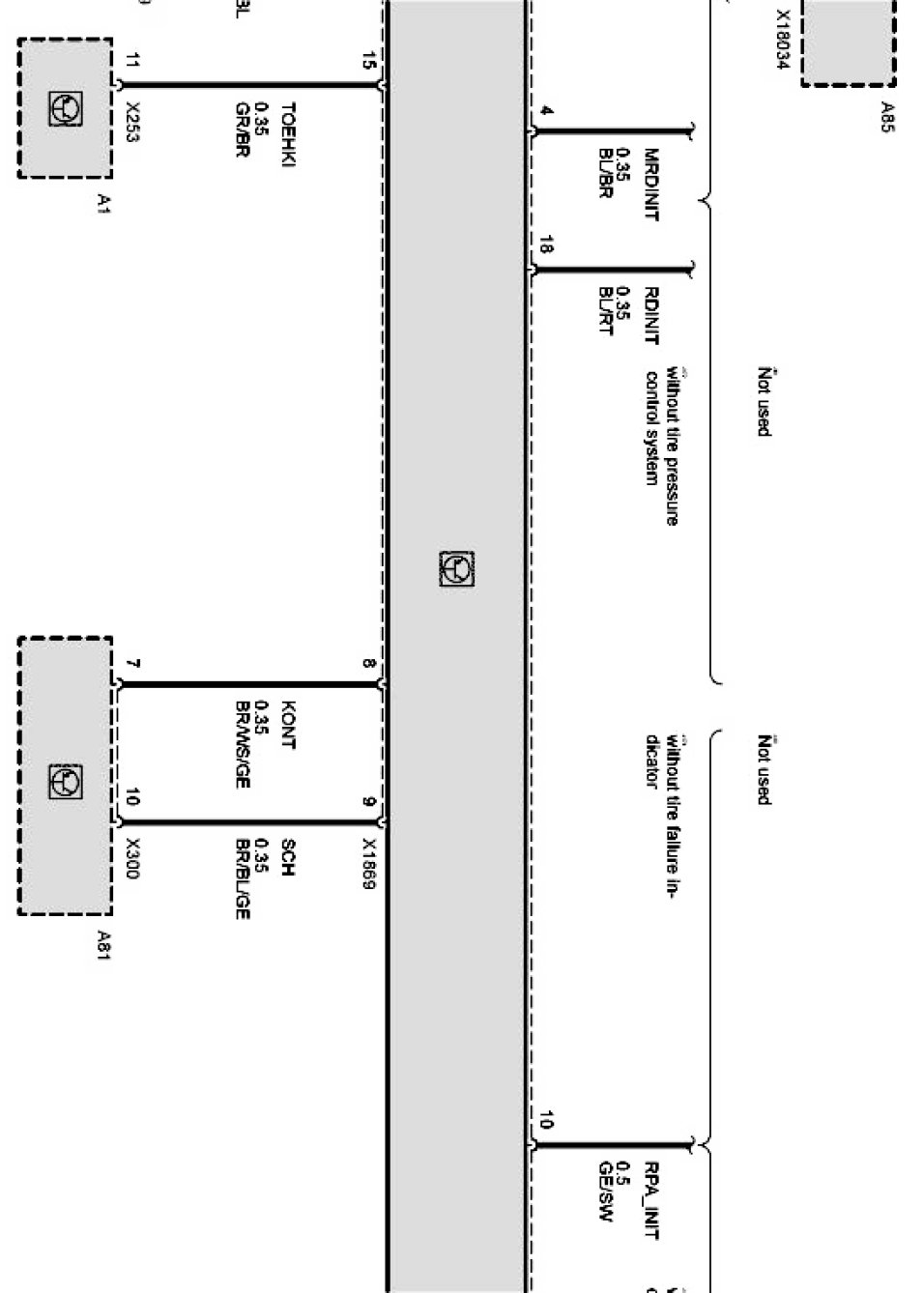

E53 A169 Switching center Part 2 Of 3:

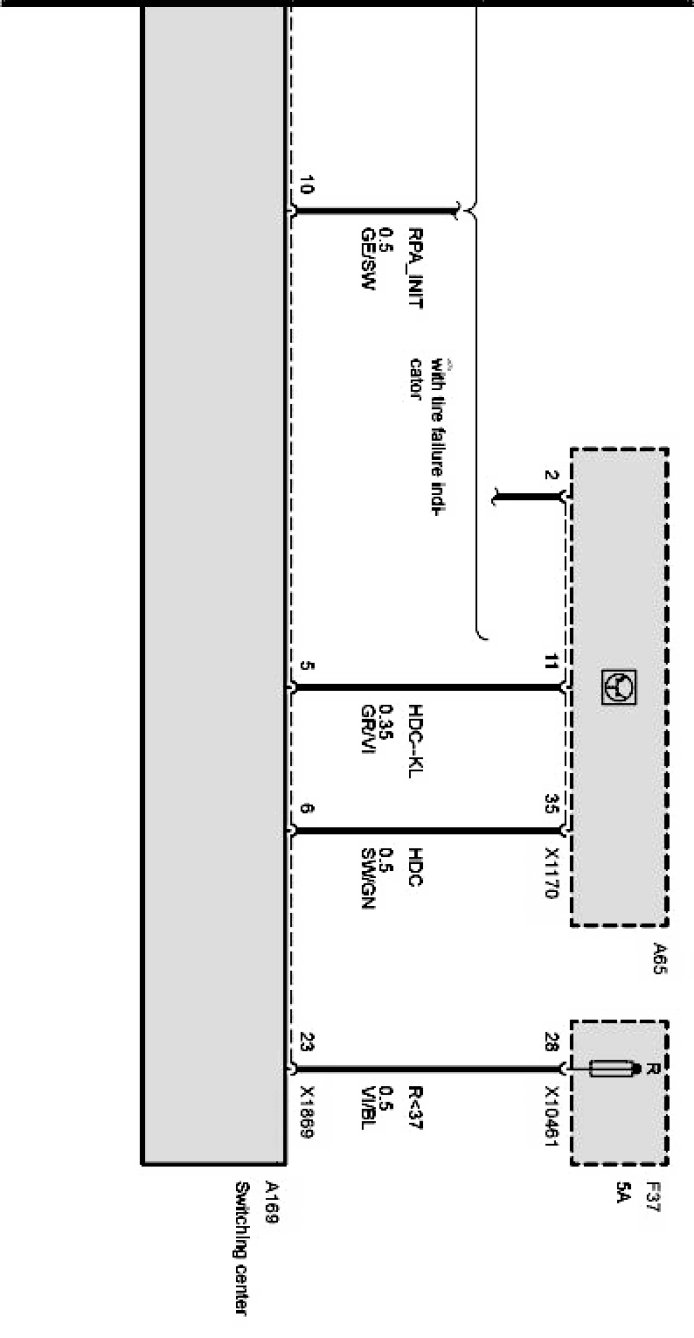

E53 A169 Switching center Part 3 Of 3:
