Passenger's Seat Adjustment Without Memory (Without Comfort Seat)

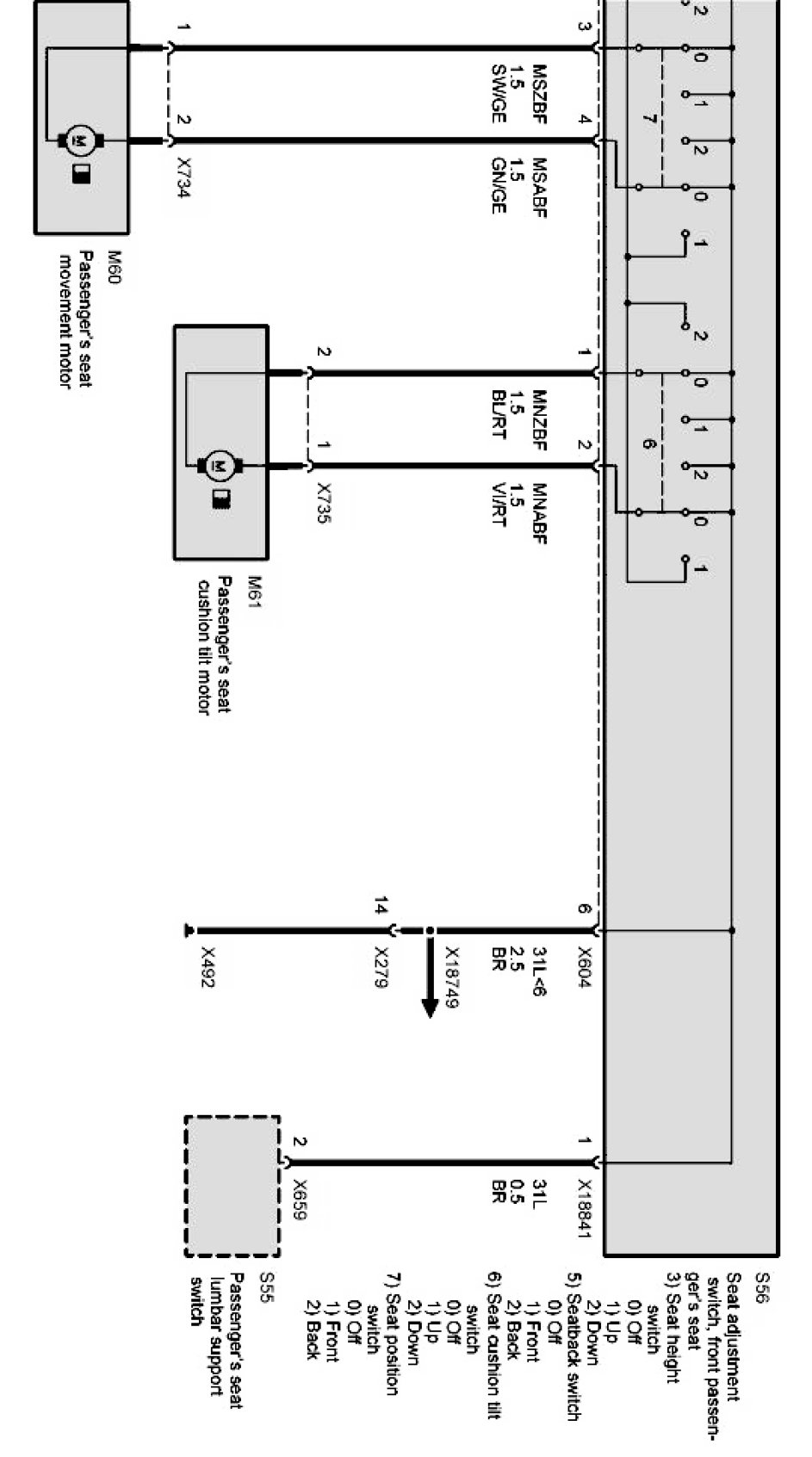

E53 Passenger-seat adjuster without memory Part 1 Of 3:

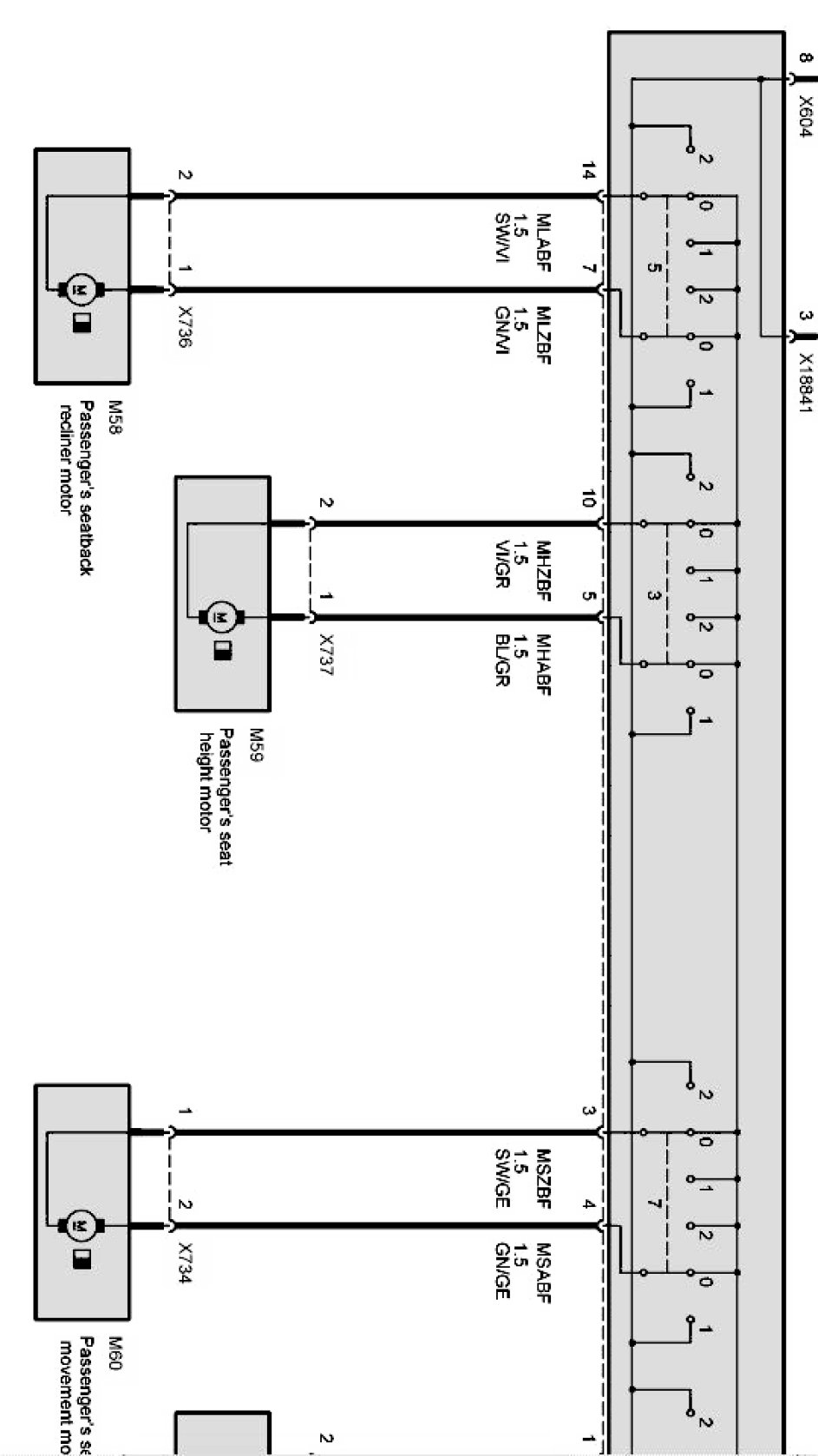

E53 Passenger-seat adjuster without memory Part 2 Of 3:

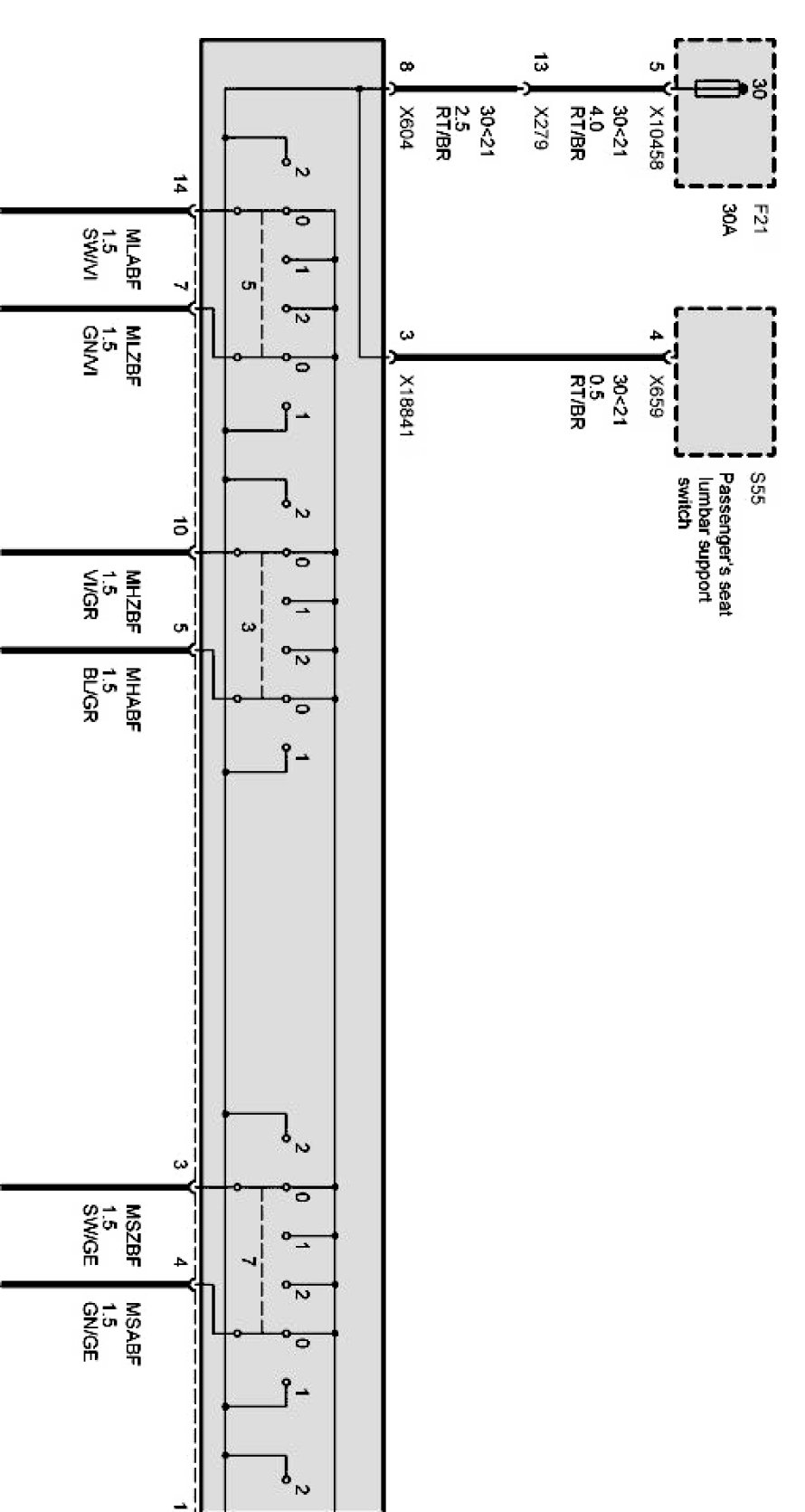

E53 Passenger-seat adjuster without memory Part 3 Of 3:
