Passenger's Seat Adjustment Without Memory (Comfort Seat)

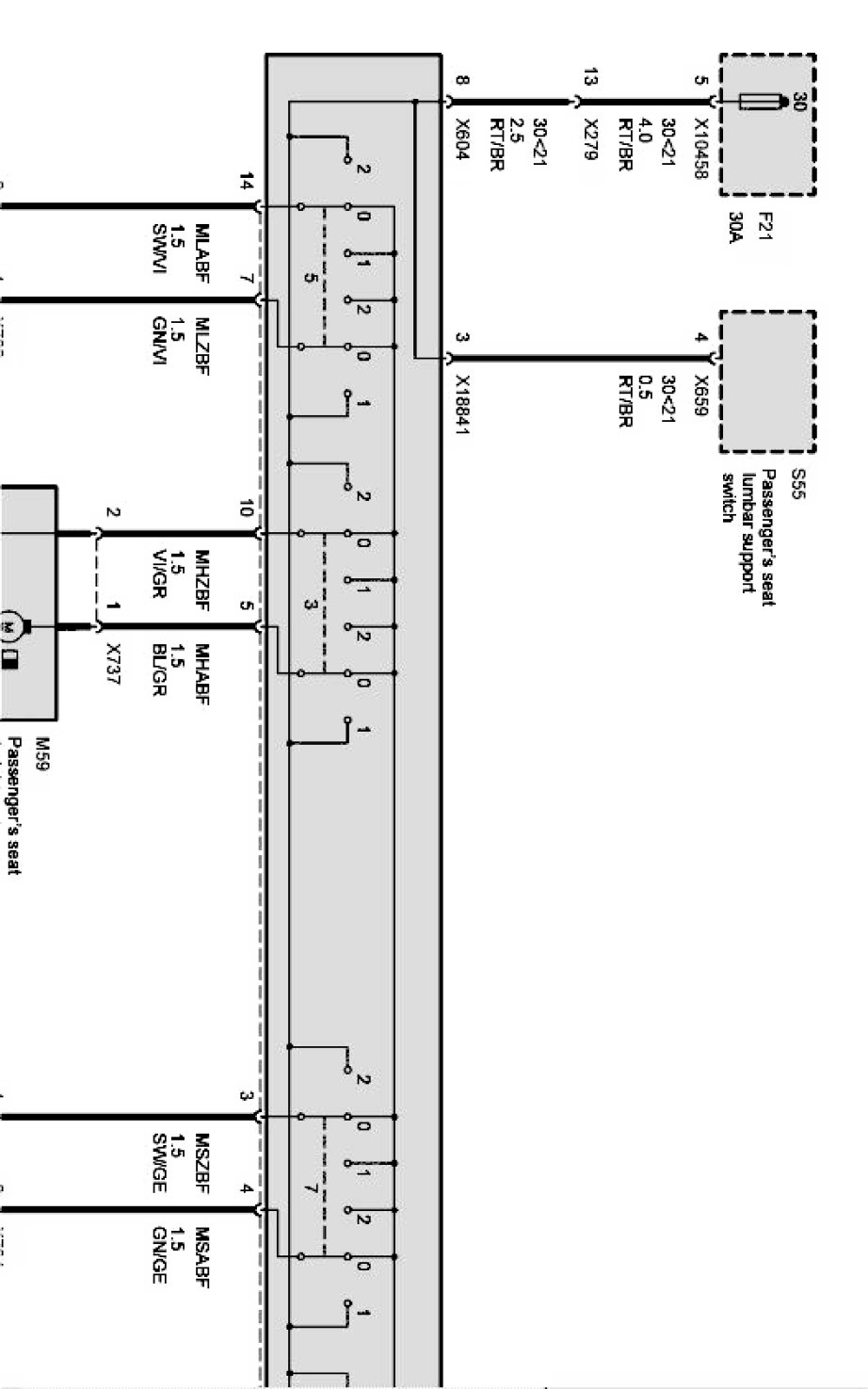

E53 Passenger-seat adjuster without memory Part 1 Of 4:

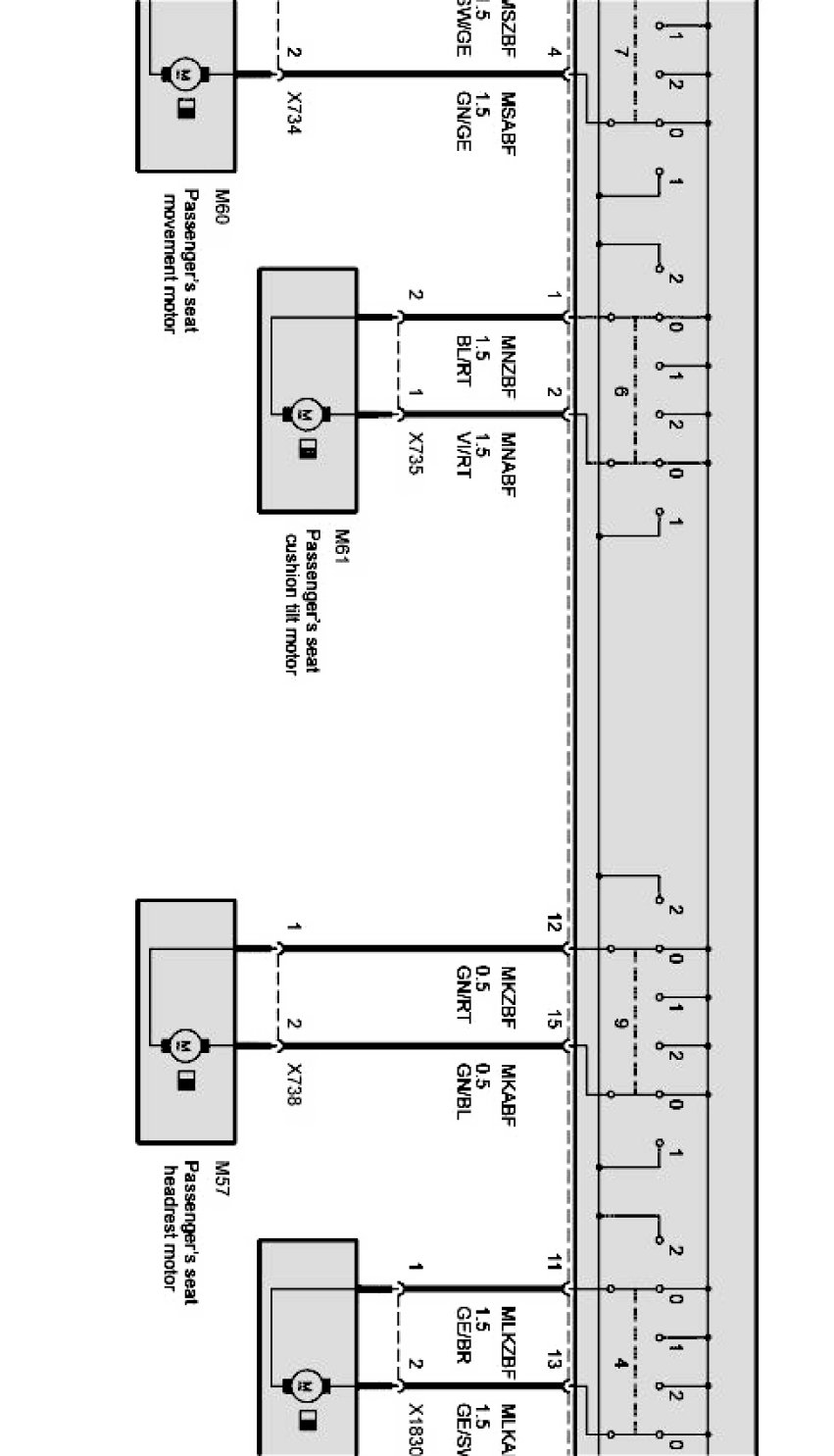

E53 Passenger-seat adjuster without memory Part 2 Of 4:

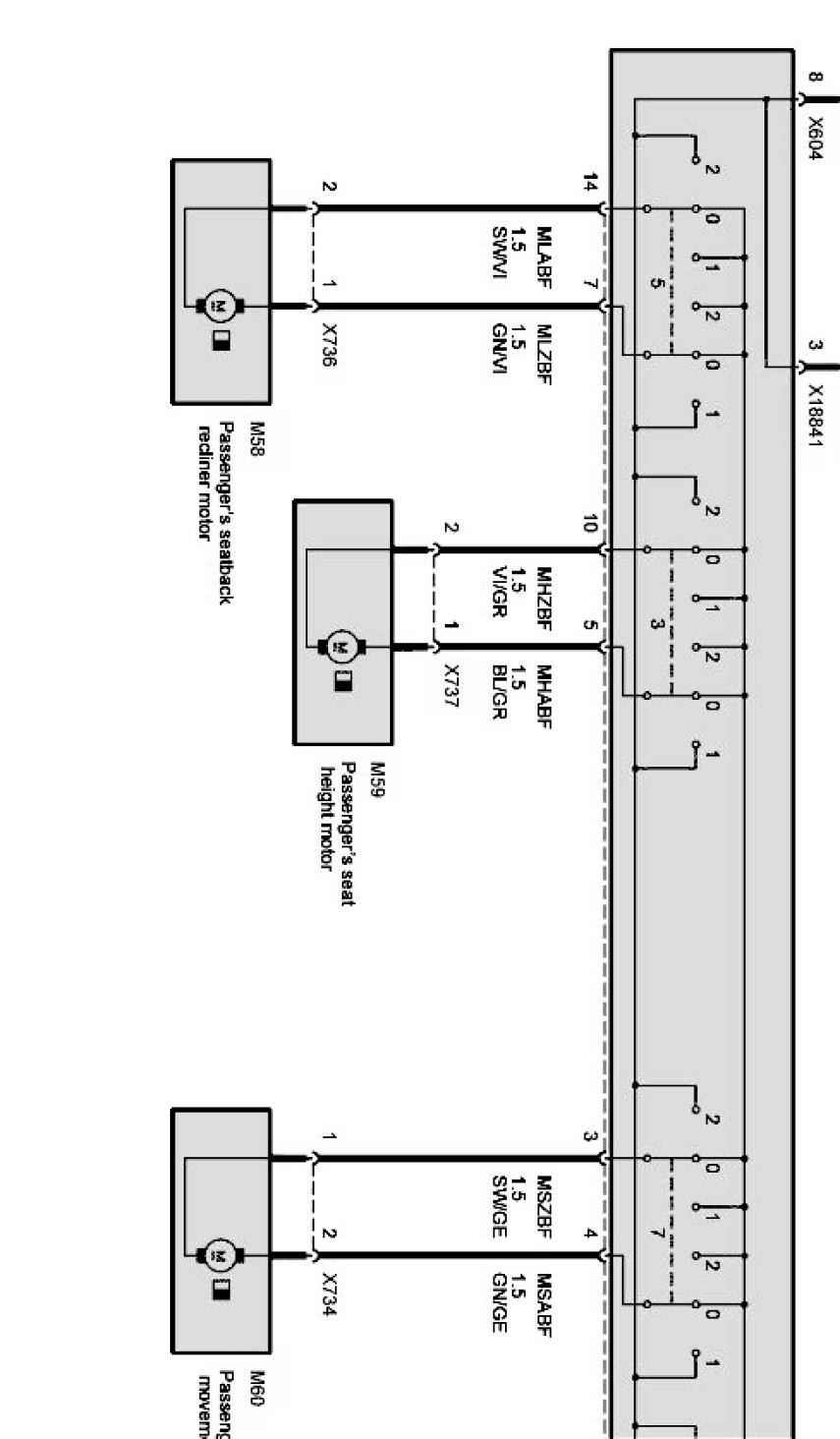

E53 Passenger-seat adjuster without memory Part 3 Of 4:

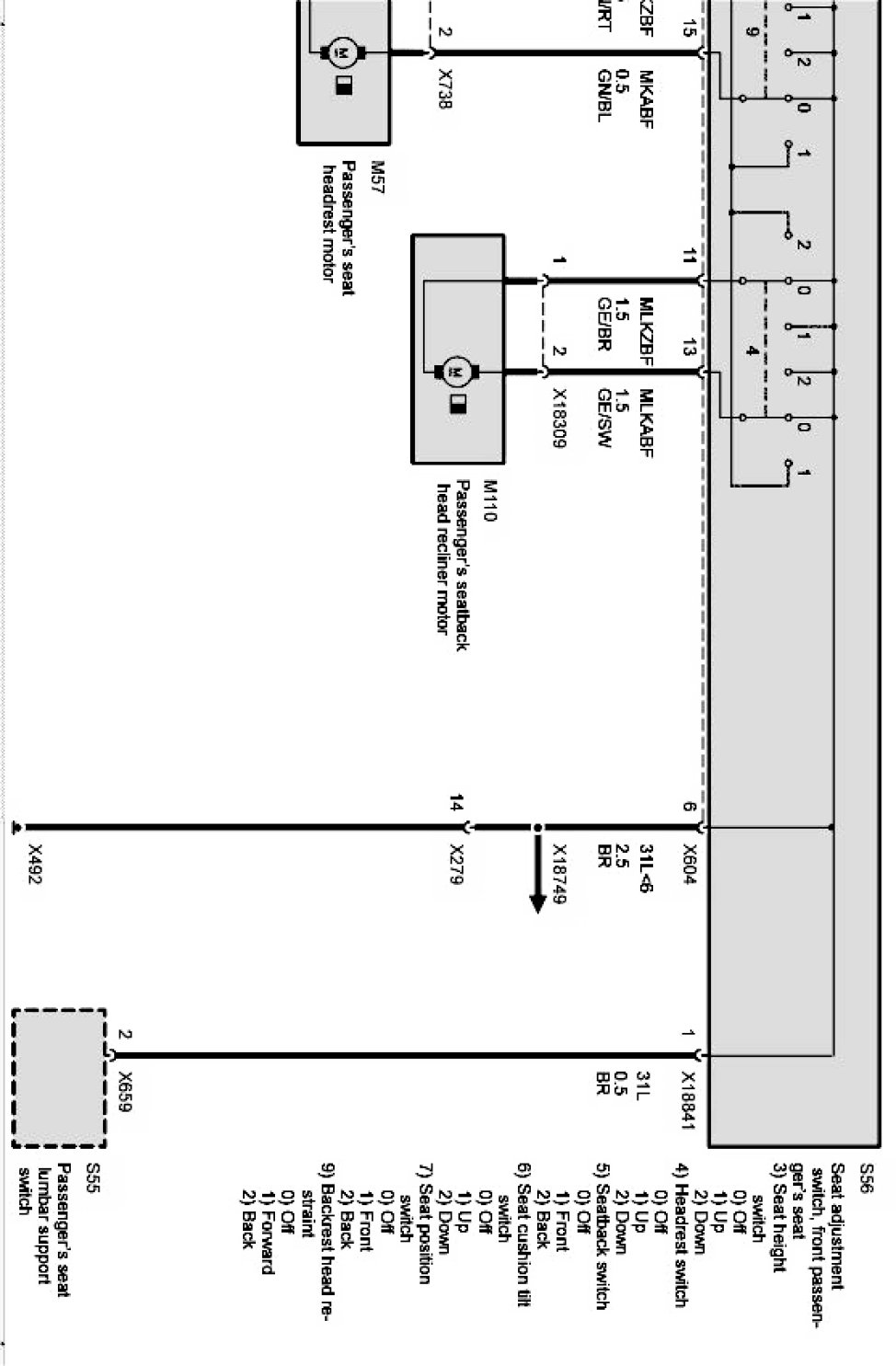

E53 Passenger-seat adjuster without memory Part 4 Of 4:
