FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2006
>>
X5 (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Seat, Steering-Column, Mirror Functions
>>
Lumbar Support, Passenger's Side
Lumbar Support, Passenger's Side

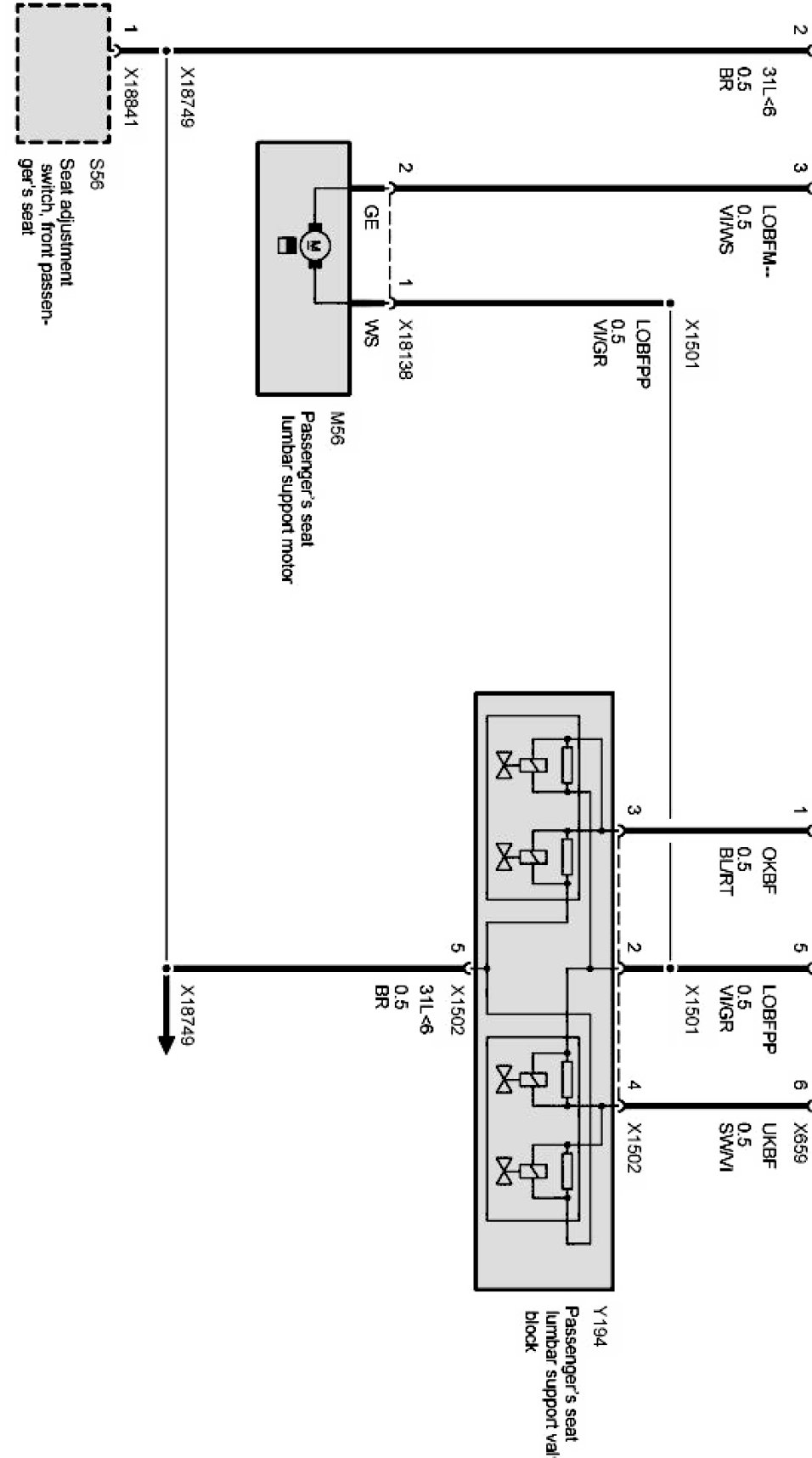

E53 Passenger's lumbar support Part 1 Of 2:

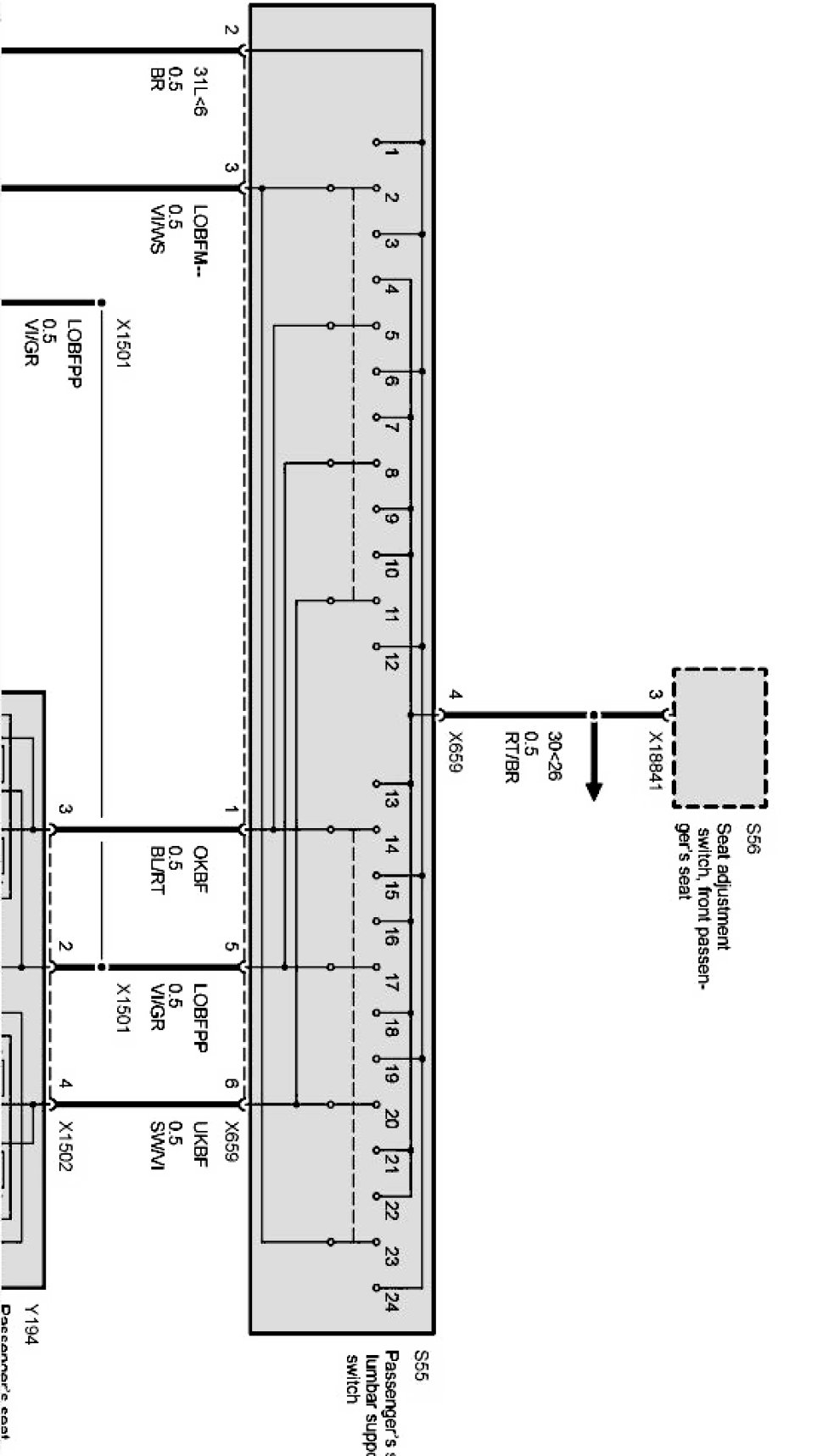

E53 Passenger's lumbar support Part 2 Of 2:
