Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Sunroof (Off-Road Vehicle)

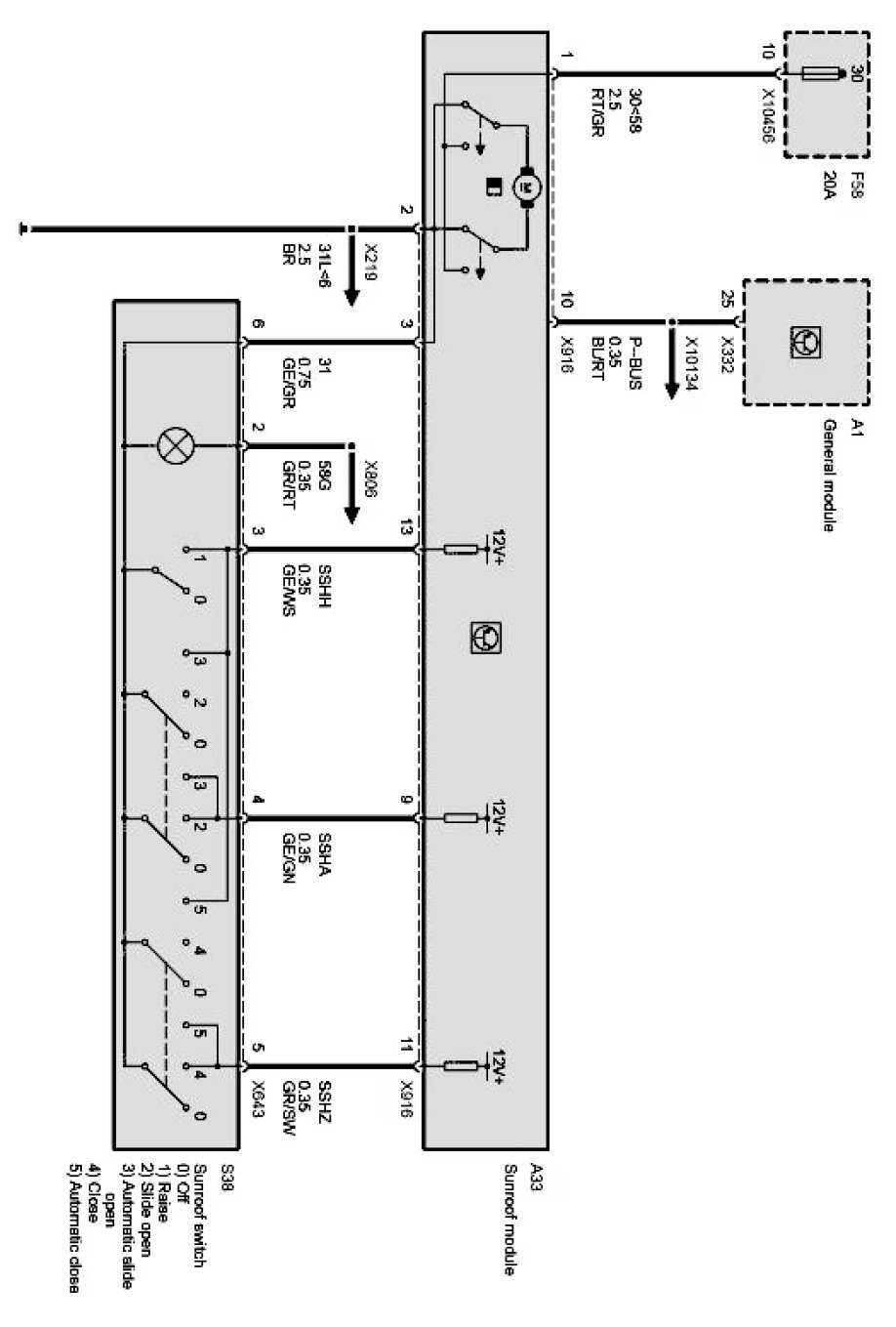

Sunroof (Off-Road Vehicle)

E53 Slide/tilt sunroof Part 1 Of 1:
