Passenger's Door

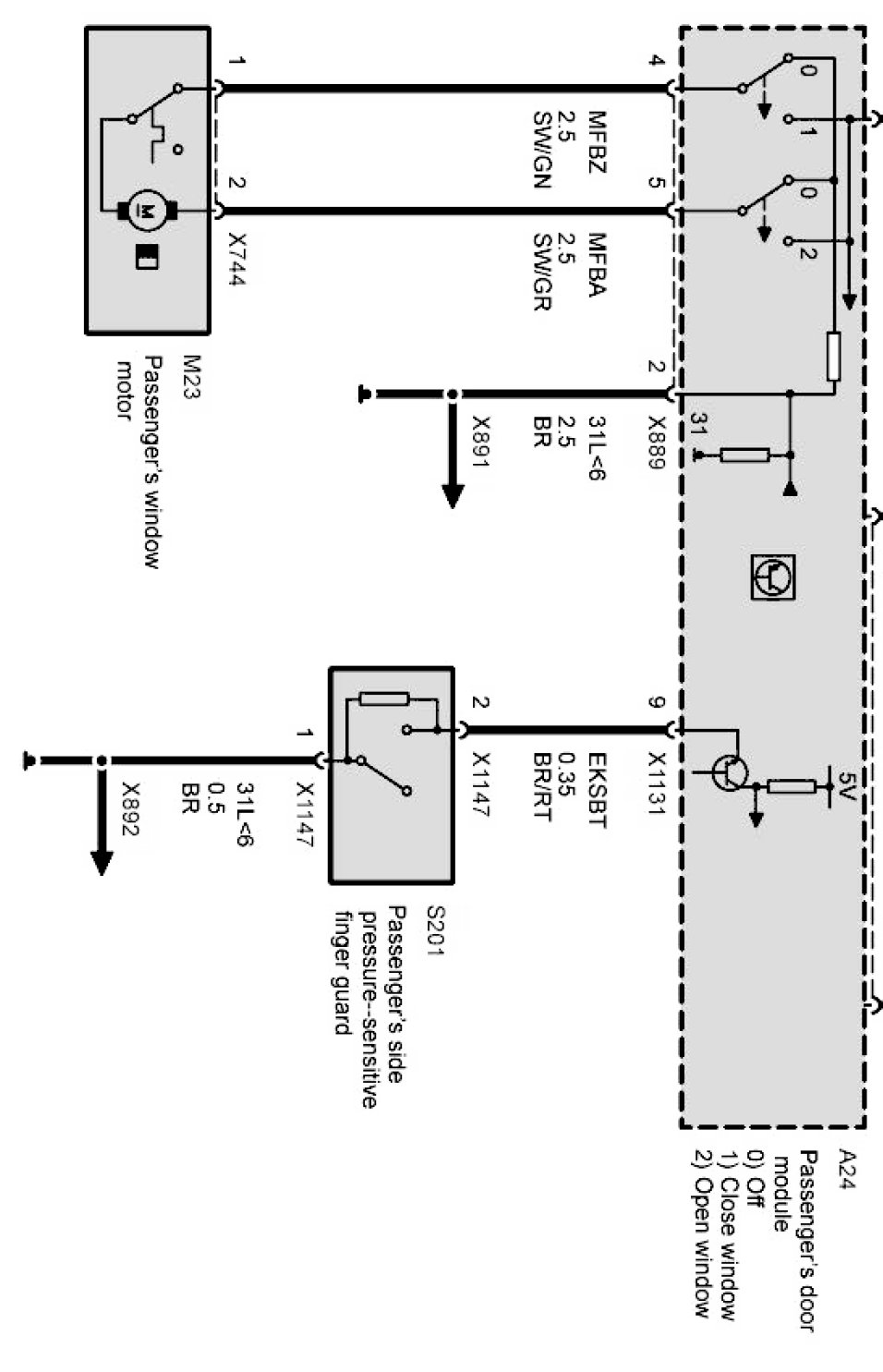

E53 Power window, passenger side Part 1 Of 2:

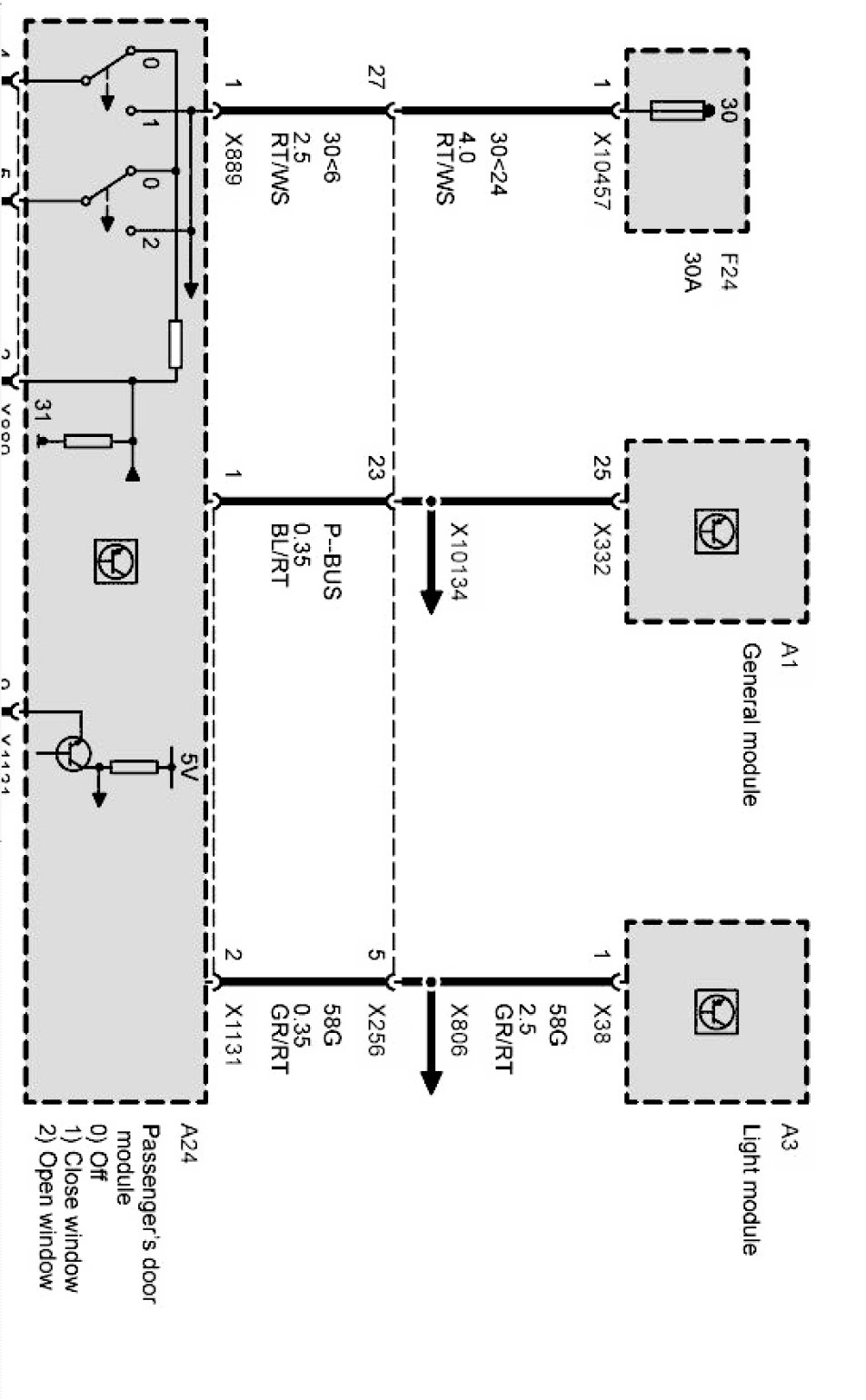

E53 Power window, passenger side Part 2 Of 2:
