Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Interior Movement Detector

Interior Movement Detector

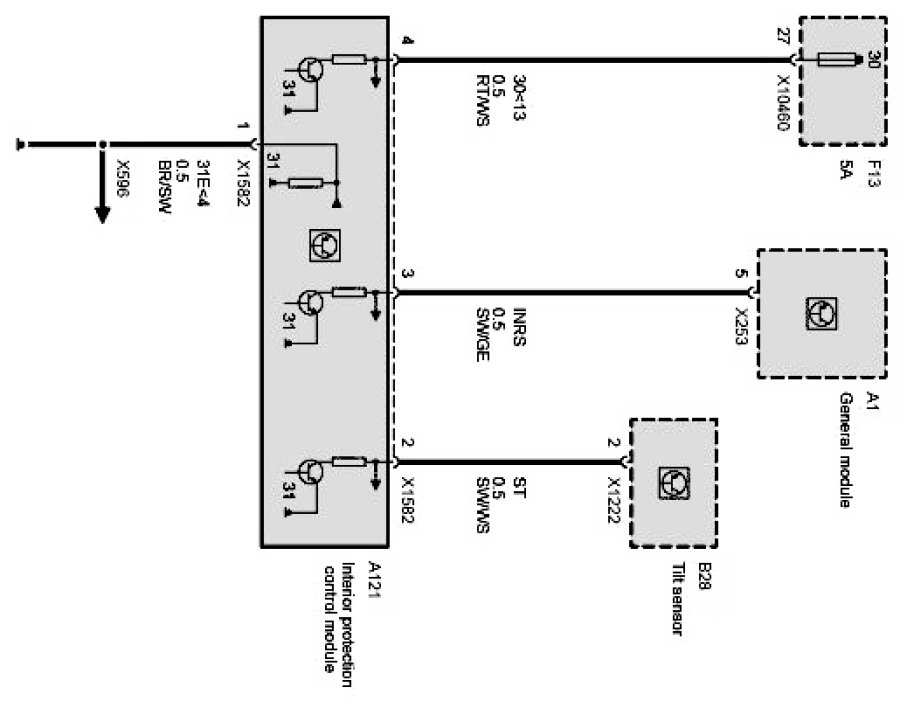

E53 radio-controlled passenger compartment protection Part 1 Of 1:
