Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Electronic Vehicle Immobilization >> Ring Coil 1

Ring Coil 1

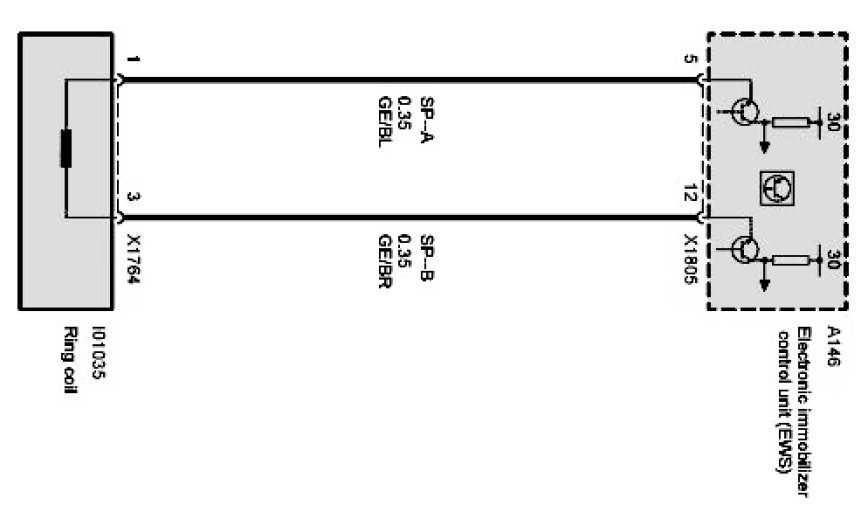

E53 Ring Coil 1 Part 1 Of 1:
