Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Side Light >> Light Switch

Light Switch

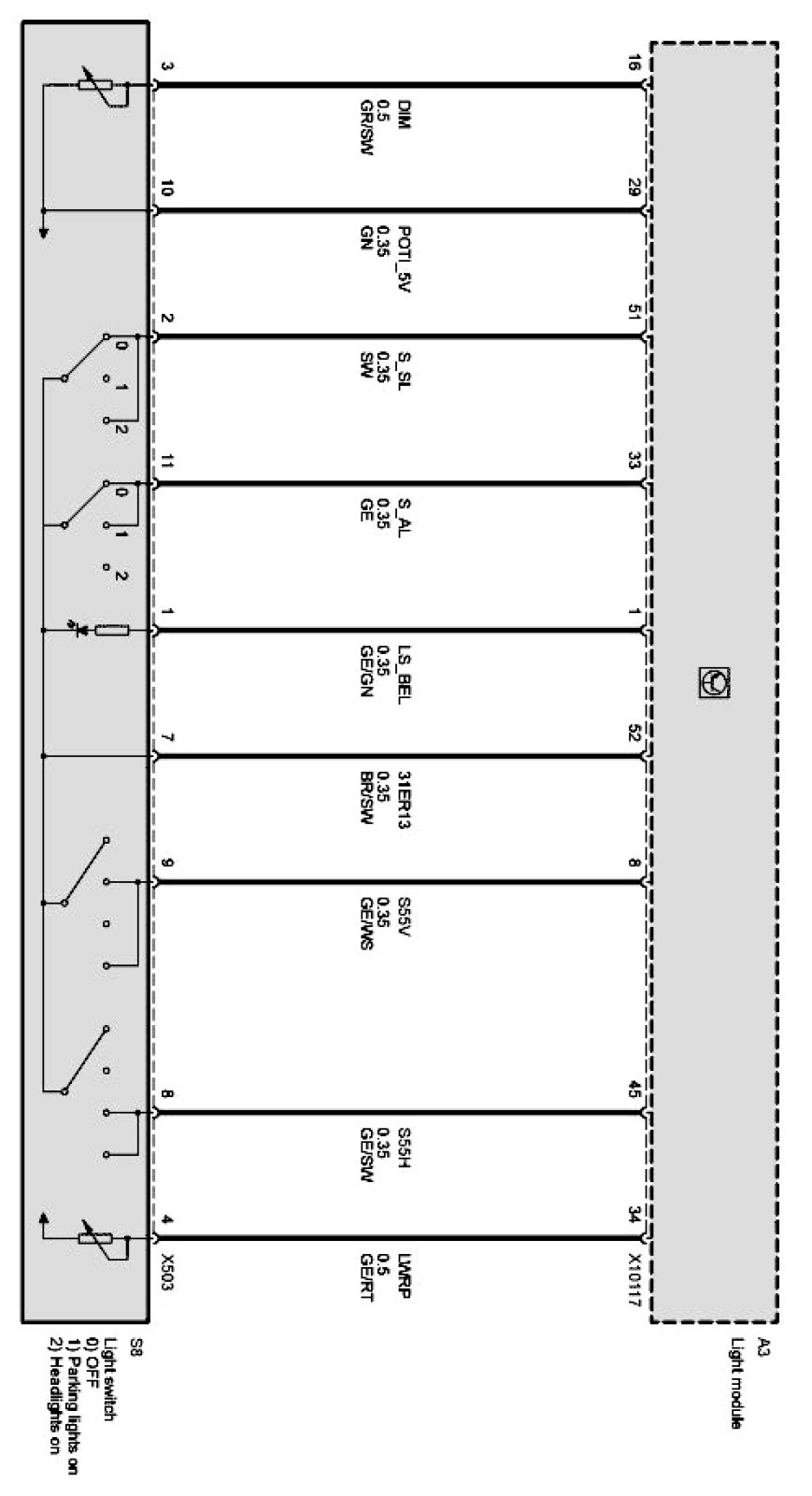

E53 Light switch Part 1 Of 1:
