Home >> BMW >> 2006 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Headlight Widening Adjustment >> Manual Headlight Vertical Aim Control

Manual Headlight Vertical Aim Control

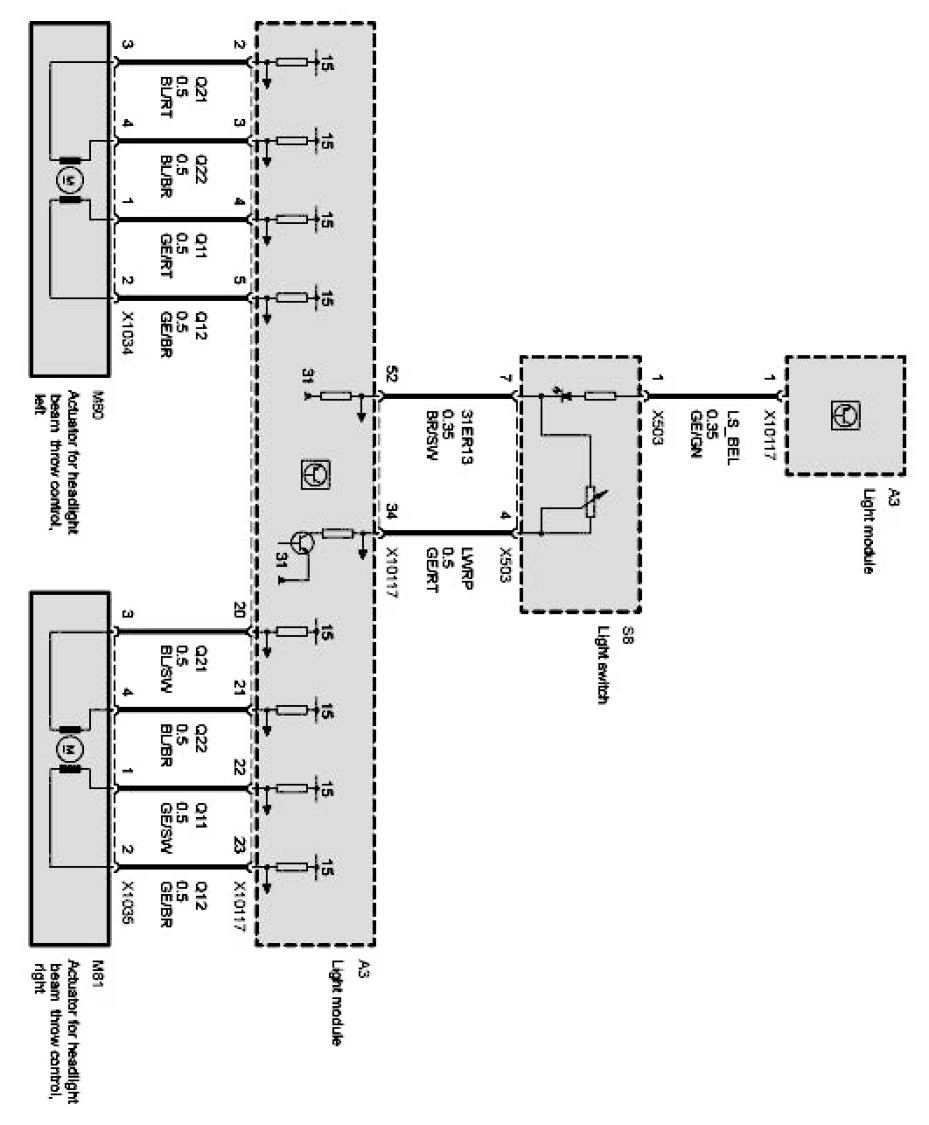

E53 Manual headlight vertical aim control Part 1 Of 1:
