BMW
>>
2006
>>
X5 (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Lighting
>>
Headlight Widening Adjustment
>>
Auto. Headlight Widening (LWR) (Load Sensors) (As of 09/02)
Auto. Headlight Widening (LWR) (Load Sensors) (As of 09/02)

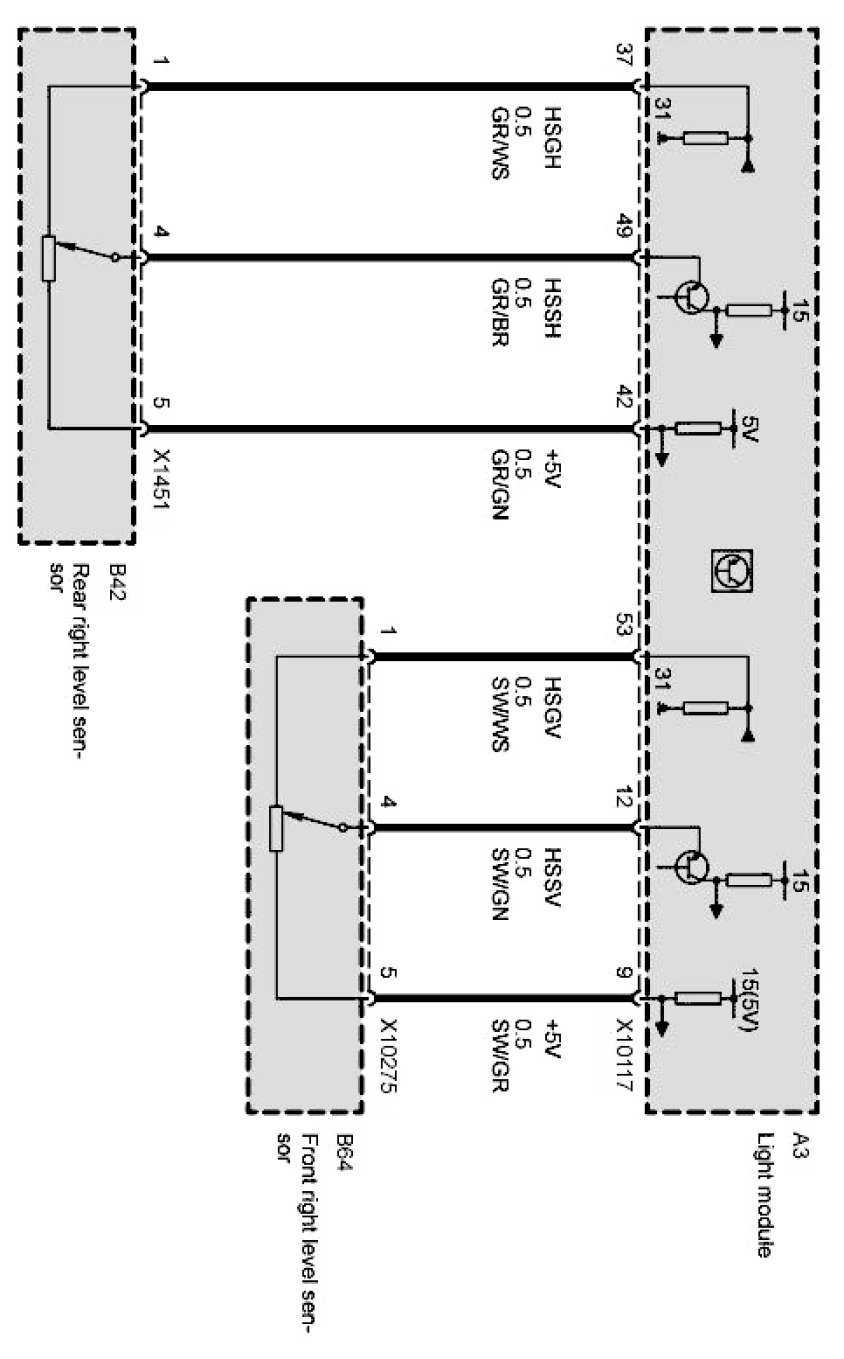

E53 Auto. headlight widening (LWR) (load sensors) Part 1 Of 1:
